M50-3150542R

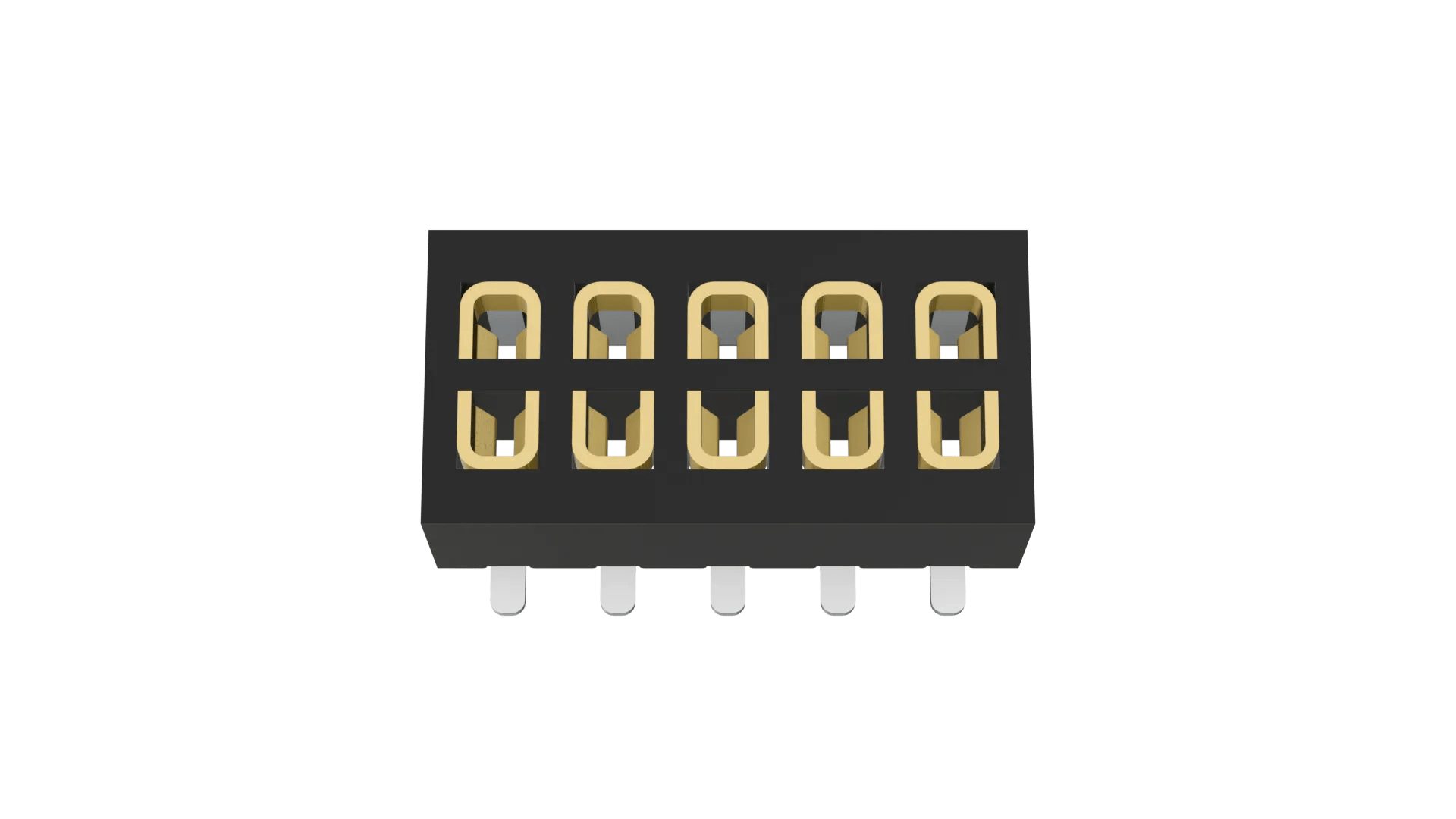

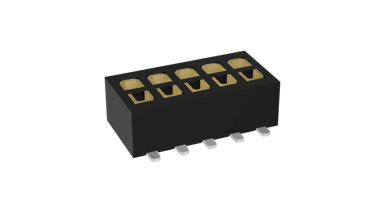

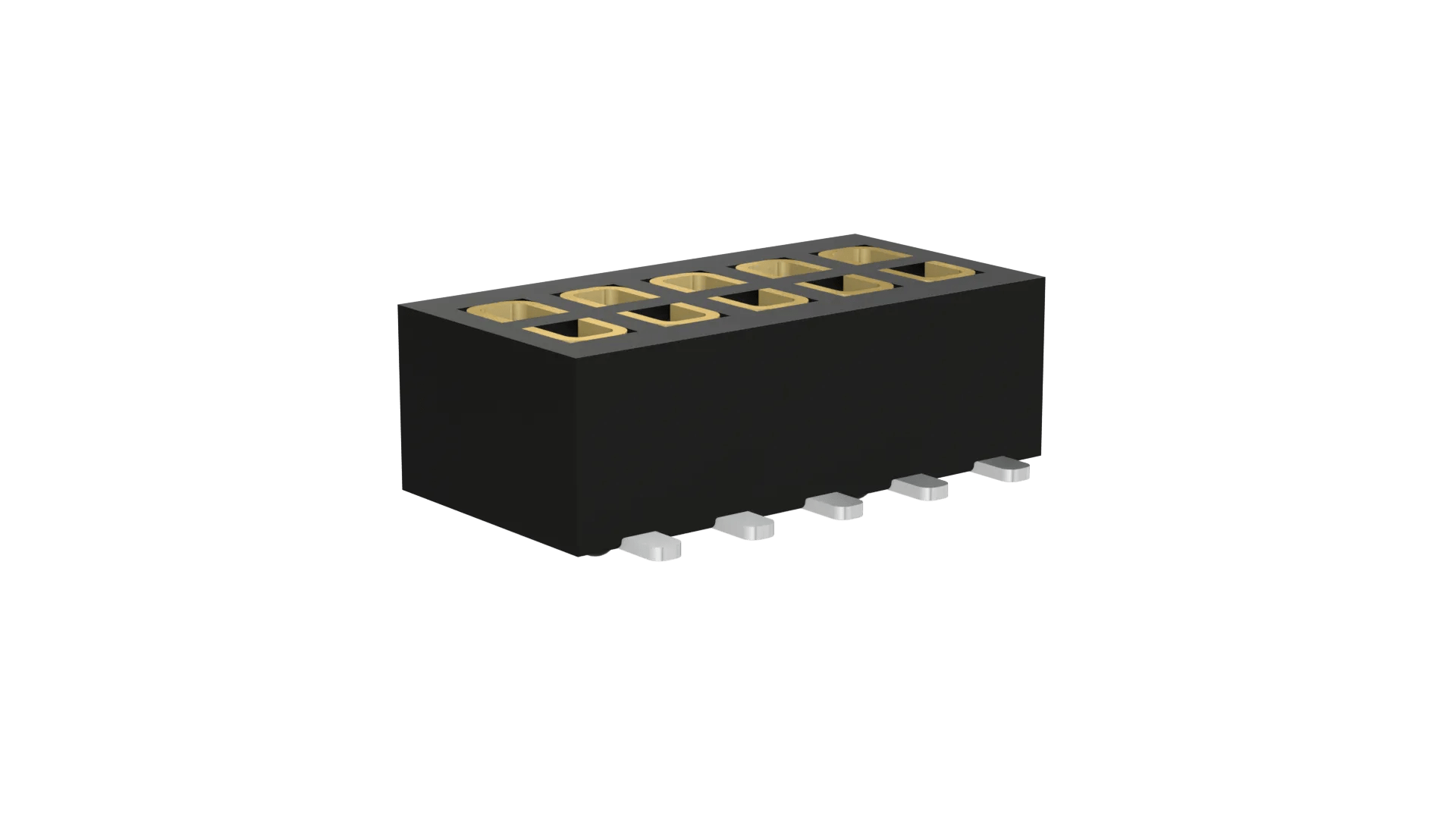

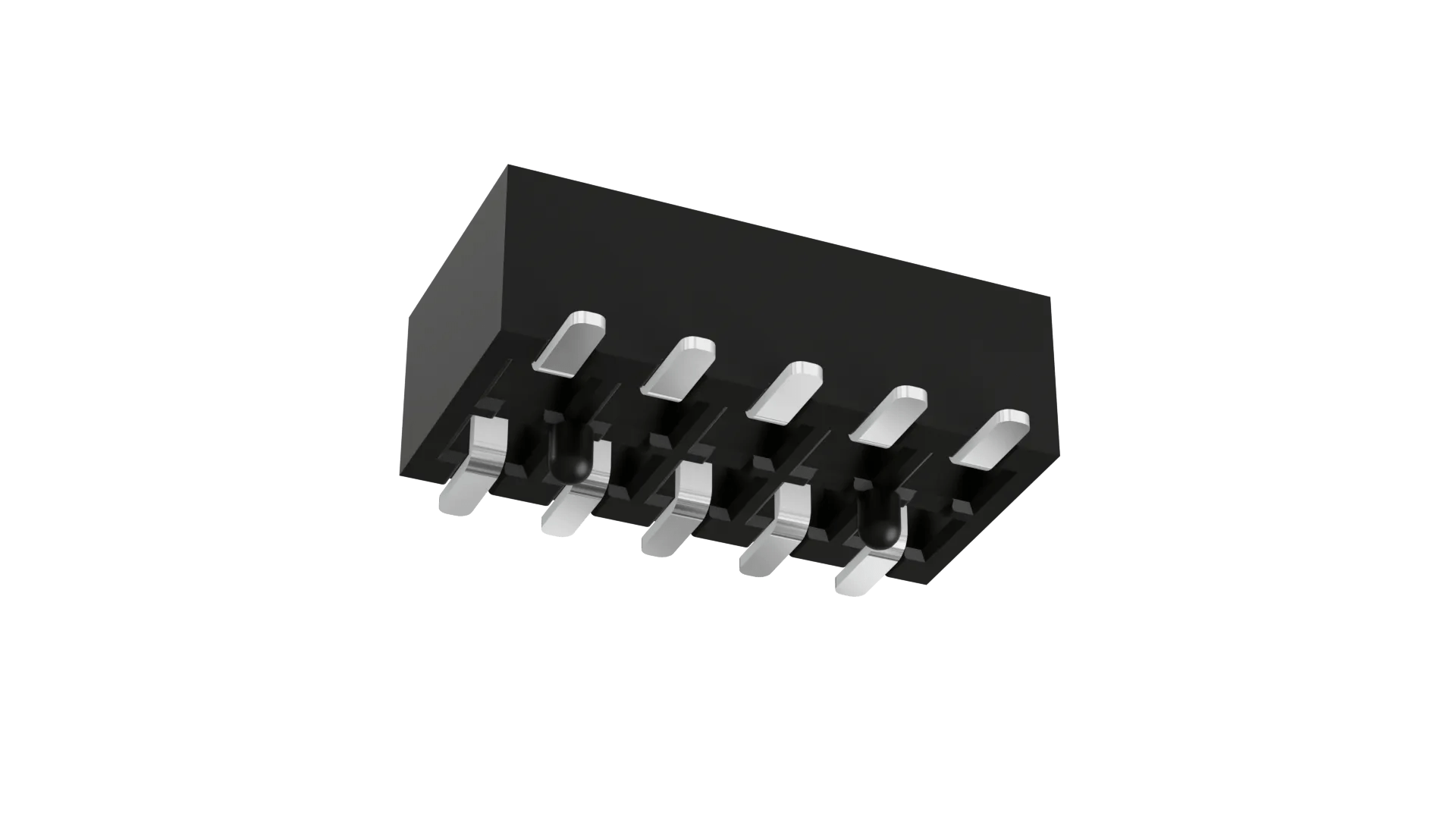

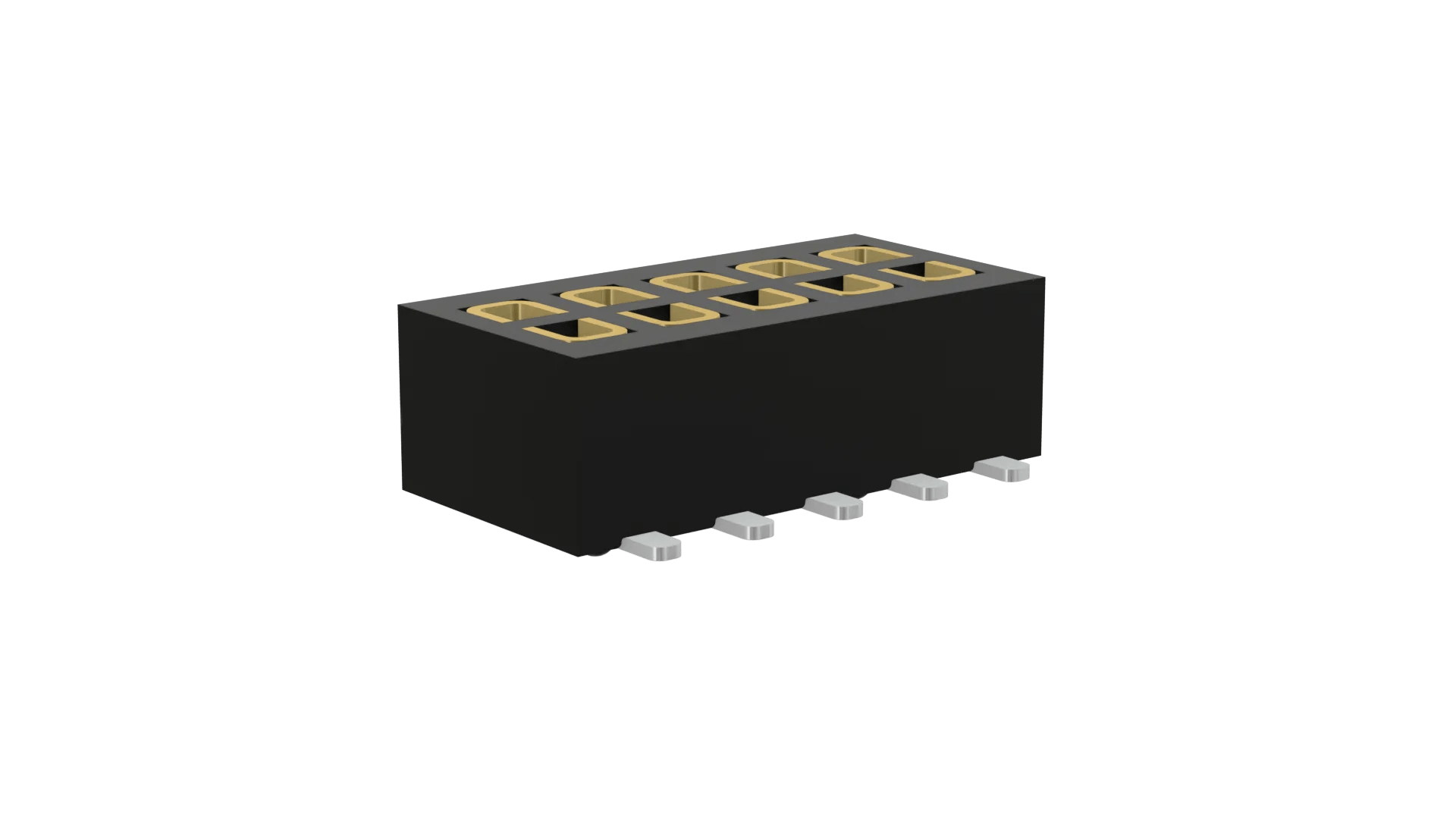

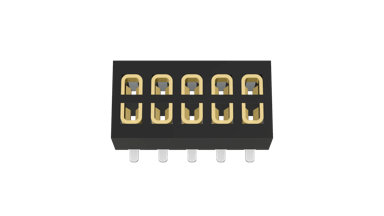

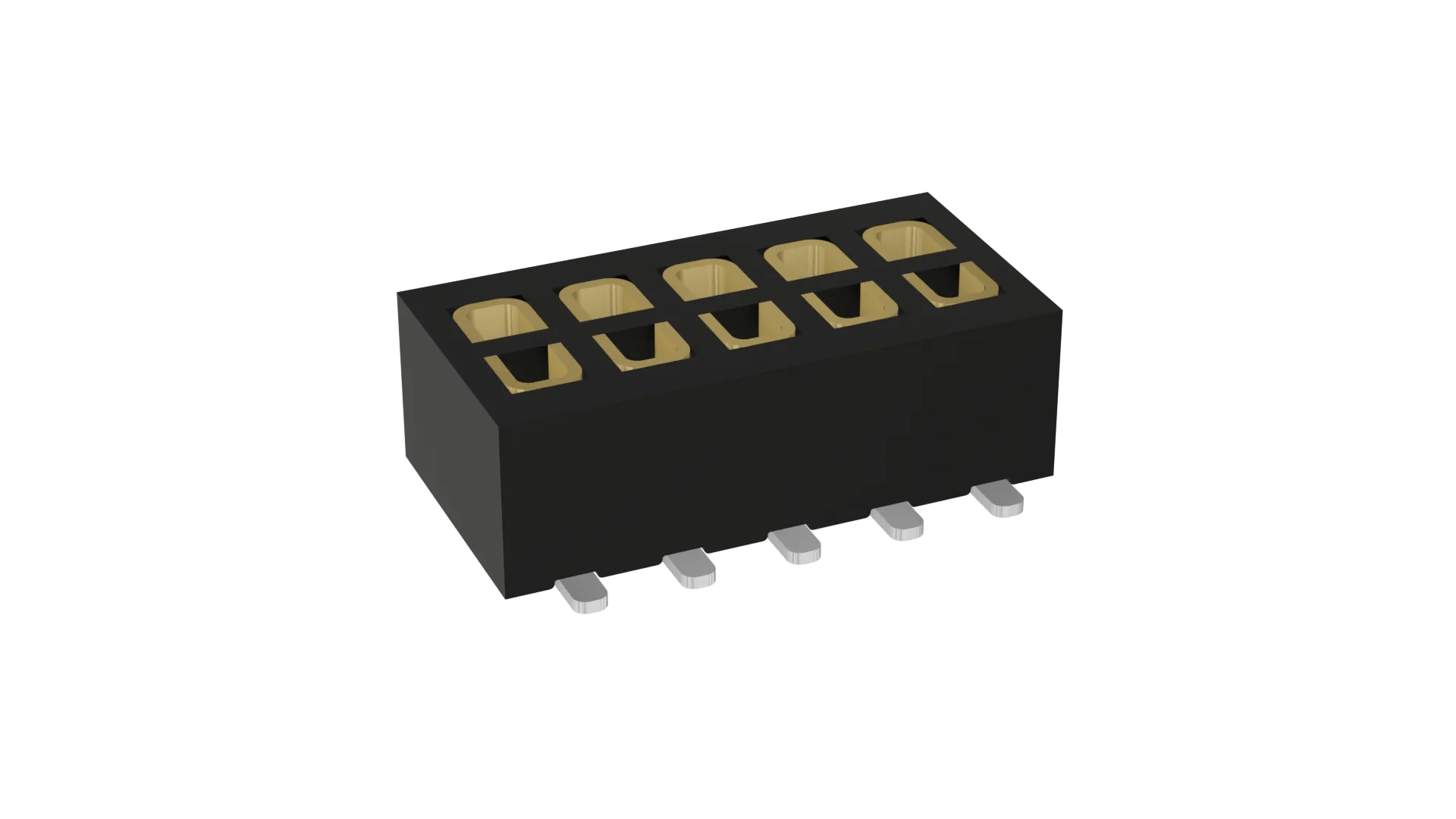

5+5 Pos. Female DIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
24,221 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row Dual (Top or Bottom) Entry Surface Mount, with location pegs – 10 contacts (5+5).
- Gold finish on contact area, Tin finish on termination. Low profile – 2.2mm connector height.
- Packaged in Tape & Reel, with Pick & Place caps.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
10
Entry Style:
Dual Entry (Bottom Entry, Top Entry)
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.159g
Overall Dimensions (L x W x D) in mm:
6.73 x 4.50 x 2.80
Height of Connector above PCB:
2.20mm
Mating Profiles:
