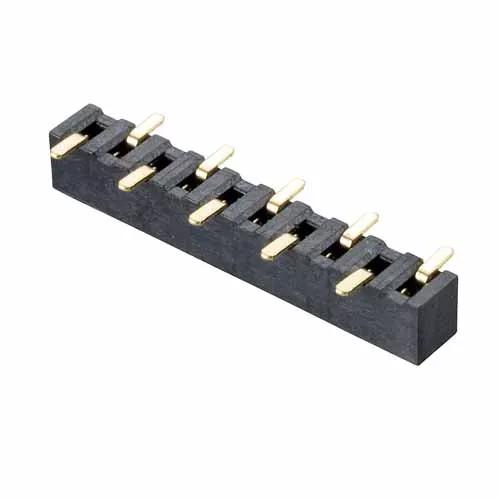

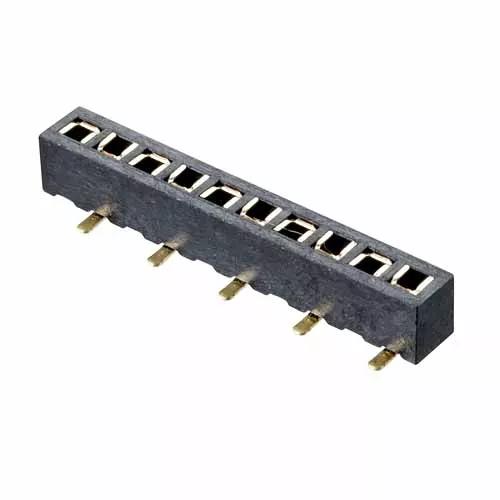

M50-3131045

1.27mm (0.05") Pitch SIL Vertical SMT Socket Assembly, 2.1mm high, gold, 10 contacts


1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Single Row Surface Mount, 2.1mm connector height - 10 contacts.

  • Gold finish on contact area and termination. No location pegs.

  • Packaged in tubes.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Dual Entry (Bottom Entry, Top Entry)

  • Mating Pin Size:

    0.4mm square

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    No

  • Number of Signal Contacts:

    10

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 9T

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    0.094g

  • Dimensions:

    13.10 x 3.10 x 2.10

  • Height of Connector above PCB:

    2.10mm

Downloads

    Product Information

  • Catalog page - Archer M50 Mating Profiles

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)

  • Product Training Module - Overview Guide to the Harwin Archer range

  • Technical Documentation

  • Technical Drawing / Datasheet - M50-313.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M50-3131045R

  • RoHS - M50-3131045

  • Material composition for M50-313 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
