M50-3130845R

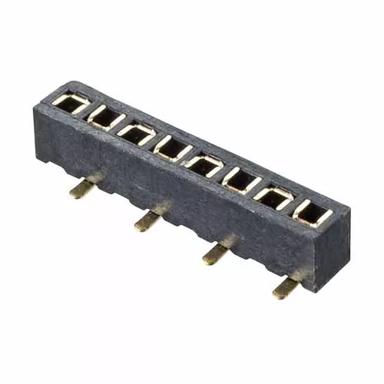

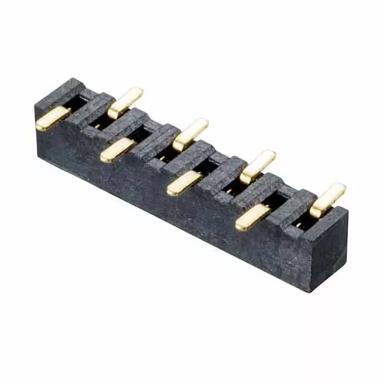

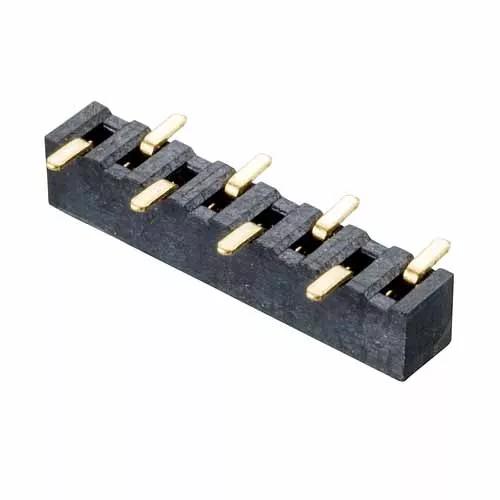

8 Pos. Female SIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description
- Single Row Surface Mount, 2.1mm connector height – 8 contacts.
- Gold finish on contact area and termination. No location pegs.
- Packaged in Tape & Reel, with Pick & Place caps.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
8
Entry Style:
Dual Entry (Bottom Entry, Top Entry)
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.125g
Overall Dimensions (L x W x D) in mm:
10.56 x 3.10 x 2.10
Height of Connector above PCB:
2.10mm
Mating Profiles:
