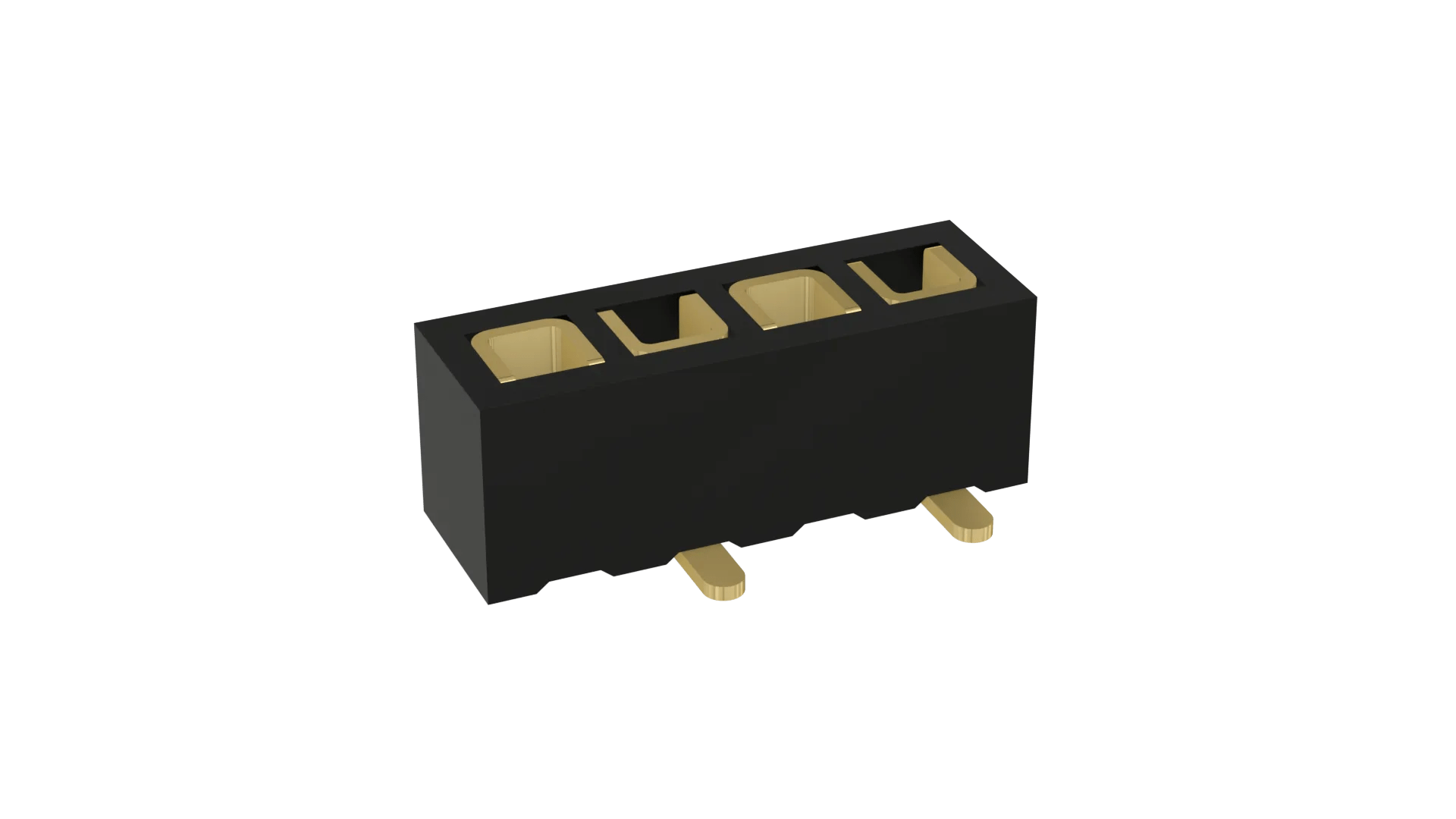

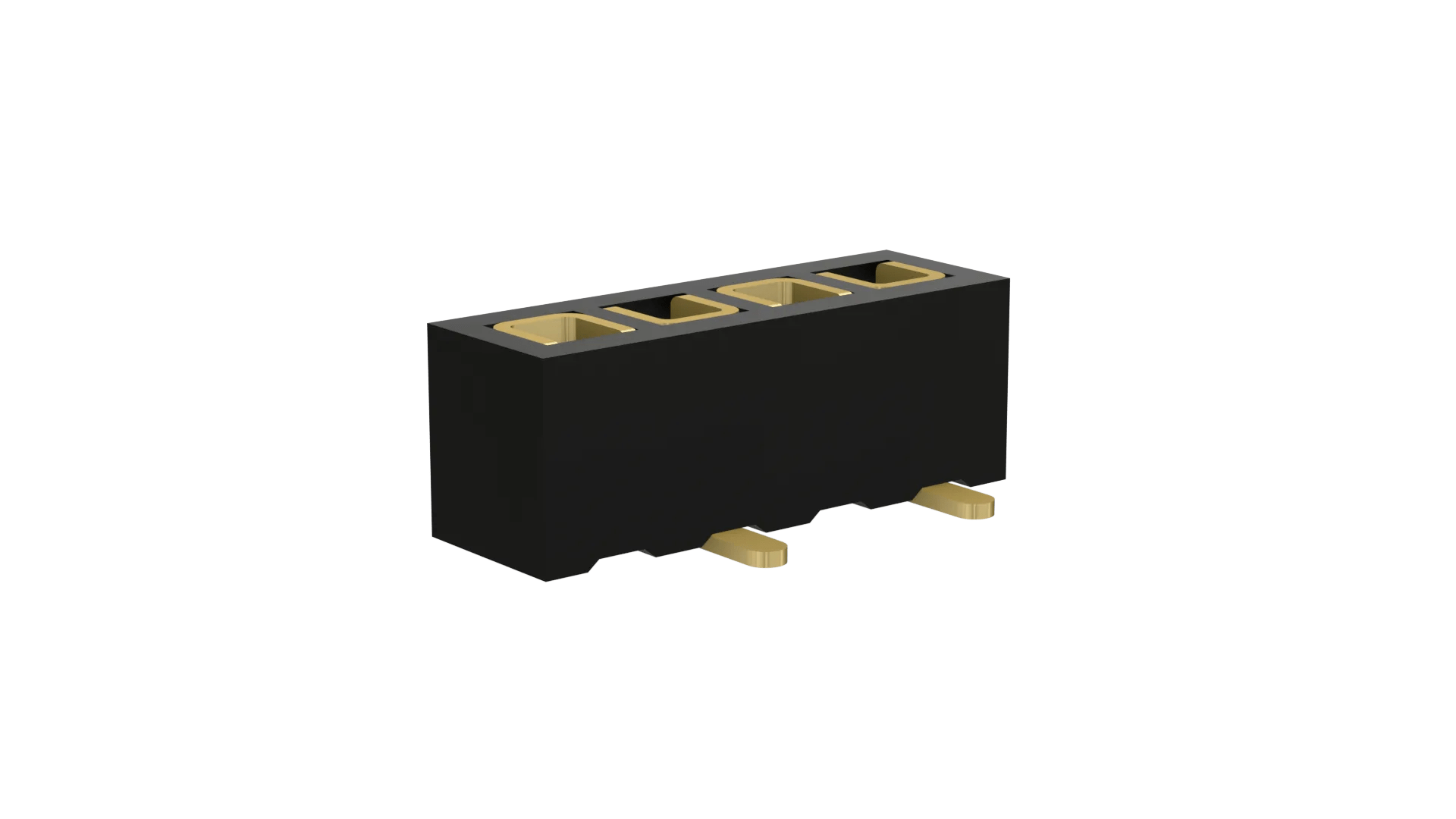

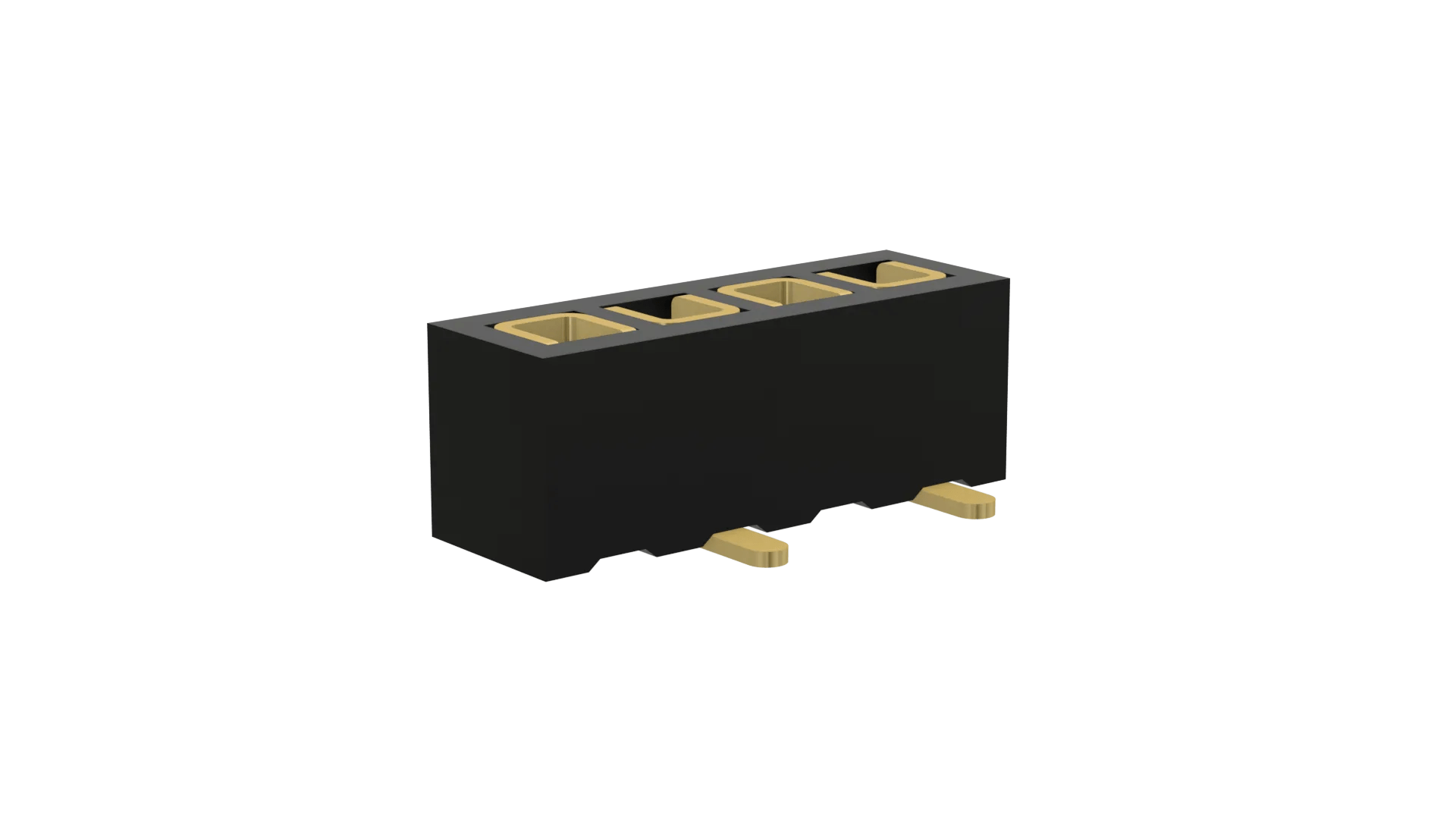

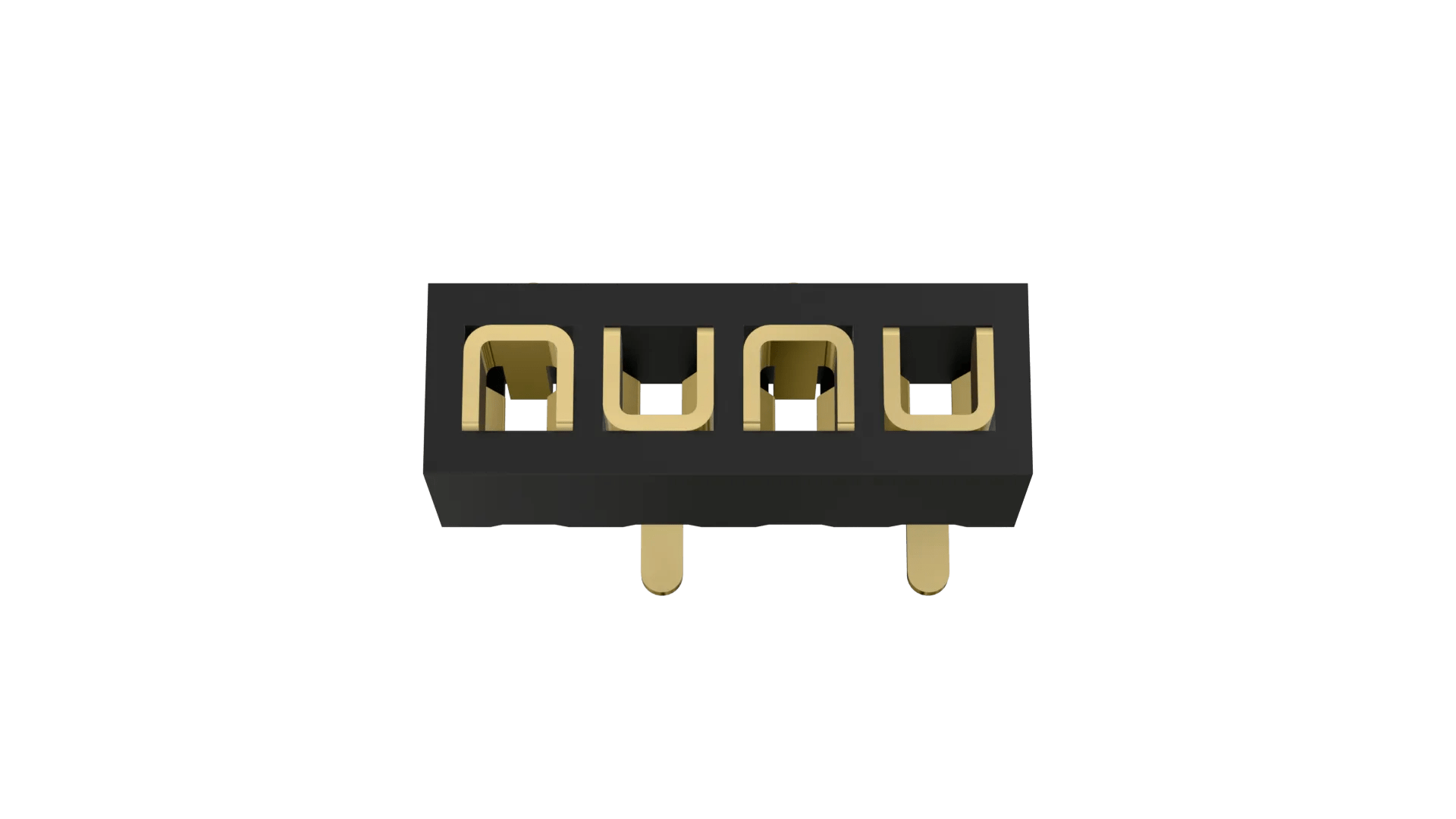

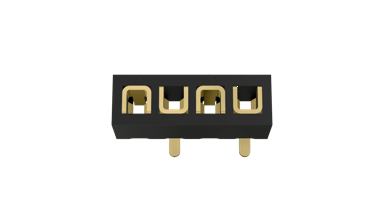

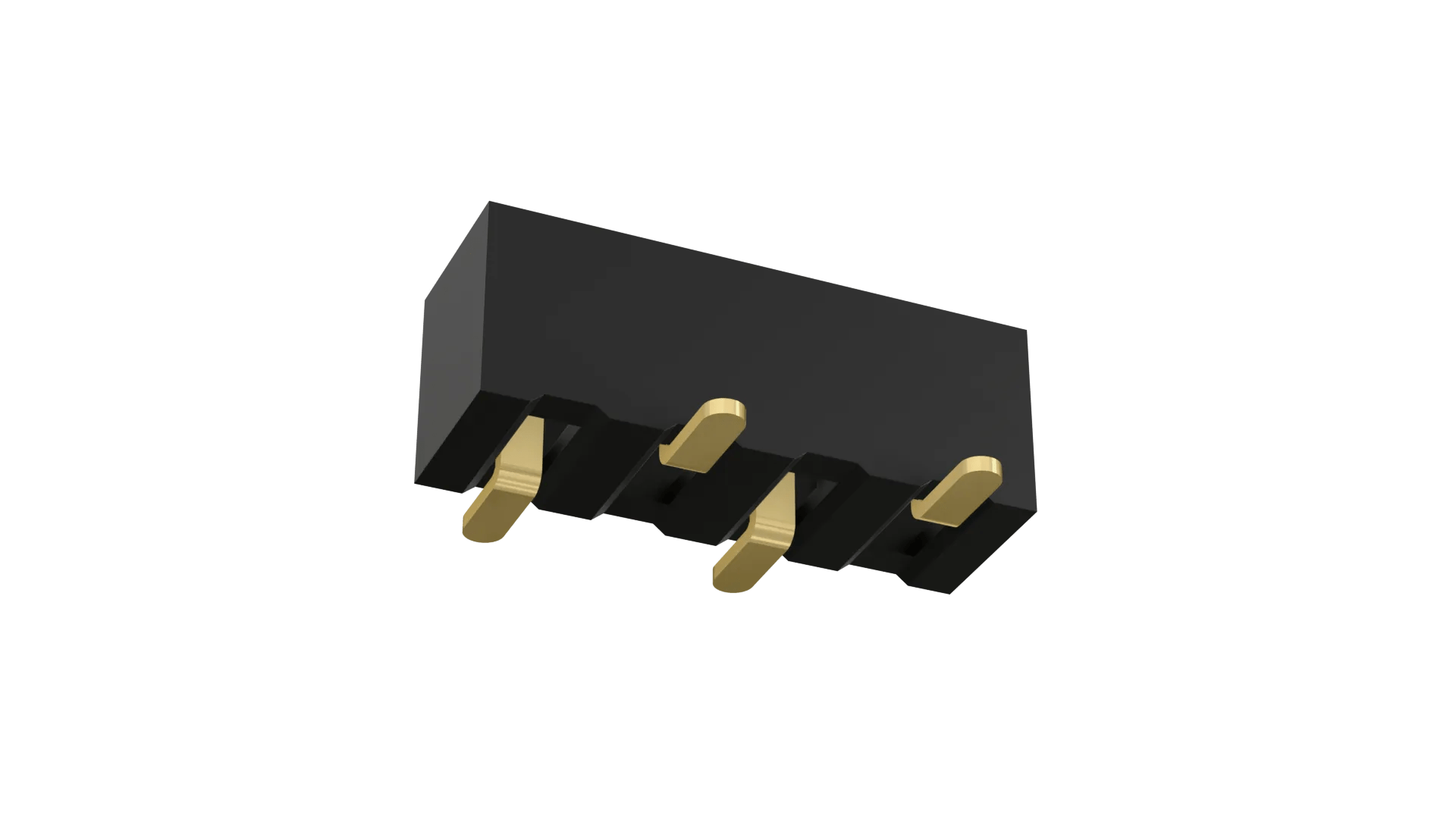

4 Pos. Female SIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Single Row Surface Mount, 2.1mm connector height – 4 contacts.
- Gold finish on contact area and termination. No location pegs.
- Packaged in Tape & Reel, with Pick & Place caps.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
5.48 x 3.10 x 2.10
Height of Connector above PCB:
7,662 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
M50-3130445 CAD Model (ZIP file containing STP and IGES)Download
