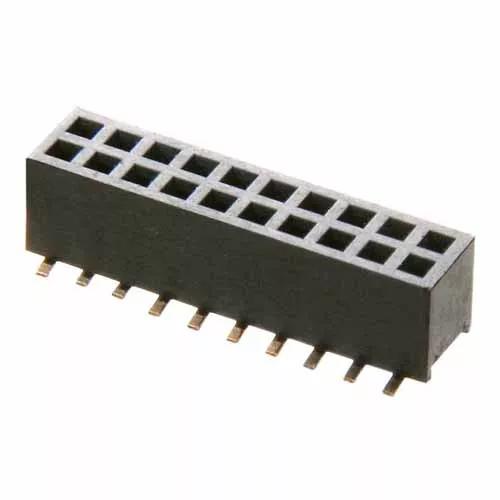

M50-3122045
20+20 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
81 in stock Check availability
8 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row Surface Mount, 3.6mm connector height – 40 contacts (20+20).
- Gold finish on contact area and termination. No location pegs.
- Packaged in tubes.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
40
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.486g
Overall Dimensions (L x W x D) in mm:
25.75 x 4.50 x 3.60
Height of Connector above PCB:
3.60mm
Mating Profiles:
Frequently Asked Questions Ask a Question
What is the part number with a pick and place facility?
We do not currently offer the M50-3122045R product – the R suffix is for our tape and reeled products with added pick and place caps. Please contact your applicable Regional Sales Office with your volume requirements and project timescales to confirm if we can assist with adding this size.
