Home > M50-3121545
Active Product

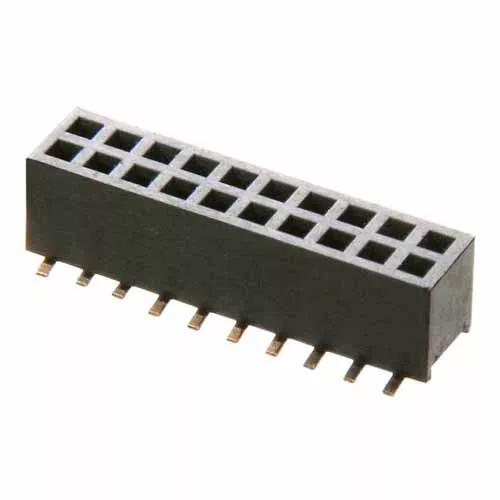

M50-3121545

15+15 Pos. Female DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Add to Favorites

1,023 in stock   Check availability

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row Surface Mount, 3.6mm connector height – 30 contacts (15+15).
  • Gold finish on contact area and termination. No location pegs.
  • Packaged in tubes.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

30

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.365g

Overall Dimensions (L x W x D) in mm:

19.40 x 4.50 x 3.60

Height of Connector above PCB:

3.60mm

Frequently Asked Questions Ask a Question

Do you offer the M50-3121545 in Tape & Reel?

We do not currently offer the M50-3121545R product – the R suffix is for our tape and reeled products. Please contact your applicable Regional Sales Office with your volume requirements and project timescales to confirm if we can assist with adding this size.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
