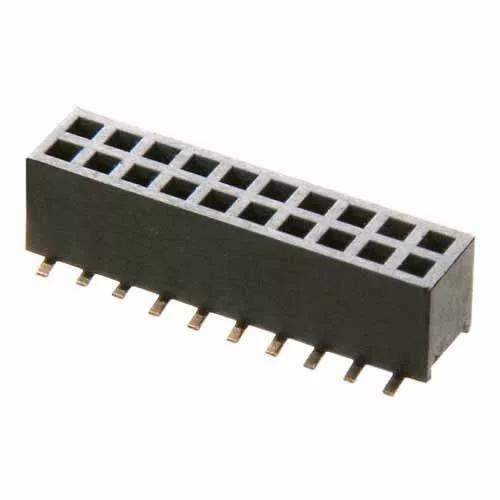

M50-3121045
10+10 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
1,195 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row Surface Mount, 3.6mm connector height – 20 contacts (10+10).
- Gold finish on contact area and termination. No location pegs.
- Packaged in tubes.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
20
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.243g
Overall Dimensions (L x W x D) in mm:
13.05 x 4.50 x 3.60
Height of Connector above PCB:
3.60mm
Mating Profiles:
