Active Product

M50-3120745

7+7 Pos. Female DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Order Sample

Add to Favorites

1,285 in stock Check availability

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row Surface Mount, 3.6mm connector height – 14 contacts (7+7).
Gold finish on contact area and termination. No location pegs.
Packaged in tubes.

M50-3120745 - 7+7 Pos. Female DIL Vertical SMT Conn.

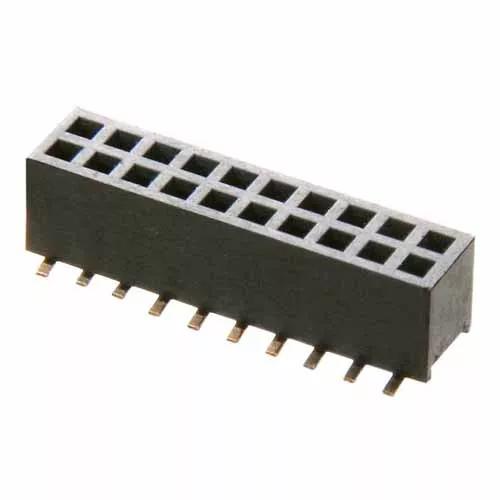

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.17g

Overall Dimensions (L x W x D) in mm:

9.24 x 4.50 x 3.60

Height of Connector above PCB:

3.60mm

Mating Profiles:

Catalog page - Archer M50 Mating Profiles
