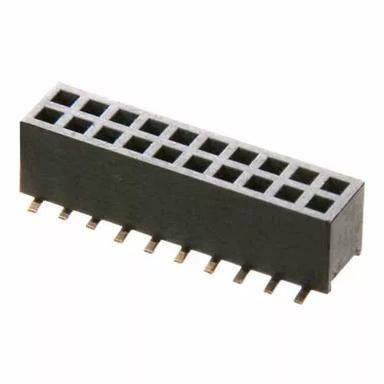

6+6 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row Surface Mount, 3.6mm connector height – 12 contacts (6+6).
- Gold finish on contact area and termination. No location pegs.
- Packaged in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
7.97 x 4.50 x 3.60
Height of Connector above PCB:
3,176 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
M50-3120645 CAD Model (ZIP file containing STP and IGES)Download
