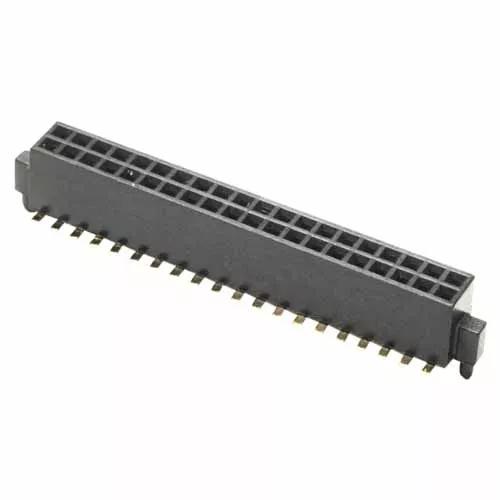

25+25 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row Surface Mount, Dual (Top and Bottom) Entry with location pegs, 3.6mm connector height – 50 contacts (25+25).
- Gold finish on contact area, Tin finish on termination.
- Packaged in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
34.85 x 4.60 x 5.50
Height of Connector above PCB:
Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Why does the recommended PCB layout have relief holes under each socket location when it is an SMT connector?
These “relief” holes are for the mating male pins – either for when it is used for bottom entry, or if the male pins used are longer than the height of the connector. If neither of these situations apply to your application, then you do not need the holes under each socket in your PCB design. You will only need the two holes for the location pegs.
M50-3112542 CAD Model (ZIP file containing STP and IGES)Download
