M50-3100545

M50-3100545

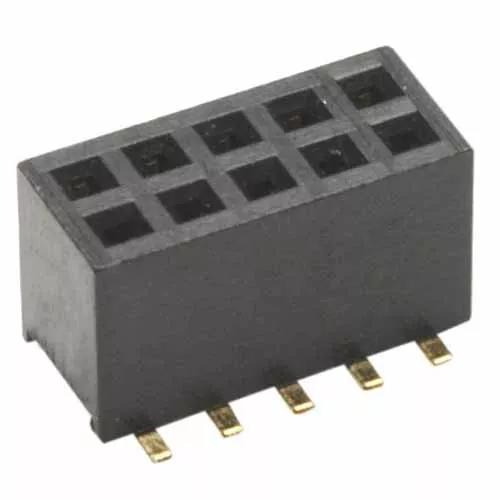

5+5 Pos. Female DIL Vertical SMT Conn.

BBi

Traceparts account required

M50-3100545

5+5 Pos. Female DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row Surface Mount (no location pegs), 4.6mm connector height - 10 contacts (5+5).

  • Gold finish on contact area and termination.

  • Packaged in tubes.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Top Entry

  • Mating Pin Size:

    0.4mm square

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    No

  • Number of Signal Contacts:

    10

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    LCP

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    0.176g

  • Dimensions:

    6.70 x 4.80 x 4.60

  • Height of Connector above PCB:

    4.60mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M50-310.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

    • Product Information

  • Catalog page - Archer M50 Mating Profiles

  • Product Training Module - Overview Guide to the Harwin Archer range

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M50-310 series

  • RoHS - M50-3100545
