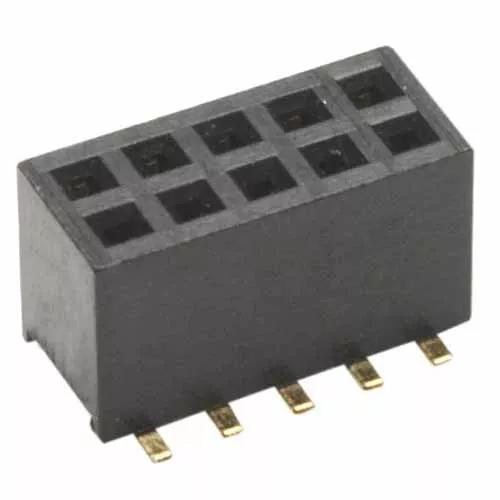

M50-3100345
3+3 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Loading… Check availability
9 similar products View products
Traceparts account required
Product Description
- Double Row Surface Mount (no location pegs), 4.6mm connector height – 6 contacts (3+3).
- Gold finish on contact area and termination.
- Packaged in tubes.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
6
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.106g
Overall Dimensions (L x W x D) in mm:
4.16 x 4.80 x 4.60
Height of Connector above PCB:
4.60mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Is the only difference between part numbers M50-3100345 & M50-3120345 that the former (M50-3100345) is 1mm taller than the other?
The 1mm height difference is the most significant difference, but it is not the only difference. There are also small differences in the span across the SMT tails, and the location of the contact point below the top of the connector. Consult the Technical Drawings for M50-310 and M50-312 to see the full details.
Was this answer useful?
