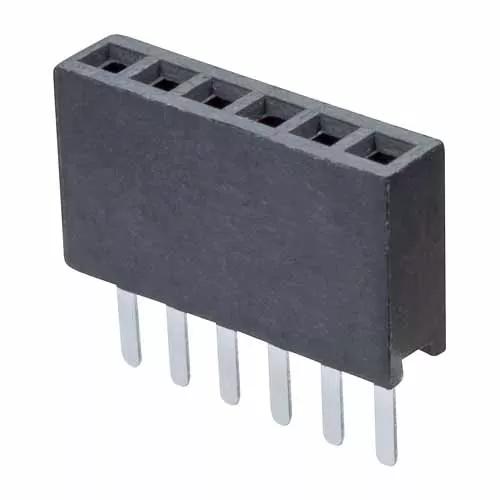

6 Pos. Female SIL Vertical Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
12,712 in stock Check availability
3 similiar products View products
- Single Row, 2.4mm PC Tail, 4.4mm connector height – 6 contacts.
- Gold finish on contact area, Tin finish on termination.
- Packaged in tubes.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
8.02 x 1.80 x 6.80
Height of Connector above PCB:
Length of Throughboard Tail:
