Home > M50-3030442
Active Product

M50-3030442

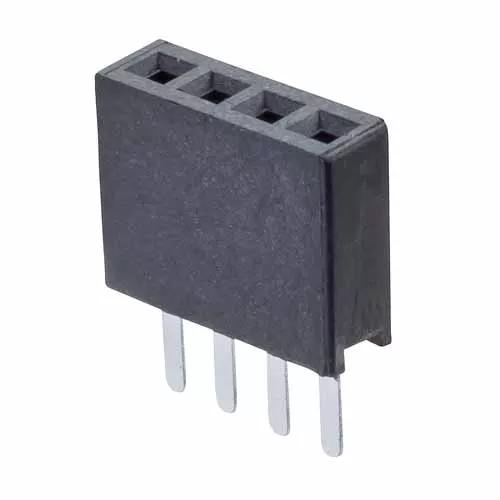

4 Pos. Female SIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Add to Favorites

10,599 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single Row, 2.4mm PC Tail, 4.4mm connector height – 4 contacts.
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in tubes.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

4

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.088g

Overall Dimensions (L x W x D) in mm:

5.48 x 1.80 x 6.80

Height of Connector above PCB:

4.40mm

Length of Throughboard Tail:

2.40mm
