Home > M50-3005045
Active Product

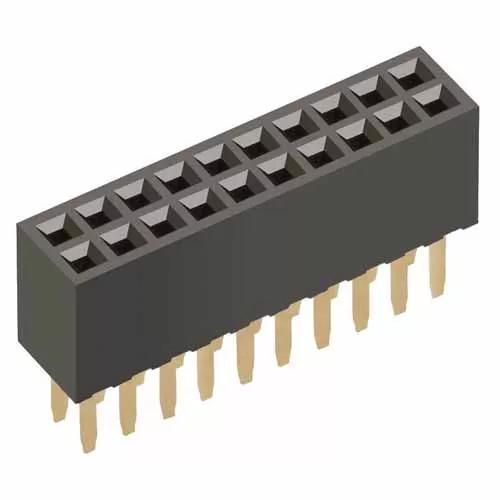

M50-3005045

50+50 Pos. Female DIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

  • Double Row, 2.4mm PC Tail, 4.4mm connector height – 100 contacts (50+50).
  • Gold finish on contact area and termination.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

100

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.77g

Overall Dimensions (L x W x D) in mm:

63.90 x 3.10 x 6.80

Height of Connector above PCB:

4.40mm

Length of Throughboard Tail:

2.40mm

Frequently Asked Questions Ask a Question

What is the gold finish thickness on the contact?

The gold thickness on these connectors is a gold flash, typically 0.03 to 0.10 microns (1.2 to 4 microinches). It is over a nickel undercoat of typically 0.8 to 2.0 microns (30 to 80 microinches).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
