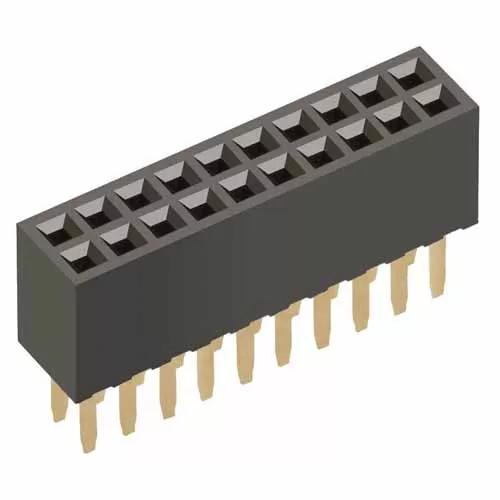

12+12 Pos. Female DIL Vertical Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row, 2.4mm PC Tail, 4.4mm connector height – 24 contacts (12+12).
- Gold finish on contact area and termination.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
15.64 x 3.10 x 6.80
Height of Connector above PCB:
Length of Throughboard Tail:
1,546 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
What is the gold finish thickness on the contact?
The gold thickness on these connectors is a gold flash, typically 0.03 to 0.10 microns (1.2 to 4 microinches). It is over a nickel undercoat of typically 0.8 to 2.0 microns (30 to 80 microinches).
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
