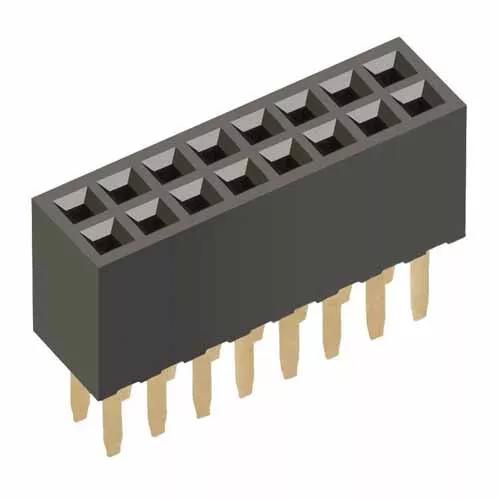

Archer M50 - 1.27mm (0.05") Pitch - DIL Vertical Socket - M50-3000845

1.27mm (0.05") Pitch Commercial/Industrial Connector

  • Double Row, 2.4mm PC Tail, 4.4mm connector height - 16 contacts (8+8).
  • Gold finish on contact area and termination.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Digi-Key Global 482 Buy Now
Farnell Europe 420 Buy Now
Mouser Electronics Inc Global 356 Buy Now
TTI Inc USA 54
  • Specification

  • Related products

  • Materials

  • Dimensions

Product Type: 1.27mm (0.05") Pitch Commercial/Industrial Connector
Contact Pitch: 1.27mm (0.05")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: 0.4mm square
Current Rating: 1A
Operating Temperature: -40°C to +105°C
Maximum Soldering Temperature: 260°C for 10 seconds
Product Family: M50-300
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.283g
Packaging Style: Tube
Number of Rows: 2
Total Number of Contacts: 16
Height of Connector above PCB: 4.4mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: No
Length of PC Tail: 2.4mm
Entry Style: Top Entry
Mating Profiles/Heights

Mating Products
