  • M50-3000545 - Archer M50 (1.27mm Pitch) DIL Vertical Socket Throughboard Connector

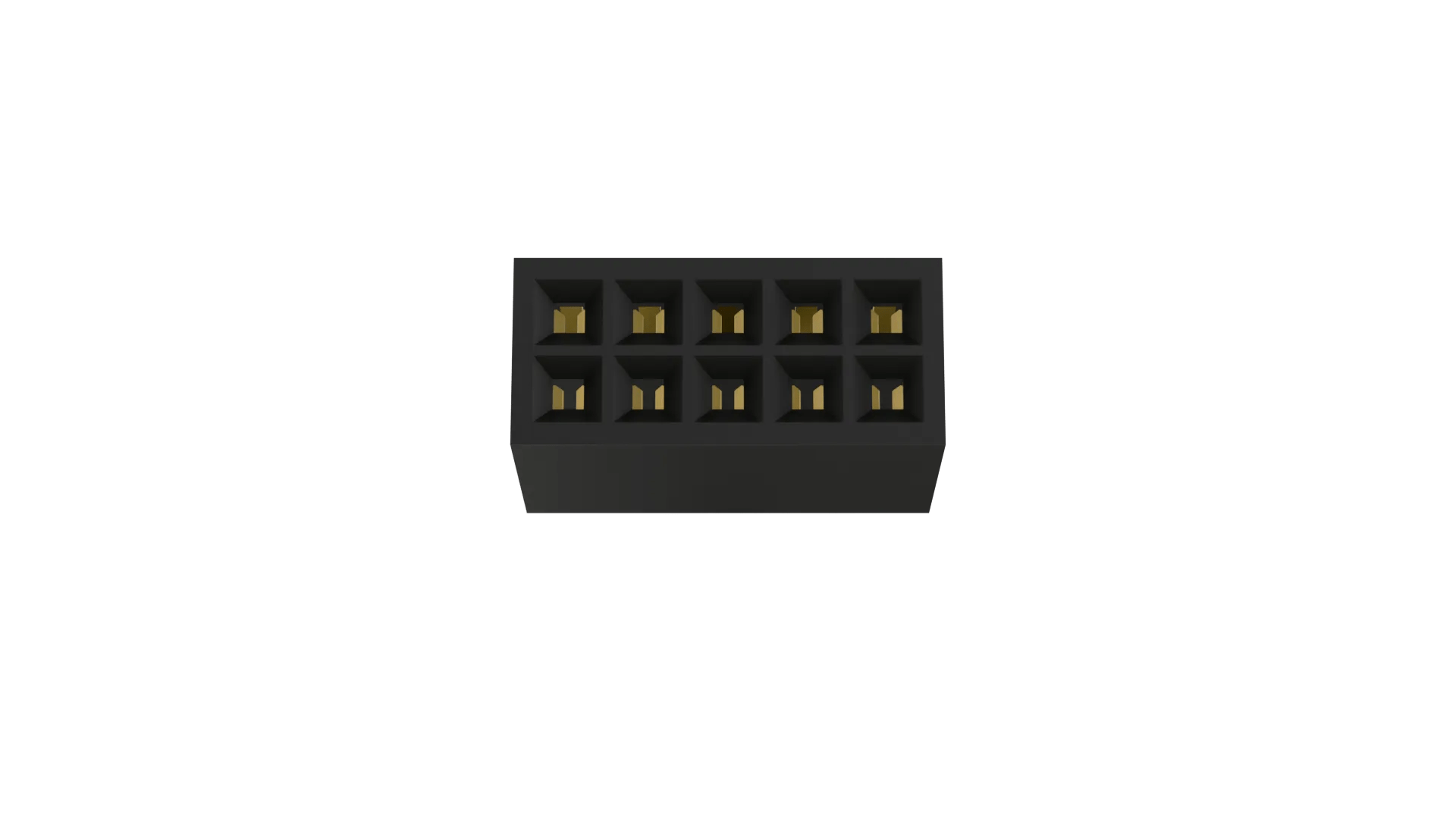

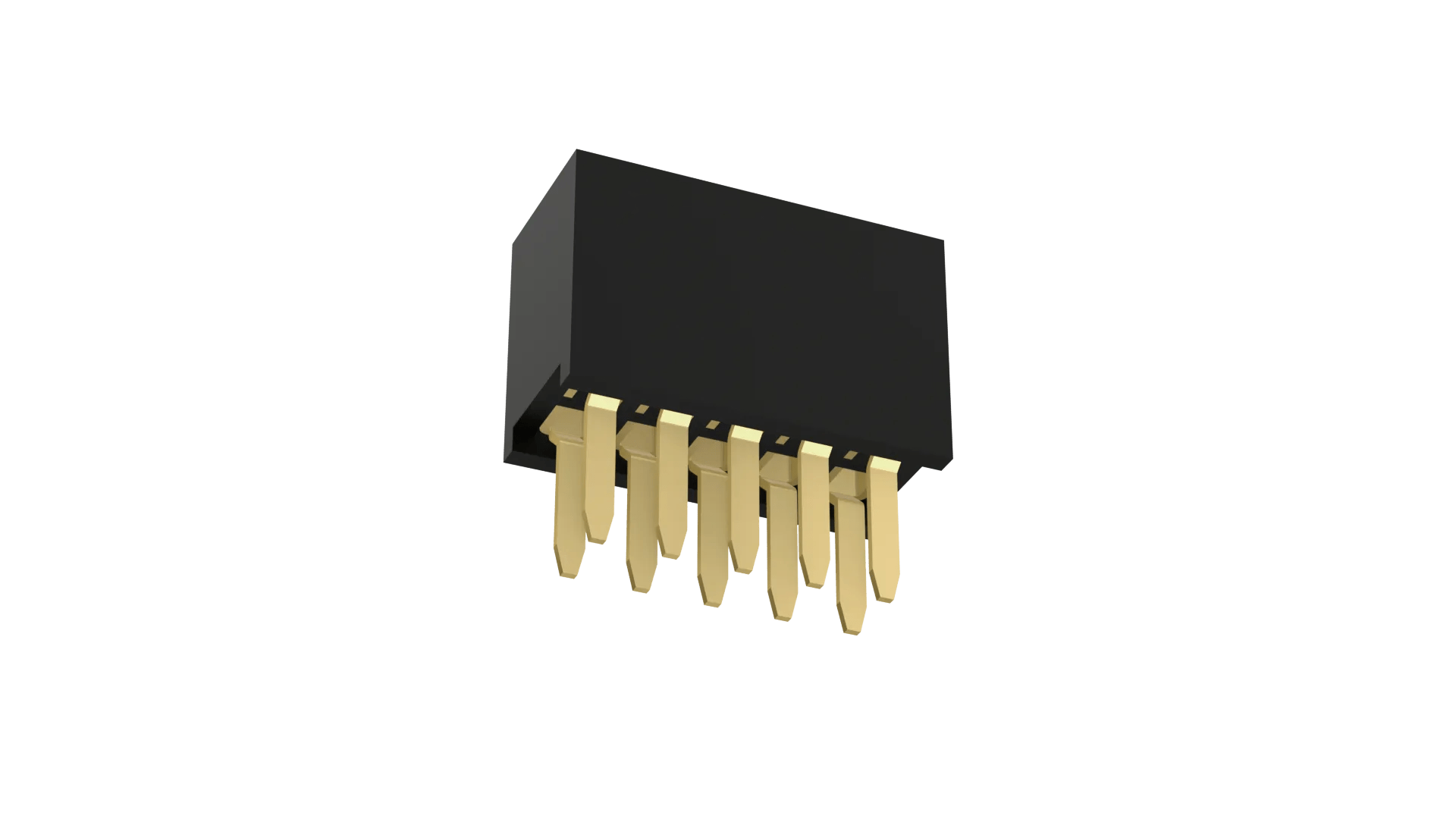

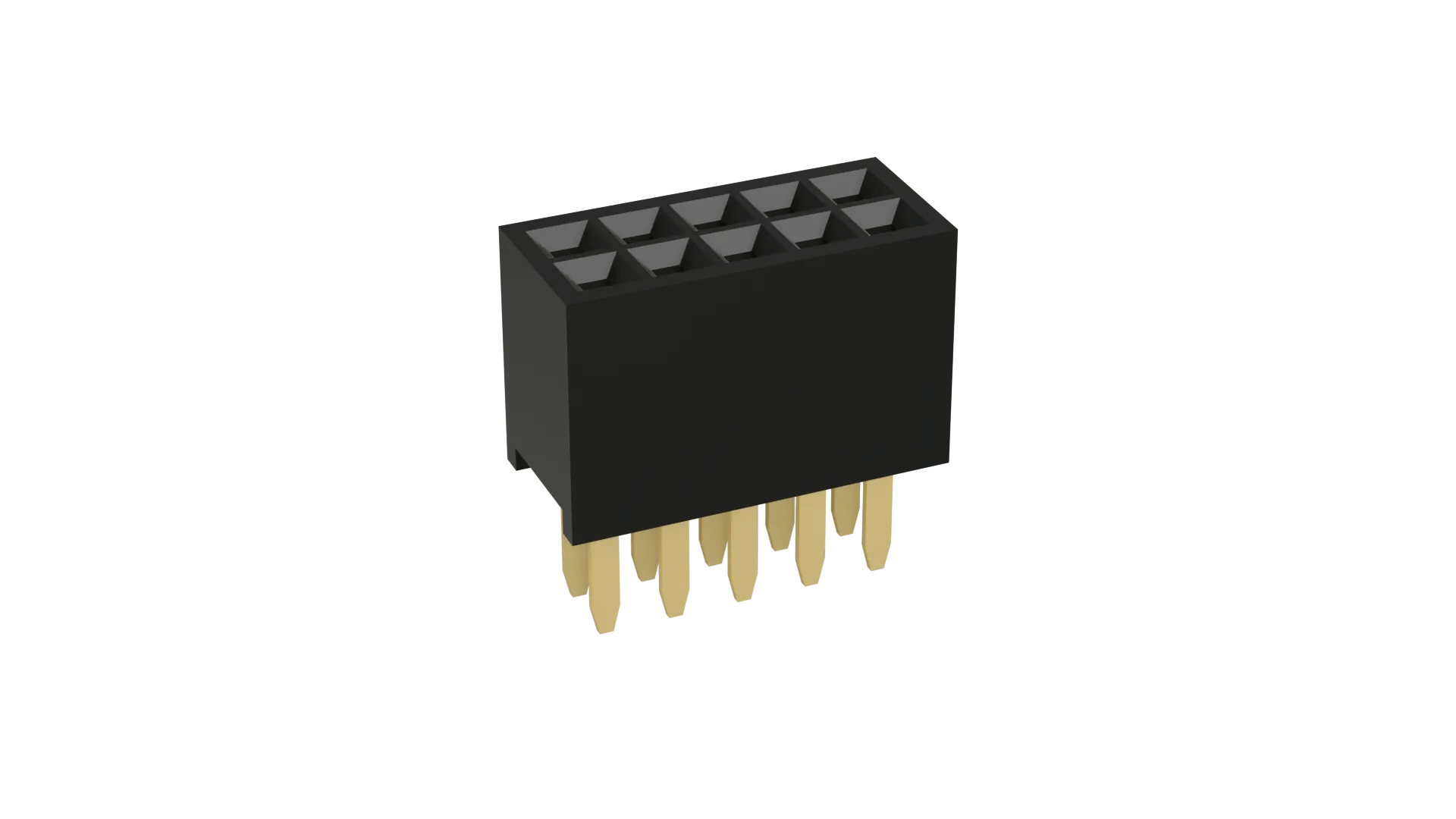

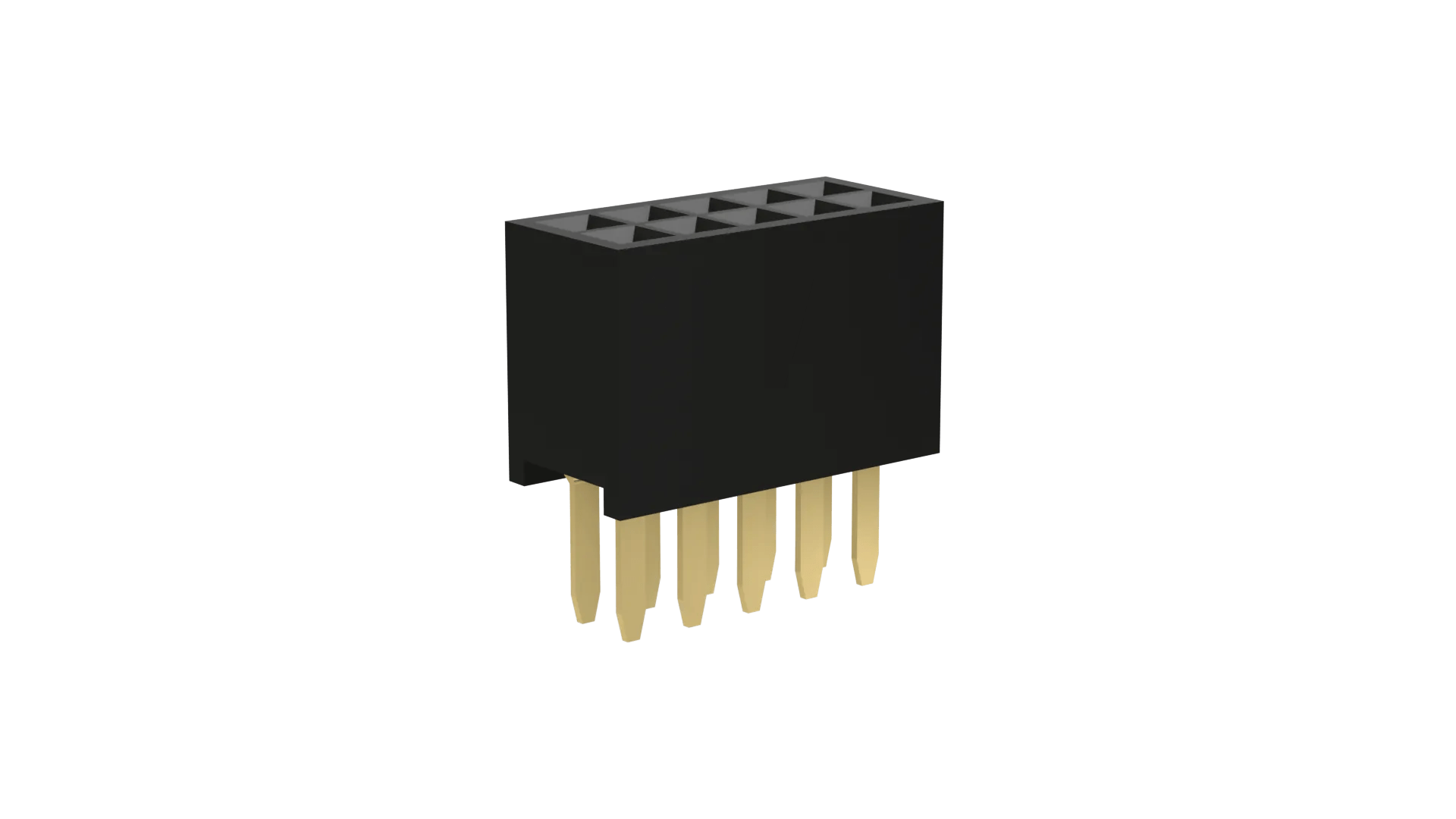

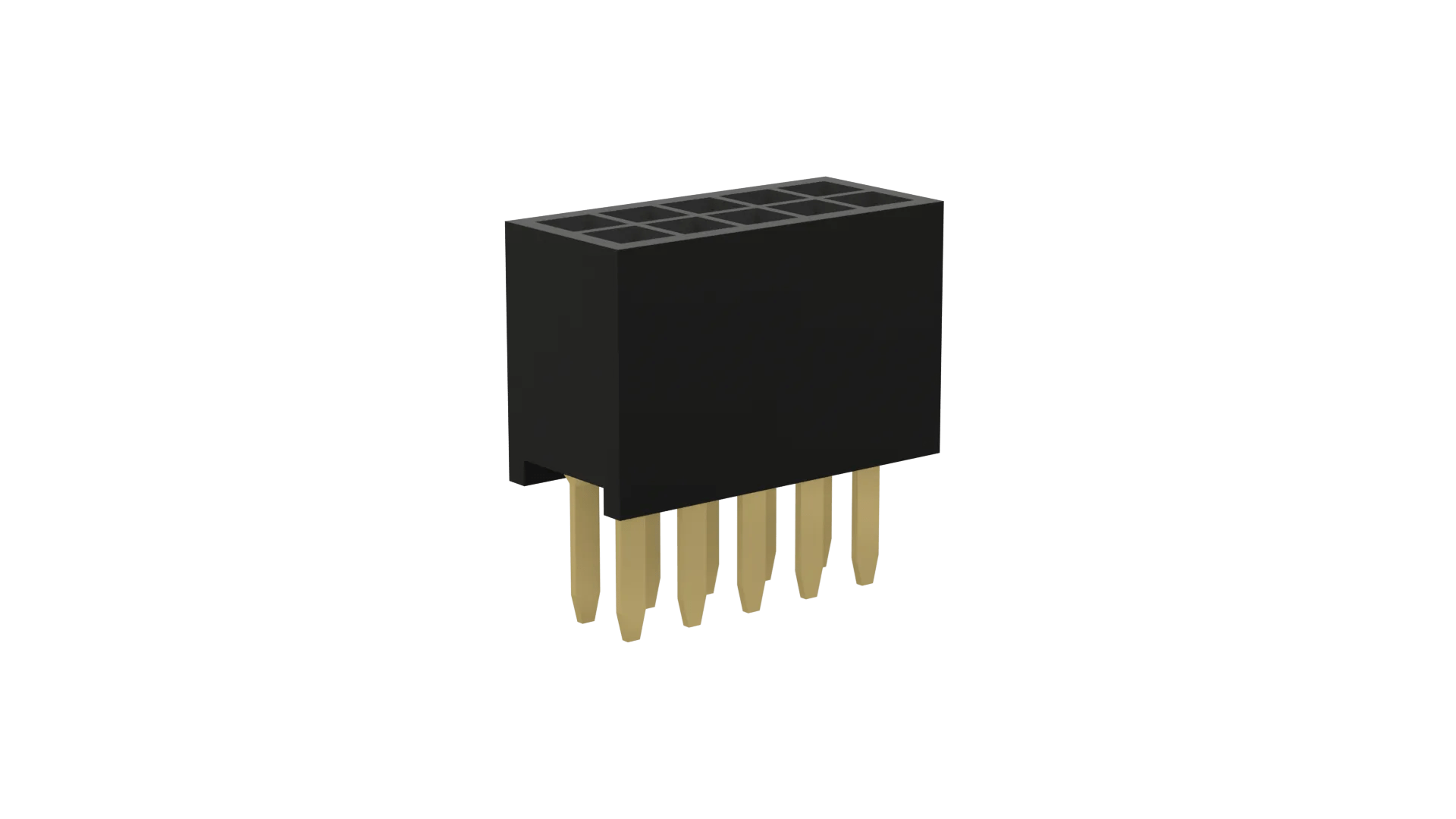

Archer M50 (1.27mm Pitch) DIL Vertical Socket Throughboard Connector - M50-3000545

1.27mm (0.05") Pitch PCB Connector (PCB Socket/PCB Receptacle)

  • Double Row, 2.4mm PC Tail, 4.4mm connector height - 10 contacts (5+5).
  • Gold finish on contact area and termination.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 5089
Avnet Abacus Europe 2040 Buy Now
Digi-Key Global 4648 Buy Now
Farnell Europe 1995 Buy Now
Mouser Electronics Inc Global 202 Buy Now
Newark USA 103 Buy Now
RS Components Europe 1227 Buy Now
TTI Europe 8330
TTI Inc USA 185
Harwin Europe 6205

Stock available: contact distributor to purchase

  • Specification

  • Related products

  • Materials

  • Dimensions

Product Type: 1.27mm (0.05") Pitch PCB Connector (PCB Socket/PCB Receptacle)
Contact Pitch: 1.27mm (0.05")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: 0.4mm square
Current Rating: 1A
Operating Temperature: -40°C to +105°C
Maximum Soldering Temperature: 260°C for 10 seconds
Product Family: M50-300
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.177g
Packaging Style: Tube
Number of Rows: 2
Total Number of Contacts: 10
Height of Connector above PCB: 4.4mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: No
Length of PC Tail: 2.4mm
Entry Style: Top Entry
