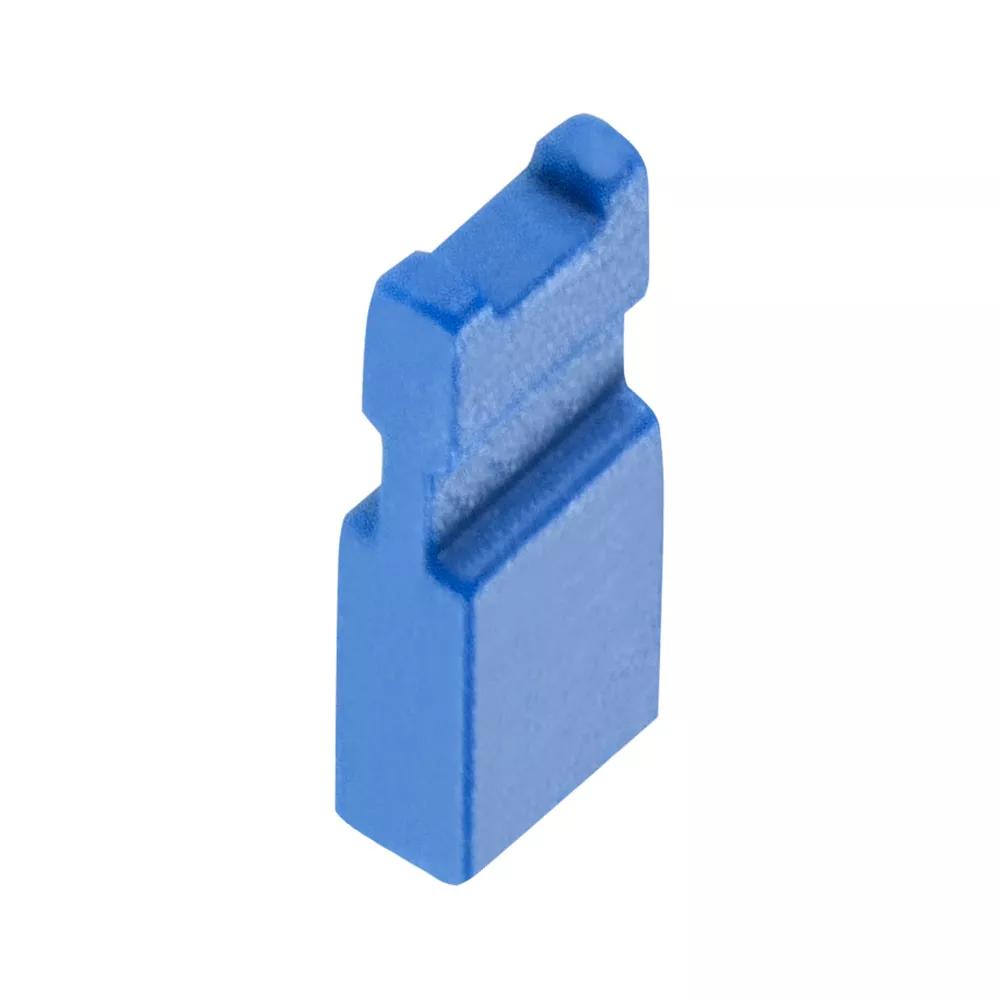

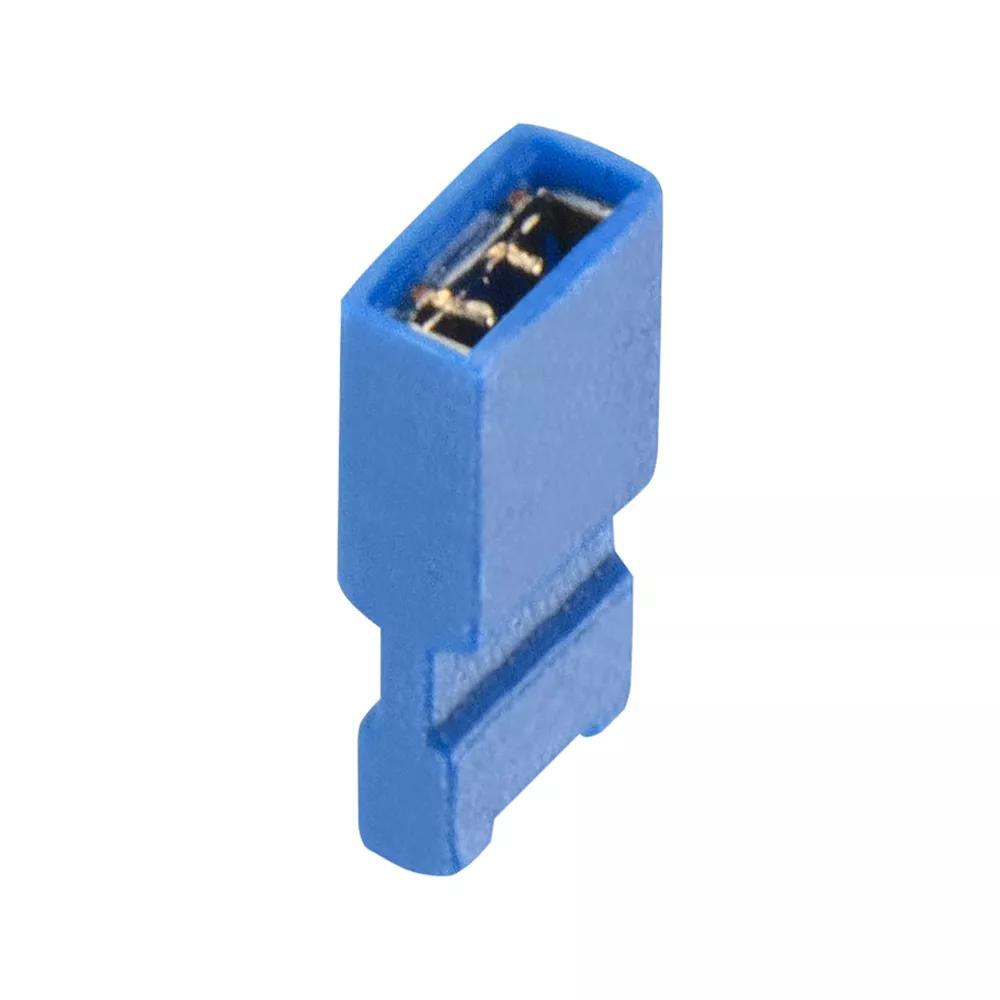

1.27mm (0.05") Pitch Closed Top Jumper Socket with Handle, blue, gold

BBi
BBi

Traceparts account required

M50-2030005

1.27mm (0.05") Pitch Closed Top Jumper Socket with Handle, blue, gold


1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Closed Top with handle jumper socket or shunt, Blue housing color, Gold finish.

  • High-Reliability Multi-Usage, up to 300 operations.

  • Alternative programming method to DIP switches.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.27mm (0.05")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    Jumper Socket

  • Mating Pin Size:

    0.4mm square

  • End Stackable:

    Yes

  • Side Stackable:

    Yes

  • Number of Rows:

    1

  • Number of Signal Contacts:

    2

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    PBT

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Jumper Socket

  • Current Rating:

    1A

  • Weight:

    0.022g

  • Dimensions:

    2.50 x 1.25 x 5.30

  • Operating Temperature:

    -40°C to +105°C

Downloads

    Environmental Compliance

  • M50-2030005

  • Material composition for M50-20x0005 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M50-20X.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)
