Home > M50-2020005
Active

M50-2020005

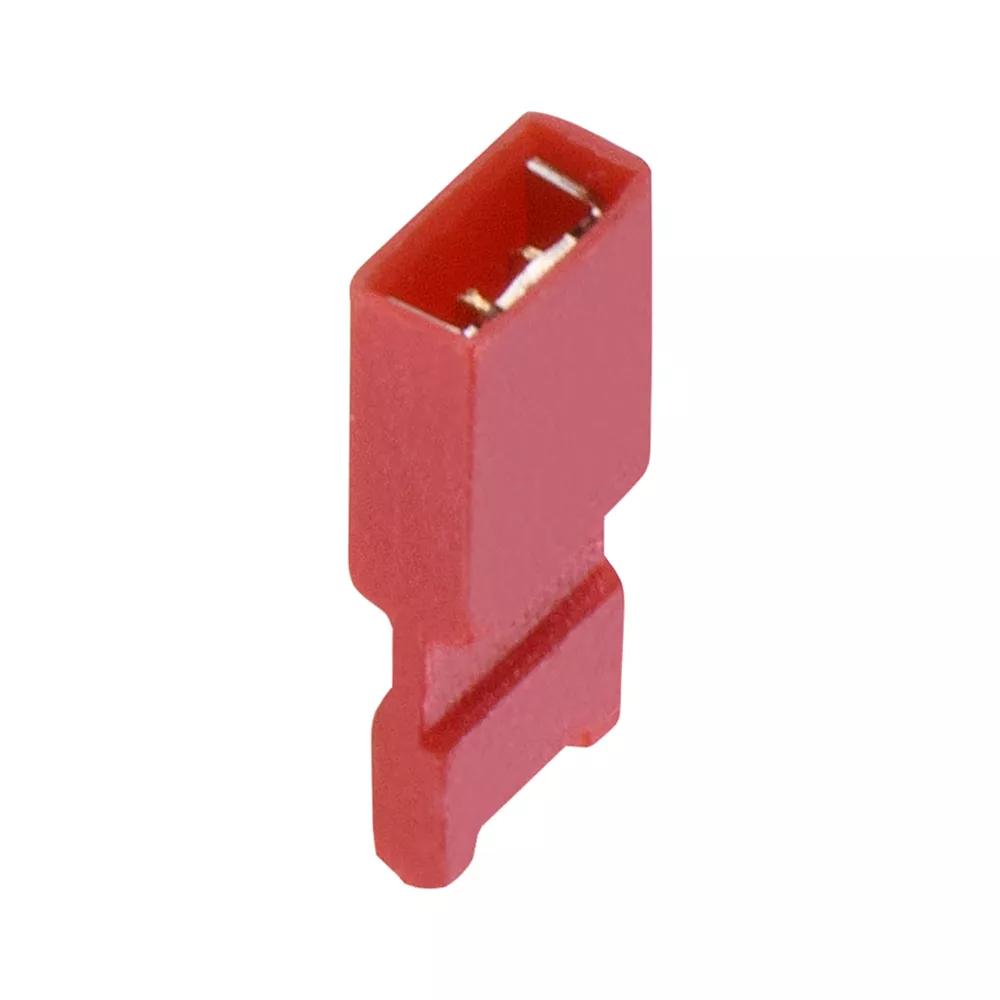

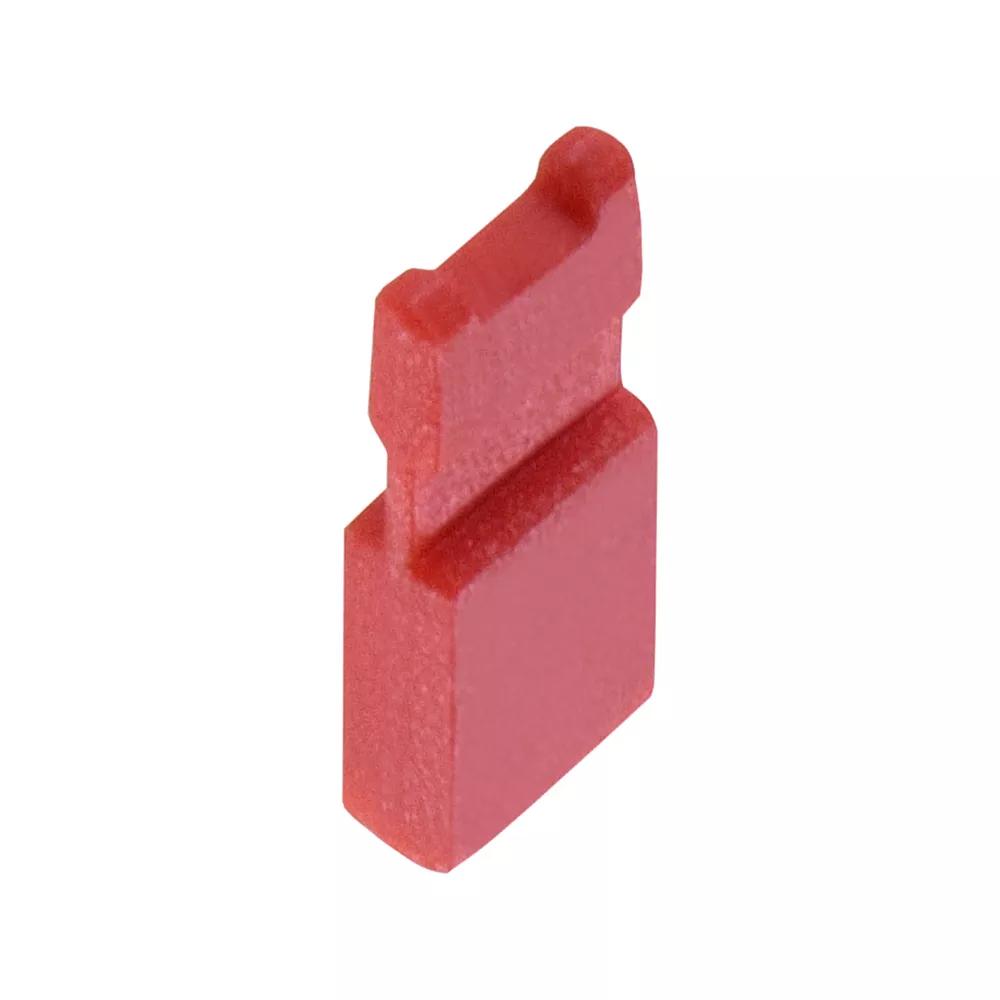

2 Pos. Female Jumper Socket, Handle Shunt, Red

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Closed Top with handle jumper socket or shunt, Red housing color, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.4mm square

Current Rating:

1A

Operating Temperature:

-40°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Red

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.022g

Overall Dimensions (L x W x D) in mm:

2.50 x 1.25 x 5.30

Availability

25,027 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 7587
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 6076
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3318
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 3200
Distributor Newark
Location USA
Quantity (Updated Daily) 2897
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1949

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-20X.pdf

ZIP

M50-2020005 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M50-20x0005 series

OTHER DOWNLOADS

PDF

3D PDF file - M50-2020005_3D.pdf

PDF

Catalog page - Archer M50 Jumper Sockets

PDF

Catalog page - Archer M50 Specification

PDF

Product Summary - Archer range, PCB and IDC Connectors
