M50-2000005

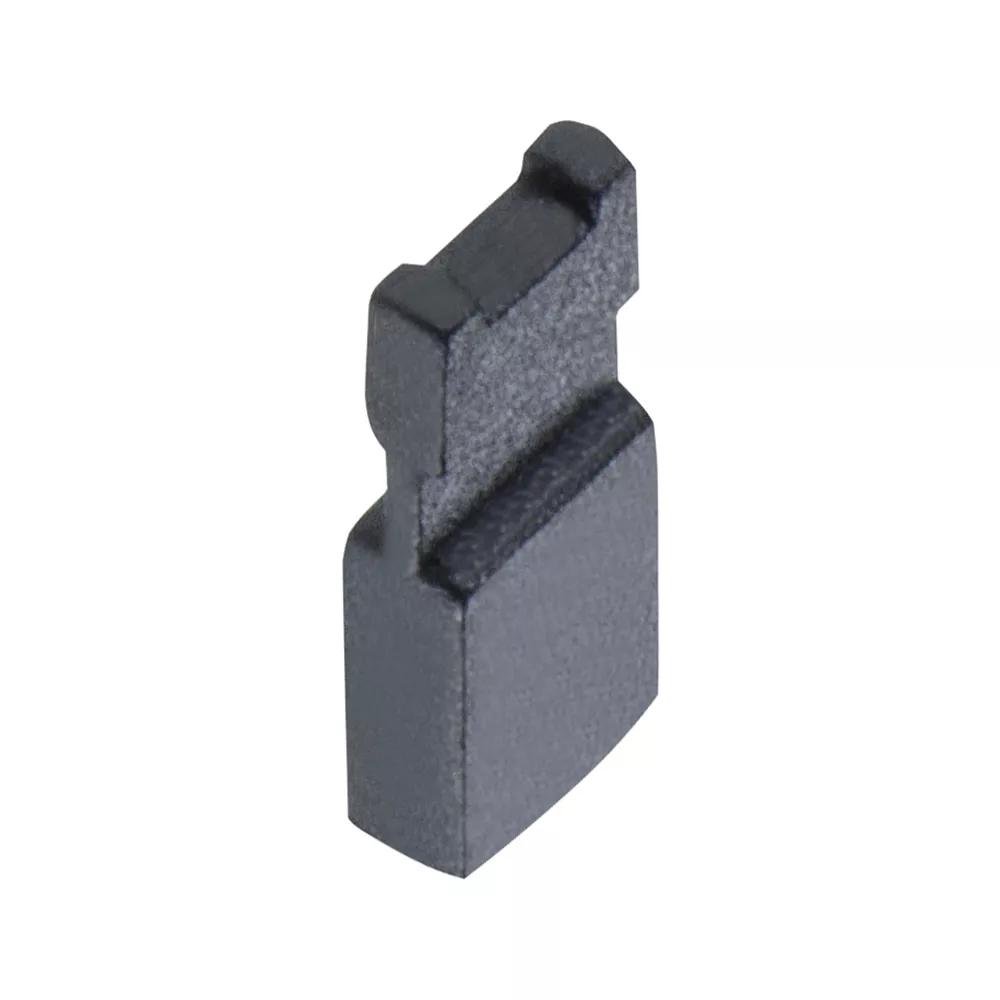

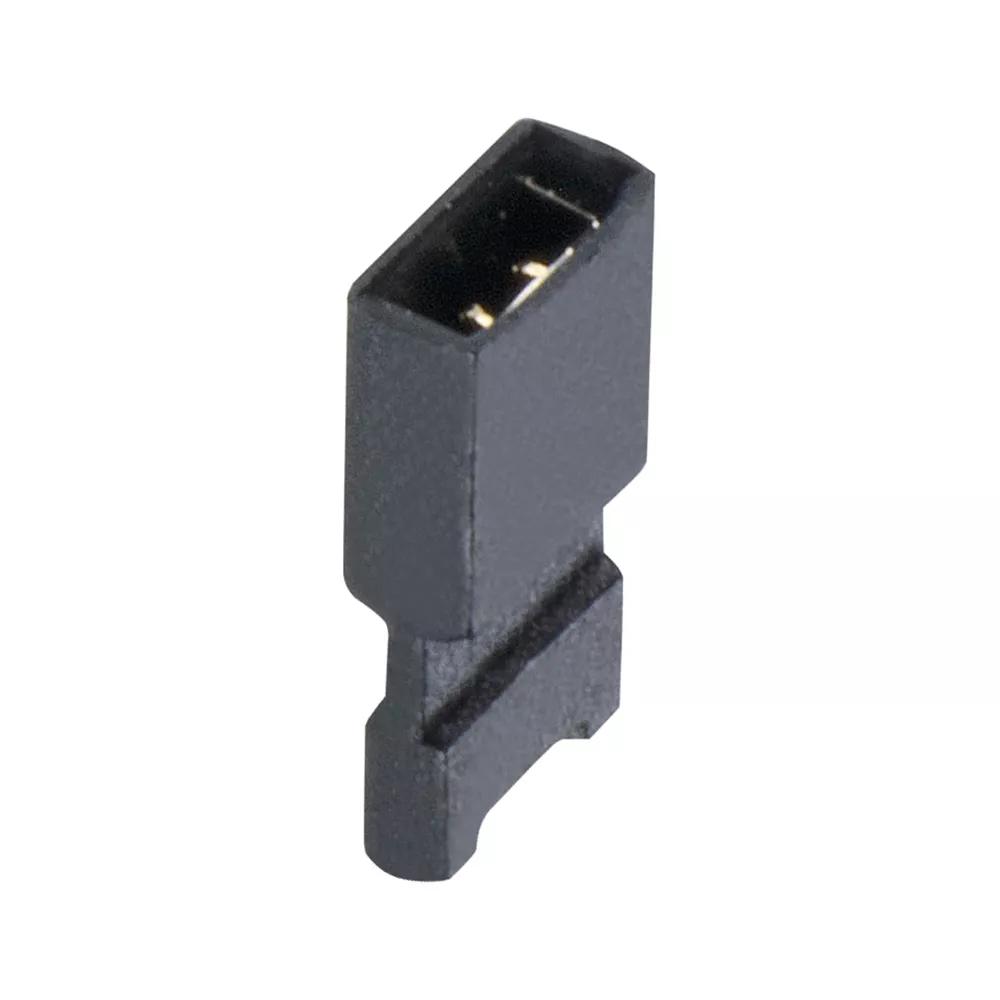

2 Pos. Female Jumper Socket, Handle Shunt, Black

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Closed Top with handle jumper socket or shunt, Black housing colour, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.4mm square

Current Rating:

1A

Operating Temperature:

-40°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.022g

Overall Dimensions (L x W x D) in mm:

2.50 x 1.25 x 5.30
