M50-1930005

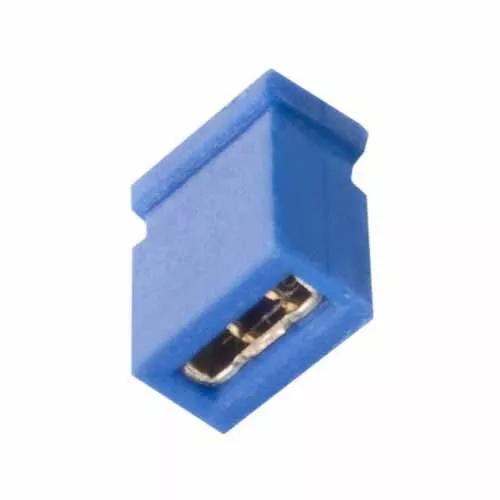

2 Pos. Female Jumper Socket, Closed Shunt, Blue

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Closed Top jumper socket or shunt, Blue housing color, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.4mm square

Current Rating:

1A

Operating Temperature:

-40°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Blue

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.019g

Overall Dimensions (L x W x D) in mm:

2.50 x 1.50 x 3.00

Availability

8,424 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3393
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1753
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1495
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1125
Distributor Newark
Location USA
Quantity (Updated Daily) 354
Distributor Farnell
Location Europe
Quantity (Updated Daily) 304
