M50-1920005

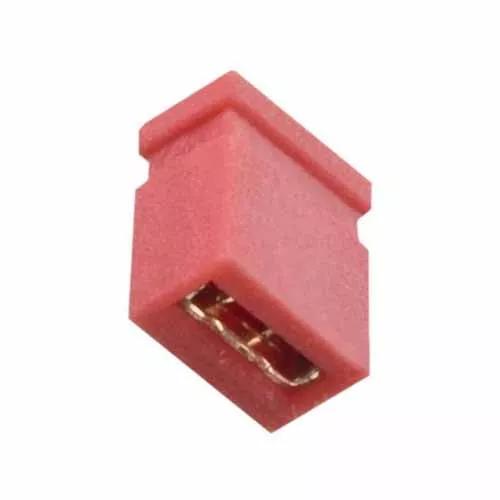

2 Pos. Female Jumper Socket, Closed Shunt, Red

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Closed Top jumper socket or shunt, Red housing colour, Gold finish.
  • High-Reliability Multi-Usage, up to 300 operations.
  • Alternative programming method to DIP switches.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.4mm square

Current Rating:

1A

Operating Temperature:

-40°C to +105°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Red

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.018g

Overall Dimensions (L x W x D) in mm:

2.50 x 1.50 x 3.00

Availability

Distributor Location Quantity
Anglia
Europe
Status1196
Digi-Key
Global
Status1241
Farnell
Europe
Status3769
Harwin
Europe
Status8000
Mouser Electronics Inc
Global
Status2032
Newark
USA
Status289

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-19X.pdf

ZIP

M50-1920005 CAD Model (ZIP file containing STP and IGES)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M50-19x0005 series

OTHER DOWNLOADS

PDF

3D PDF file - M50-1920005_3D.pdf

PDF

Catalog page - Archer M50 Jumper Sockets

PDF

Catalog page - Archer M50 Male Horizontal PC Tail
