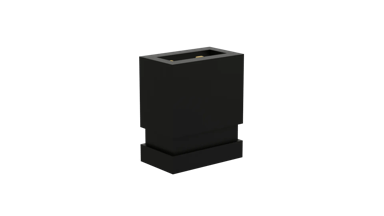

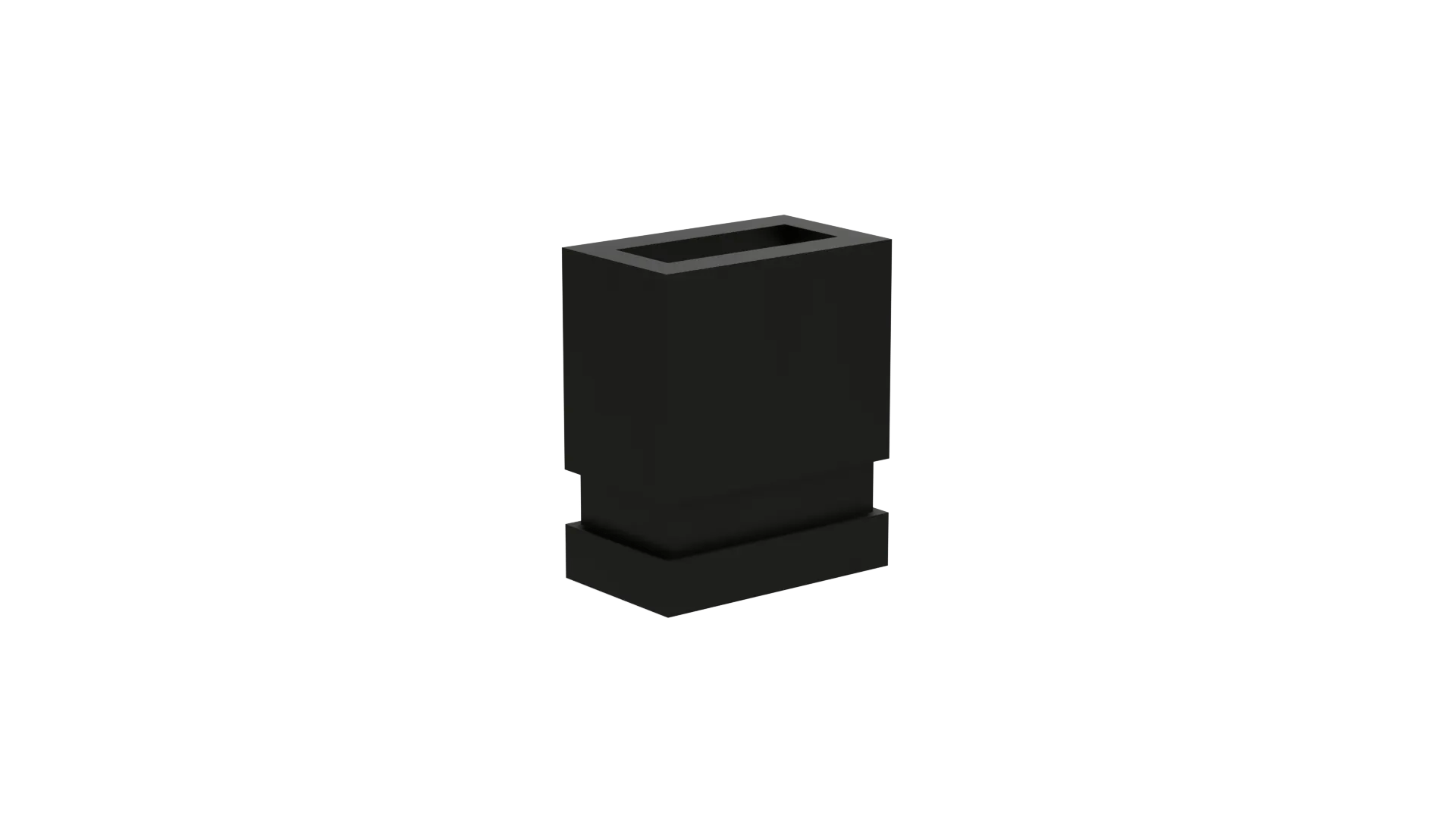

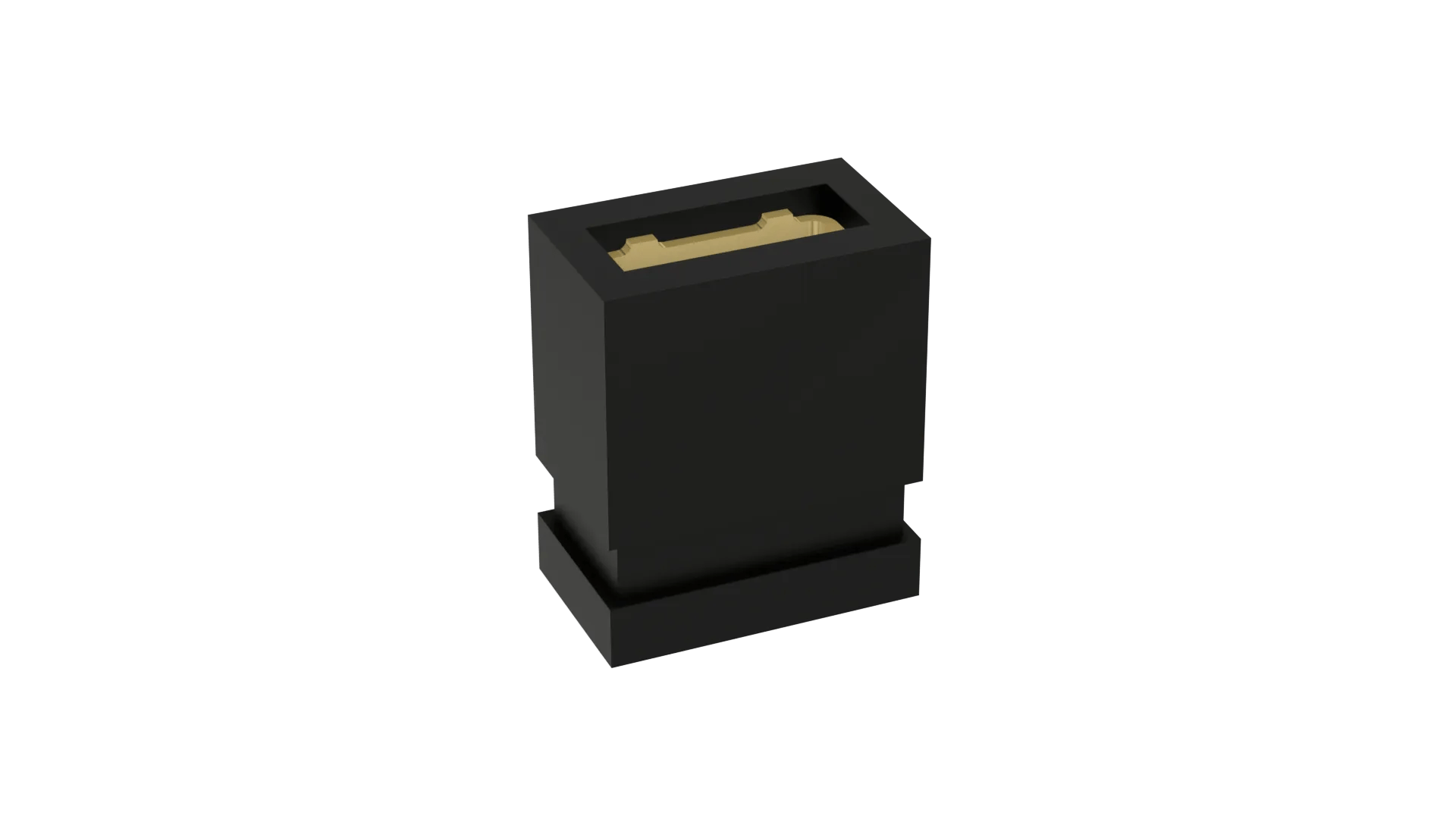

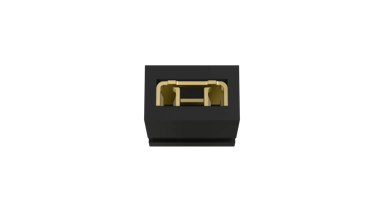

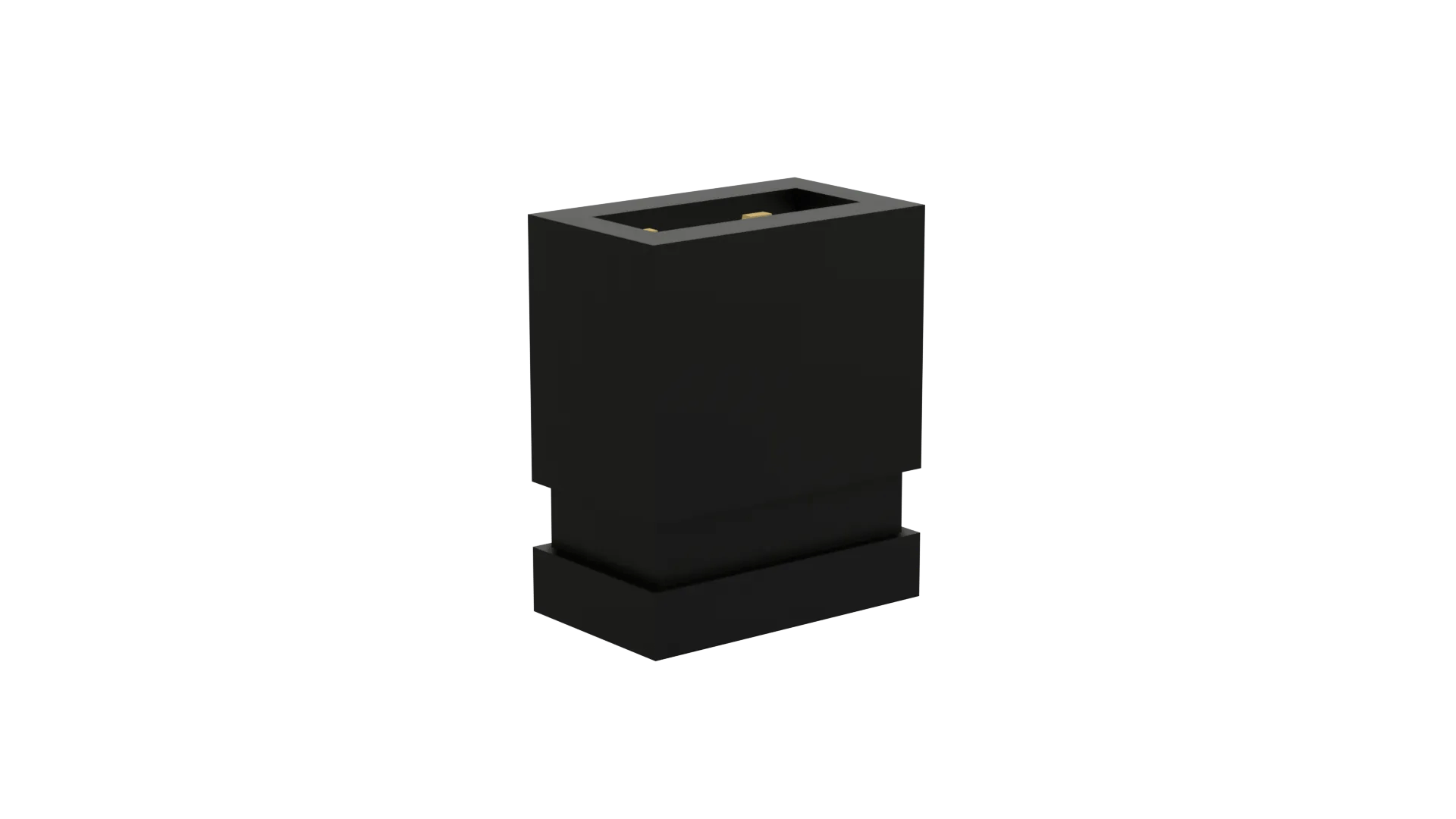

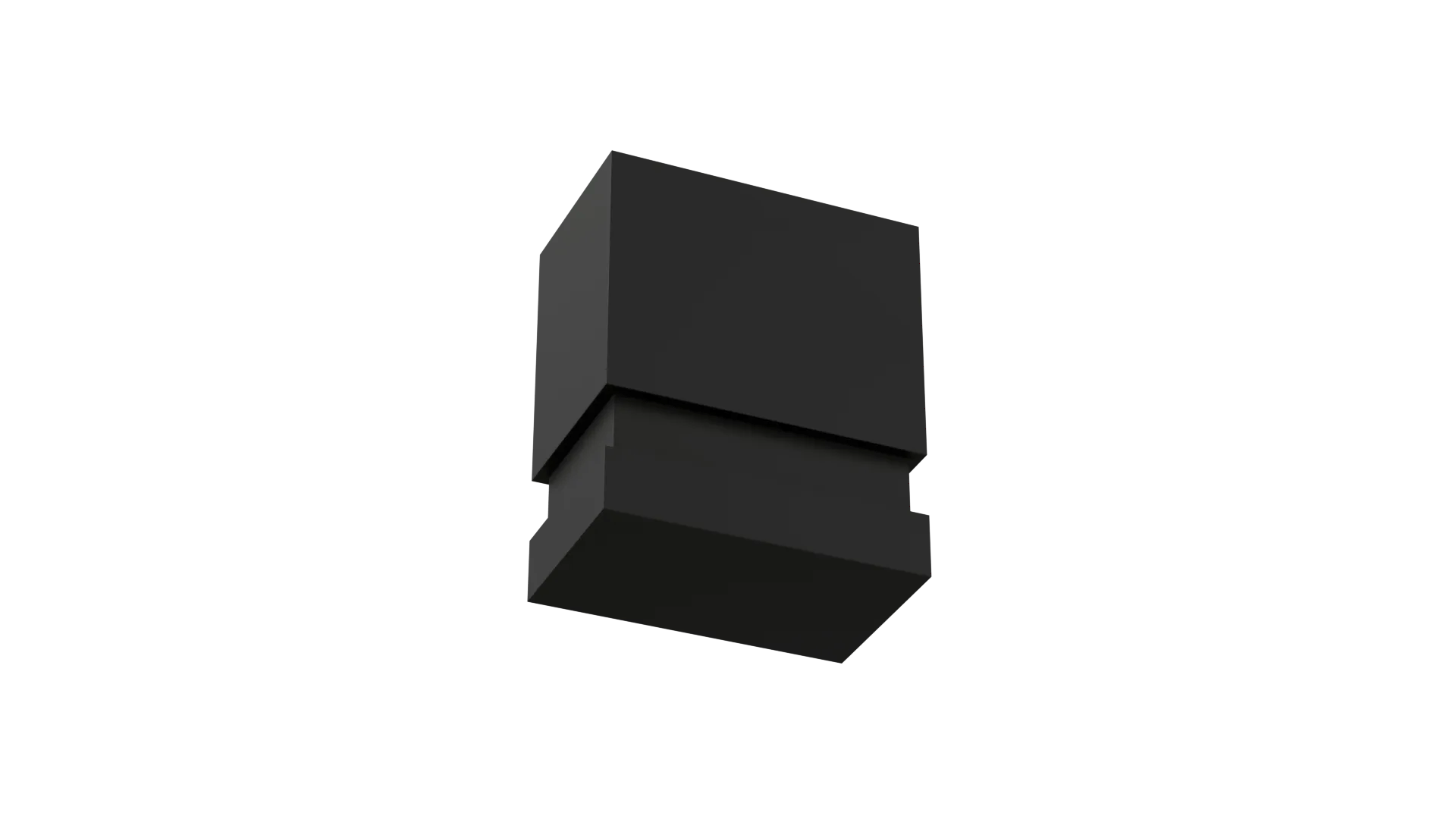

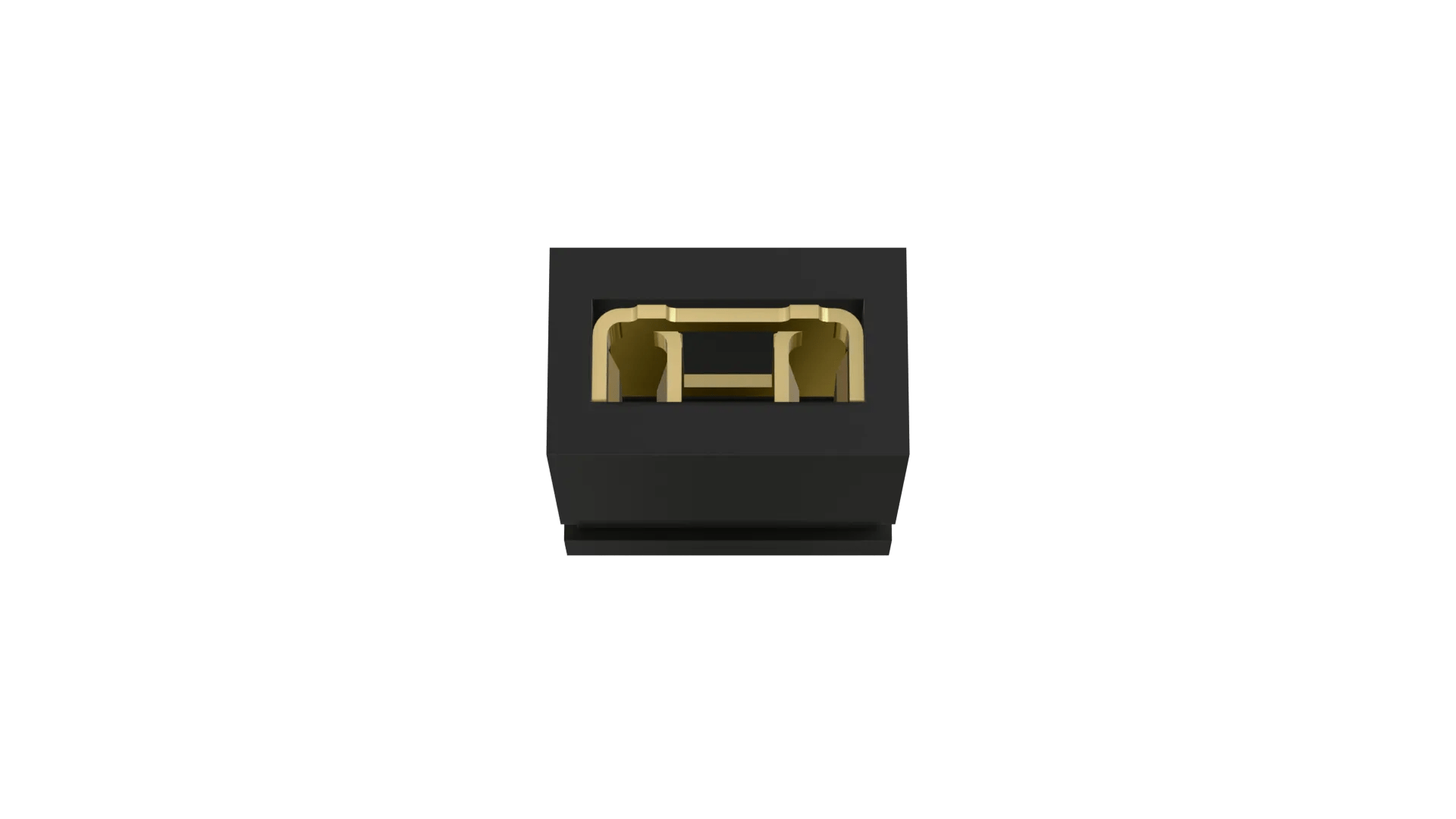

1.27mm (0.05") Pitch Closed Top Jumper Socket, black, gold

BBi

Traceparts account required

M50-1900005

1.27mm (0.05") Pitch Closed Top Jumper Socket, black, gold


1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Closed Top jumper socket or shunt, Black housing color, Gold finish.

  • High-Reliability Multi-Usage, up to 300 operations.

  • Alternative programming method to DIP switches.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    Yes

  • Mating Pin Size:

    0.4mm square

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    No

  • Number of Signal Contacts:

    2

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PBT

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    0.019g

  • Dimensions:

    2.50 x 1.50 x 3.00

Downloads

    Product Information

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)

  • Technical Documentation

  • Technical Drawing / Datasheet - M50-19X.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M50-1900005

  • Material composition for M50-19x0005 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
