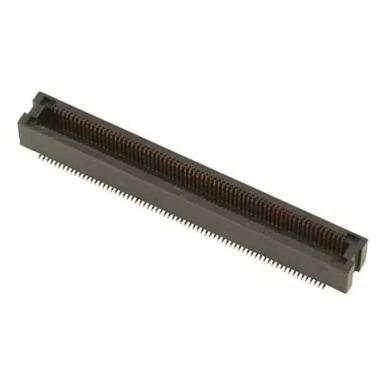

M402VF-3-016-02NR

8+8 Pos. Female DIL Vertical SMT Conn. (T+R)

0.50mm (0.0197") Pitch PCB Connector - M402 Series

  • Vertical Board-to-Board Surface Mount connector, 2mm height, location pegs, hold-down tabs – 16 contacts (8+8).
  • Packaged in Tape & Reel, with Pick & Place caps. Tin finish on contact area and termination.
  • Socket style – mates with Plug (male) versions.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

0.50mm (0.020")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.108g

Overall Dimensions (L x W x D) in mm:

8.50 x 5.50 x 2.45

Height of Connector above PCB:

2.00mm

Availability

54,000 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
