M40-9010099

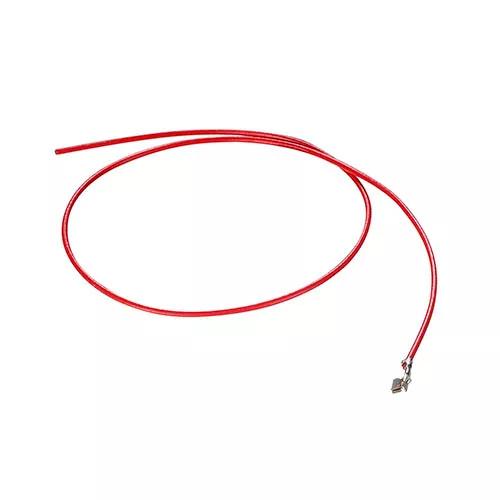

Female Contact with 32AWG wire, 150mm, single-end

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

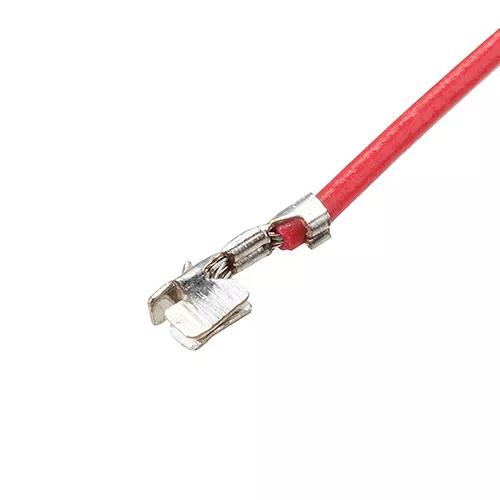

Single Pre-Crimped Contact, Female Single-Ended with red 32 AWG wire, 150mm long.
Manufactured with the M40-1000046 crimp contact. Tin finish on contact area.
Use with crimp housings M40-110 and M40-120 series.

Request Samples

Availability

M40-9010099 - Female Contact with 32AWG wire, 150mm, single-end

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

32AWG

Mating Pin Size:

0.2mm x 0.4mm

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.125g

Overall Dimensions (L x W x D) in mm:

150.00 x 0.78 x 1.35

Mating Profiles:

Catalog page - M40 Cable-to-Board Specification, Mating Profile

Availability

2,849 in stock

Questions & Answers Ask a Question

How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?

The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.

Downloads

PDF

Technical Drawing / Datasheet - M40-900-903_M40-910-911.pdf

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M40-900 to M40-903 series

PDF

Product Training Module - Overview of the Fine Pitch connectors, 1.25mm pitch and smaller

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - M40 Cable-to-Board Female Pre-Cabled Crimp Contacts

PDF

Catalog page - M40 Cable-to-Board Specification, Mating Profile

Want to talk to someone?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.
