M40-6004146R

41 Pos. Male DIL Vertical SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board Fine Pitch

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

Double Row Vertical Board-to-Board Surface Mount Plug connector with location pegs – Tin finish, 41 contacts (21+20).
Surface Mount hold-down tabs, contacts in staggered format rows.
Packaged in Tape & Reel, with Pick & Place caps.

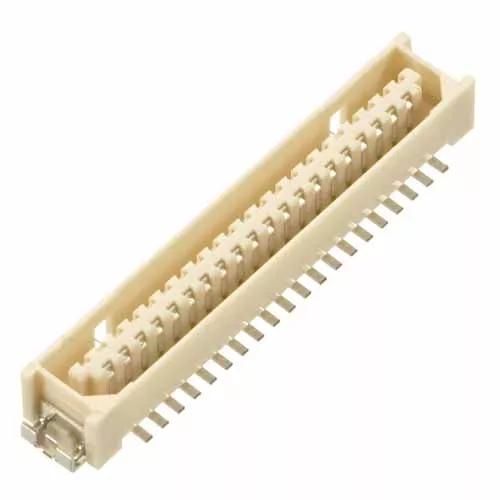

M40-6004146R - 41 Pos. Male DIL Vertical SMT Conn. (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.5A per contact

Operating Temperature:

-20°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

0.458g

Overall Dimensions (L x W x D) in mm:

26.10 x 5.60 x 4.10

Height of Connector above PCB:

3.30mm

Mating Profiles:

Catalog page - M40-600 & M40-620 Specification, Mating Profile

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
