Image may be representative. Refer to the product title for more information.

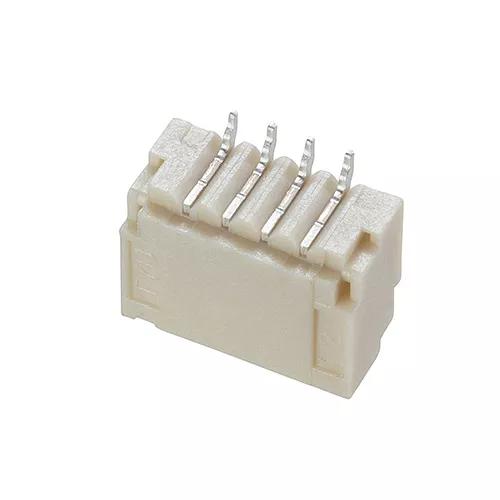

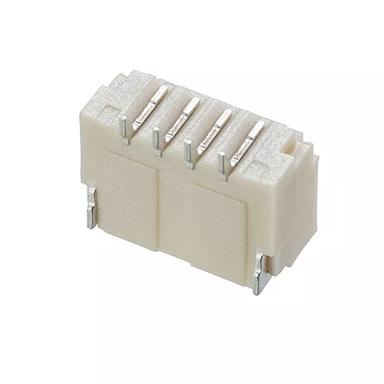

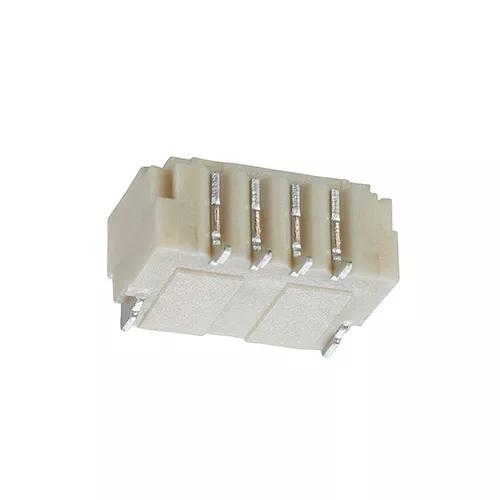

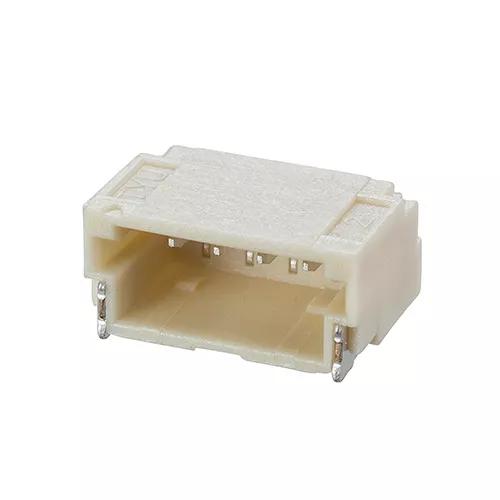

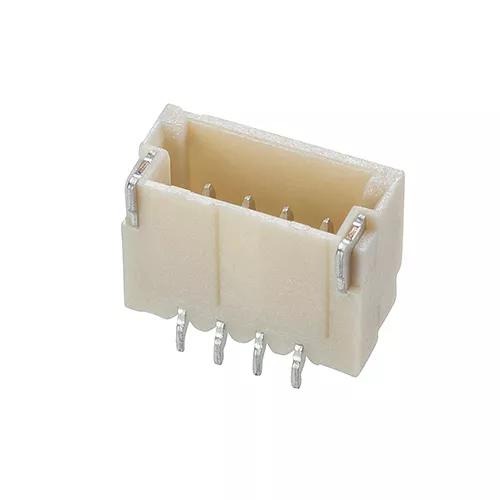

Single Row Male Horizontal connector, Surface Mount with Tin finish - 5 contacts.
Surface mount hold-down tabs, shrouded and polarized housing.
Packaged in Tape & Reel.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.2mm x 0.4mm
Number of Rows
1
Connector Orientation
Horizontal
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
5
Operating Temperature
-25°C to +85°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Housing Material
LCP
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Cream
Dimensions
Contact Pitch
1.00mm (0.039")
Weight
0.117g
Dimensions
7.00 x 4.95 x 3.00
Height of Connector above PCB
3.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M40-401R.pdf
Outgassing data for Harwin products (plastics)
Product Information
Catalog page - M40 Cable-to-Board Specification + Mating Profile
Product Training Module - Overview of the Fine Pitch connectors + 1.25mm pitch and smaller
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M40-401 series
RoHS Declaration - M40-4010546R
