M40-3202545R

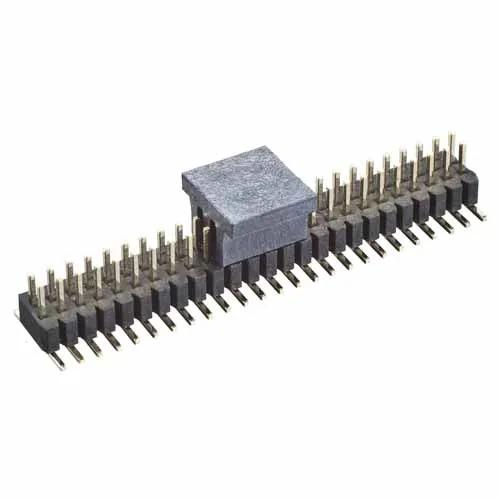

25+25 Pos. Male DIL Vertical SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board

  • Double Row Male Surface Mount with location pegs, 1.8mm mating pin height – 50 contacts (25+25).
  • Gold finish on contact area and termination.
  • Packaged in Tape & Reel, with Pick & Place caps.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.3mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.469g

Overall Dimensions (L x W x D) in mm:

25.00 x 5.20 x 4.30

Height of Connector above PCB:

3.80mm

Availability

2,881 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 800
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 635
Distributor Farnell
Location Europe
Quantity (Updated Daily) 538
Distributor Newark
Location USA
Quantity (Updated Daily) 538
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 370

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M40-320R.pdf

ZIP

M40-3202545 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C026XX Component Specification - M40 Series (1.00mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M40-320 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Fine Pitch connectors, 1.25mm pitch and smaller

OTHER DOWNLOADS

PDF

Catalog page - M40-310 & M40-320 Connectors

PDF

Catalog page - M40-310 & M40-320 Specification, Mating Profile
