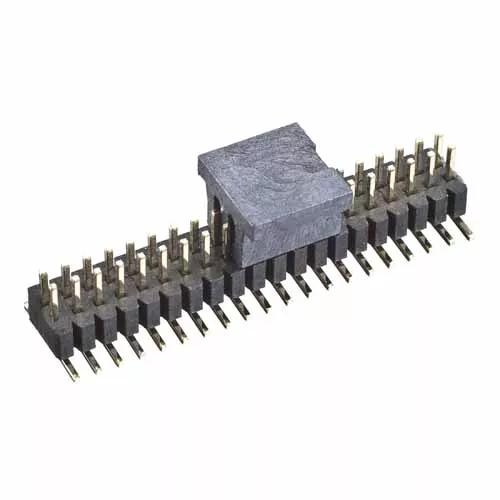

M40-3202045R

20+20 Pos. Male DIL Vertical SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board

  • Double Row Male Surface Mount with location pegs, 1.8mm mating pin height – 40 contacts (20+20).
  • Gold finish on contact area and termination.
  • Packaged in Tape & Reel, with Pick & Place caps.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.3mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

40

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.391g

Overall Dimensions (L x W x D) in mm:

20.00 x 5.20 x 4.30

Height of Connector above PCB:

3.80mm

Availability

2,167 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1275
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 601
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 291

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
