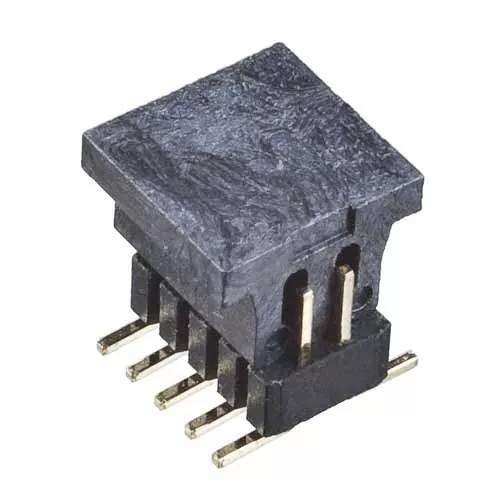

Image may be representative. Refer to the product title for more information.
Double Row Male Surface Mount with location pegs, 1.8mm mating pin height - 10 contacts (5+5).
Gold finish on contact area and termination.
Packaged in Tape & Reel, with Pick & Place caps.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.3mm square
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
10
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
Yes
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 9T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
1.00mm (0.039")
Weight
0.157g
Dimensions
5.00 x 5.20 x 4.30
Height of Connector above PCB
3.80mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M40-320R.pdf
C026XX Component Specification - M40 Series (1.00mm pitch PCB connectors)
Product Information
Catalog page - M40-310 & M40-320 Specification + Mating Profile
Product Training Module - Overview of the Fine Pitch connectors + 1.25mm pitch and smaller
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M40-320 series
RoHS Declaration - M40-3200545R
