M40-3102545R
25+25 Pos. Female DIL Vertical SMT Conn. (T+R)
1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board
8,736 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description

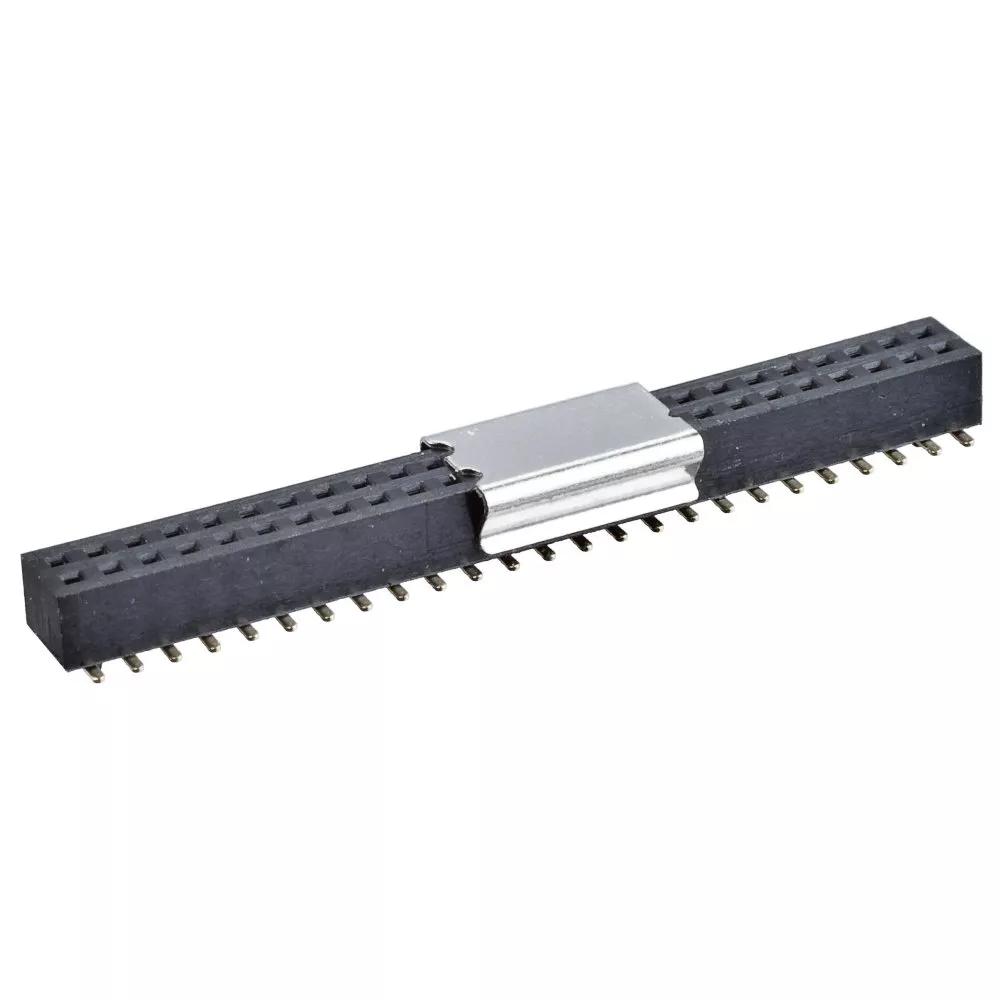

- Double Row Female Surface Mount with location pegs, 2.25mm connector height – 50 contacts (25+25).
- Gold finish on contact area and termination.
- Packaged in Tape & Reel, with Pick & Place caps.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.00mm (0.039")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.3mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
50
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.304g
Overall Dimensions (L x W x D) in mm:
25.40 x 3.60 x 3.00
Height of Connector above PCB:
2.25mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Can you please let me know what is the MSL (Moisture Sensitive Level) for this series of connectors?
You can find further information and statement on MSL for our connectors on this Support article. If you have any further questions relating to this topic, do please contact one of our Experts.
