M40-3102045R

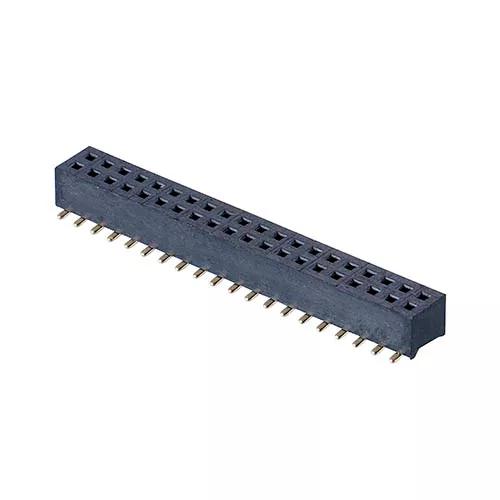

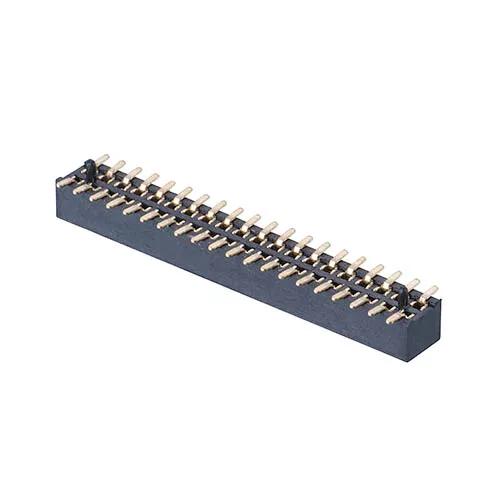

1.00mm Pitch DIL Vertical SMT Socket Assembly, location pegs, gold, 20+20 contacts, pick & place (Tape & Reel packing)


1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board

  • Double Row Female Surface Mount with location pegs, 2.25mm connector height - 40 contacts (20+20).

  • Gold finish on contact area and termination.

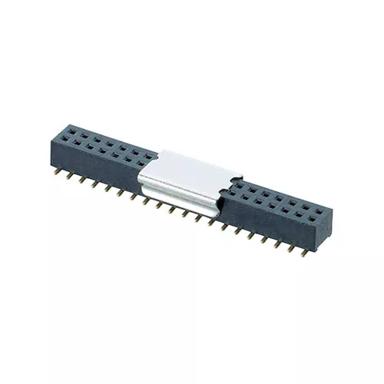

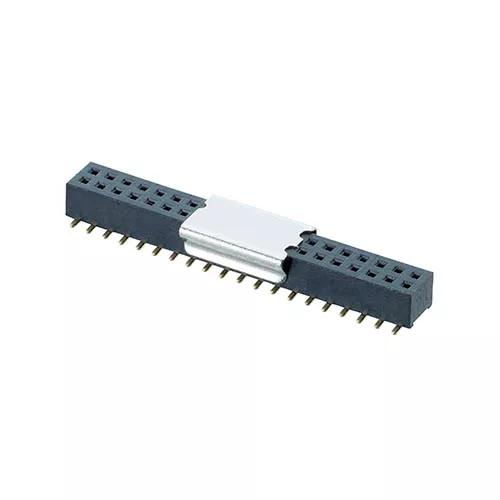

  • Packaged in Tape & Reel, with Pick & Place caps.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Top Entry

  • Mating Pin Size:

    0.3mm square

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    CN

  • Side Stackable:

    No

  • Number of Signal Contacts:

    40

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 9T

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.00mm (0.039")

  • Weight:

    0.252g

  • Dimensions:

    20.40 x 3.60 x 3.00

  • Height of Connector above PCB:

    2.25mm

Downloads

    Product Information

  • Catalog page - M40-310 & M40-320 Specification + Mating Profile

  • Product Training Module - Overview of the Fine Pitch connectors + 1.25mm pitch and smaller

  • Technical Documentation

  • Technical Drawing / Datasheet - M40-310R.pdf

  • C026XX Component Specification - M40 Series (1.00mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M40-3102045R

  • Material composition for M40-310 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
