Home > M40-3100845R
Active

M40-3100845R

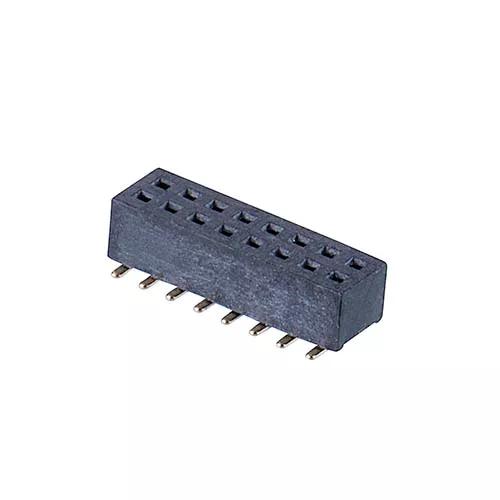

8+8 Pos. Female DIL Vertical SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board

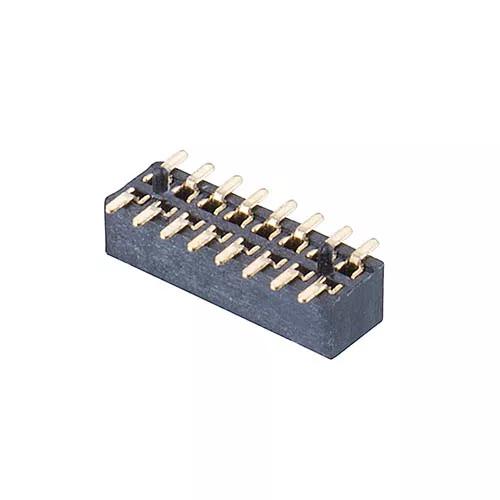

  • Double Row Female Surface Mount with location pegs, 2.25mm connector height – 16 contacts (8+8).
  • Gold finish on contact area and termination.

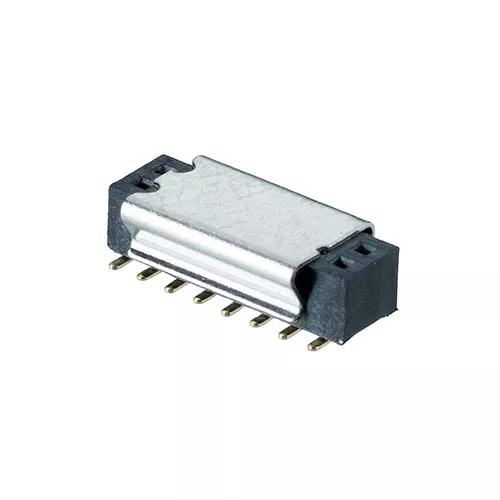

  • Packaged in Tape & Reel, with Pick & Place caps.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.3mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.127g

Overall Dimensions (L x W x D) in mm:

8.40 x 3.60 x 3.00

Height of Connector above PCB:

2.25mm

Availability

2,006 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1865
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 141

Questions & Answers Ask a Question

Can you please let me know what is the MSL (Moisture Sensitive Level) for this series of connectors?

You can find further information and statement on MSL for our connectors on this Support article. If you have any further questions relating to this topic, do please contact one of our Experts.
