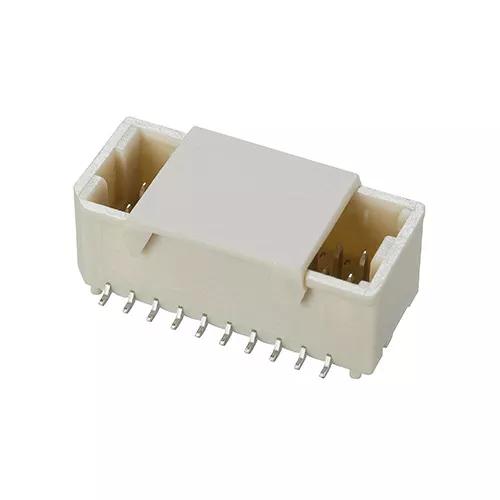

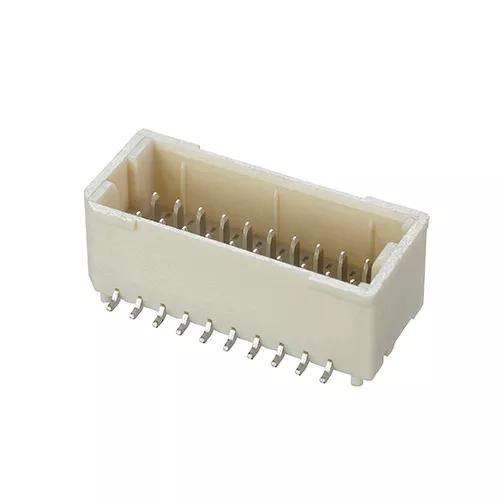

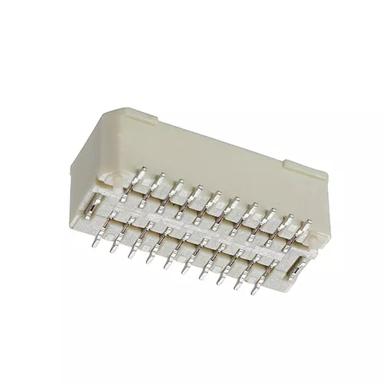

M40-3021546R

1.00mm Pitch DIL Vertical SMT Pin Header, tin, 15+15 contacts, Tape & Reel packing


1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

  • Double Row Male Vertical connector, Surface Mount with Tin finish - 30 contacts (15+15).

  • Surface mount hold-down tabs, shrouded and polarized housing.

  • Packaged in Tape & Reel, with Pick & Place caps.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.00mm (0.039")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    Surface Mount (SMT)

  • Mating Pin Size:

    0.2mm x 0.4mm

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    30

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    LCP

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Height of Connector above PCB:

    4.35mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Surface Mount (SMT)

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.417g

  • Dimensions:

    17.30 x 6.30 x 4.35

  • Operating Temperature:

    -25°C to +85°C
