M40-3021046R
10+10 Pos. Male DIL Vertical SMT Conn. (T+R)
1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board
4,160 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description

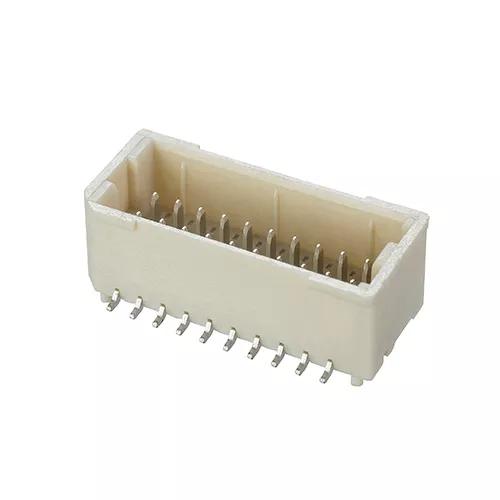

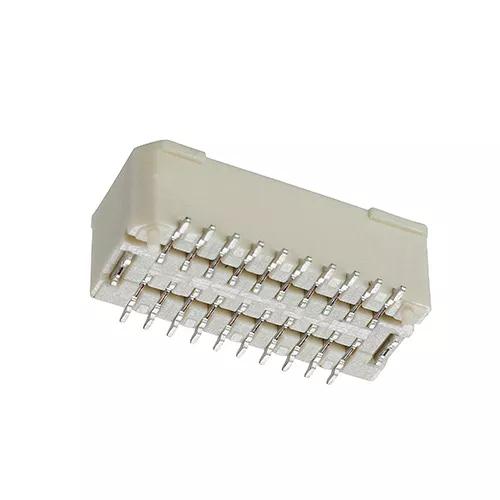

- Double Row Male Vertical connector, Surface Mount with Tin finish – 20 contacts (10+10).
- Surface mount hold-down tabs, shrouded and polarized housing.

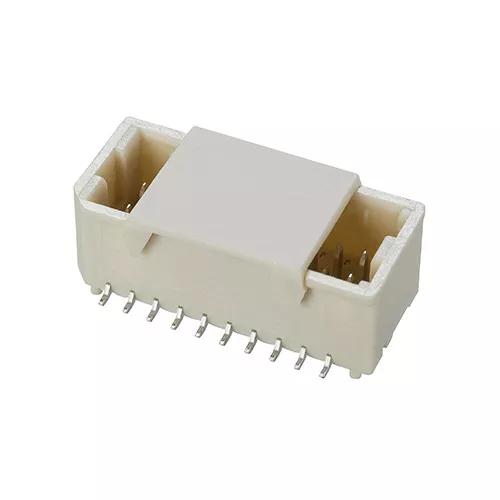

- Packaged in Tape & Reel, with Pick & Place caps.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.00mm (0.039")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.2mm x 0.4mm
Current Rating:
1A per contact
Operating Temperature:
-25°C to +85°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
20
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Cream
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.307g
Overall Dimensions (L x W x D) in mm:
12.30 x 6.30 x 4.35
Height of Connector above PCB:
4.35mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Can you supply a mating connector in a PCB mount Version?
Sorry, but this range is cable-to-board only, we do not have a mating female connector that is board-mounted. For board-to-board, you will need to switch to a different range, such as the M40-310 and M40-320 connectors. You can see them in this section of the Catalog.
Was this answer useful?
How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?
The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.
Was this answer useful?
