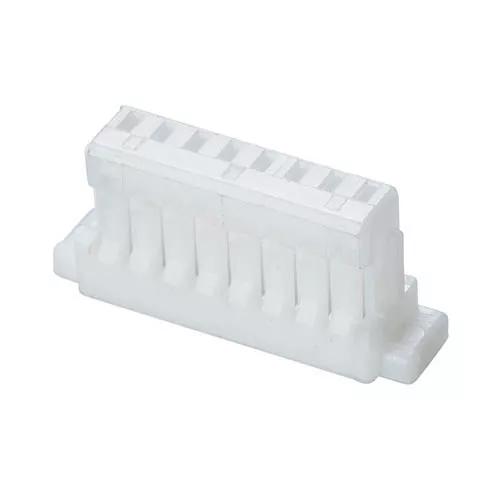

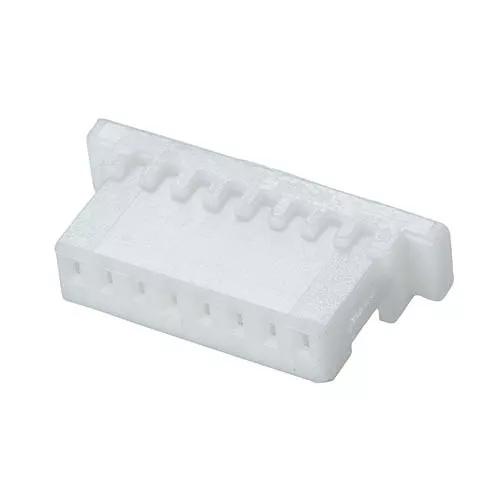

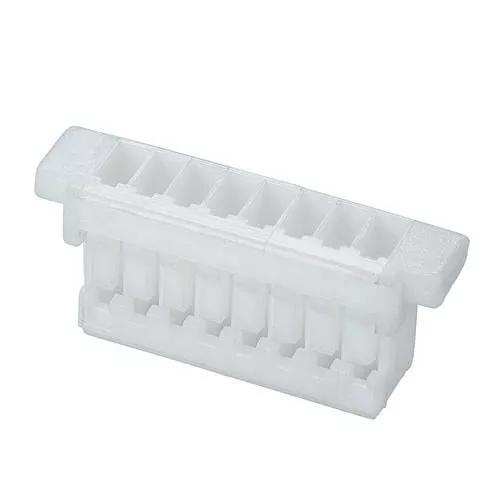

Single Row female crimp housing - 12 contact.
Use with crimp contacts M40-1000046 and pre-crimped contacts M40-9 series.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.2mm x 0.4mm
Number of Rows
1
Connector Orientation
Straight
Country of Origin
TW
Side Stackable
No
Number of Signal Contacts
12
Operating Temperature
-25°C to +85°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1A per contact
Polarised
Yes
Cuttable
No
Materials
Housing Material
Polyamide (Nylon) 66
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Housing Colour
White
Dimensions
Contact Pitch
1.00mm (0.039")
Weight
0.081g
Dimensions
15.00 x 2.75 x 5.00
