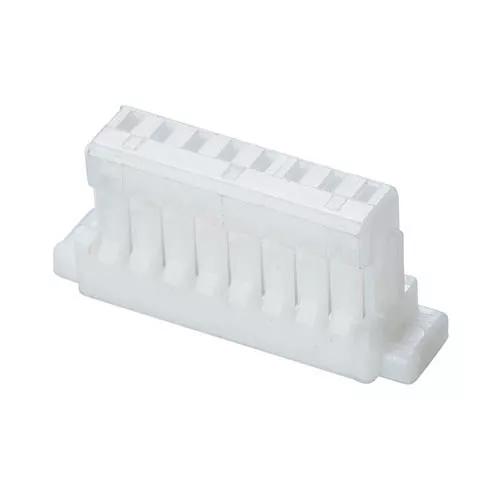

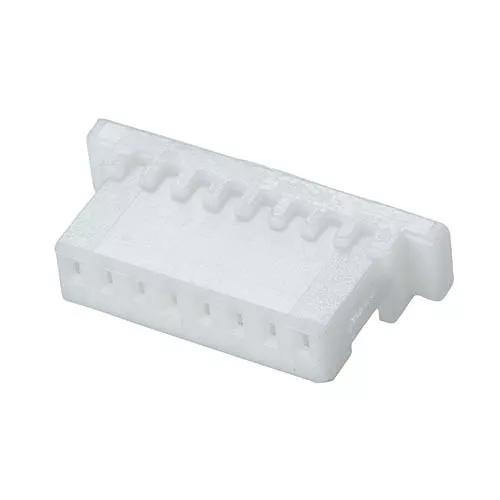

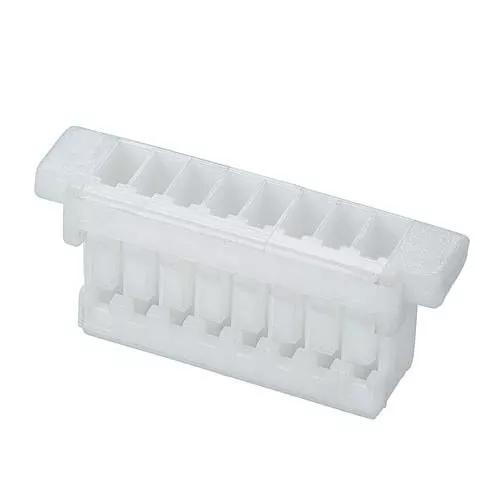

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board
Single Row female crimp housing - 8 contact.
Use with crimp contacts M40-1000046 and pre-crimped contacts M40-9 series.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.2mm x 0.4mm
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
8
Operating Temperature:
-25°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 66
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
White
Dimensions
Contact Pitch:
1.00mm (0.039")
Weight:
0.059g
Dimensions:
11.00 x 2.75 x 5.00
