M40-1100500

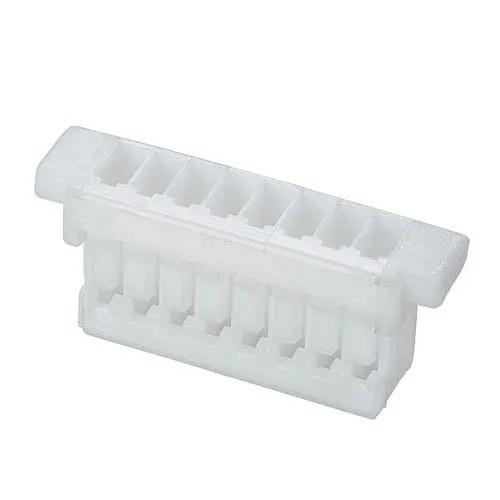

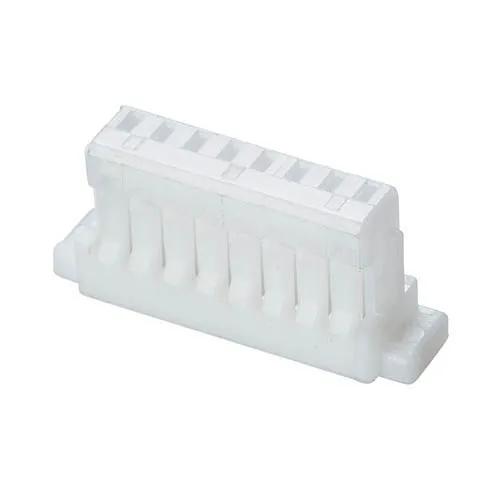

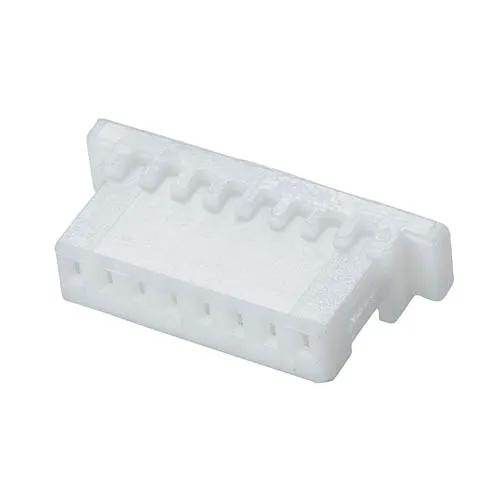

5 Pos. Female SIL Cable Housing

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

  • Single Row female crimp housing – 5 contact.
  • Use with crimp contacts M40-1000046 and pre-crimped contacts M40-9 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.2mm x 0.4mm

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

5

Materials

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

White

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.042g

Overall Dimensions (L x W x D) in mm:

8.00 x 2.75 x 5.00

Availability

5,846 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3599
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2247

Questions & Answers Ask a Question

What is the hand crimp tool for the M40-1000046 crimp contacts?

Unfortunately, this product is too small for us to be able to offer a suitable hand crimp tool. If you wish to do your own crimping, you will need to commission a crimp applicator for use in a crimp machine from a suitable supplier. Alternatively, you can choose a pre-cabled contact from our M40-9xx range. We can also offer pre-cabled contacts in other lengths or full cable assemblies – contact our Experts for assistance.

How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?

The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.
