M3498-94

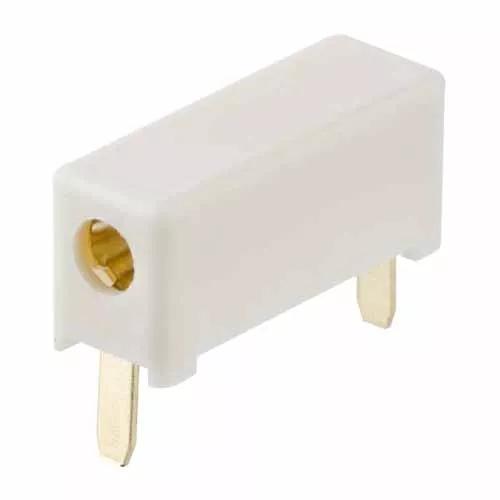

Throughboard Horizontal Test Receptacle for Ø2mm probe

Sockets - Individual Throughboard PCB Socket

Add to Favorites

1,311 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • 2.8mm PC Tail Test Receptacle (Socket, Jack) – Gold finish, White housing.
  • To mate with a Ø2.03mm probe or plug.

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø2.03mm

Current Rating:

5A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Number of Signal Contacts:

1

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

White

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.218g

Overall Dimensions (L x W x D) in mm:

11.50 x 3.95 x 7.89

Height of Connector above PCB:

5.10mm

Length of Throughboard Tail:

2.79mm
