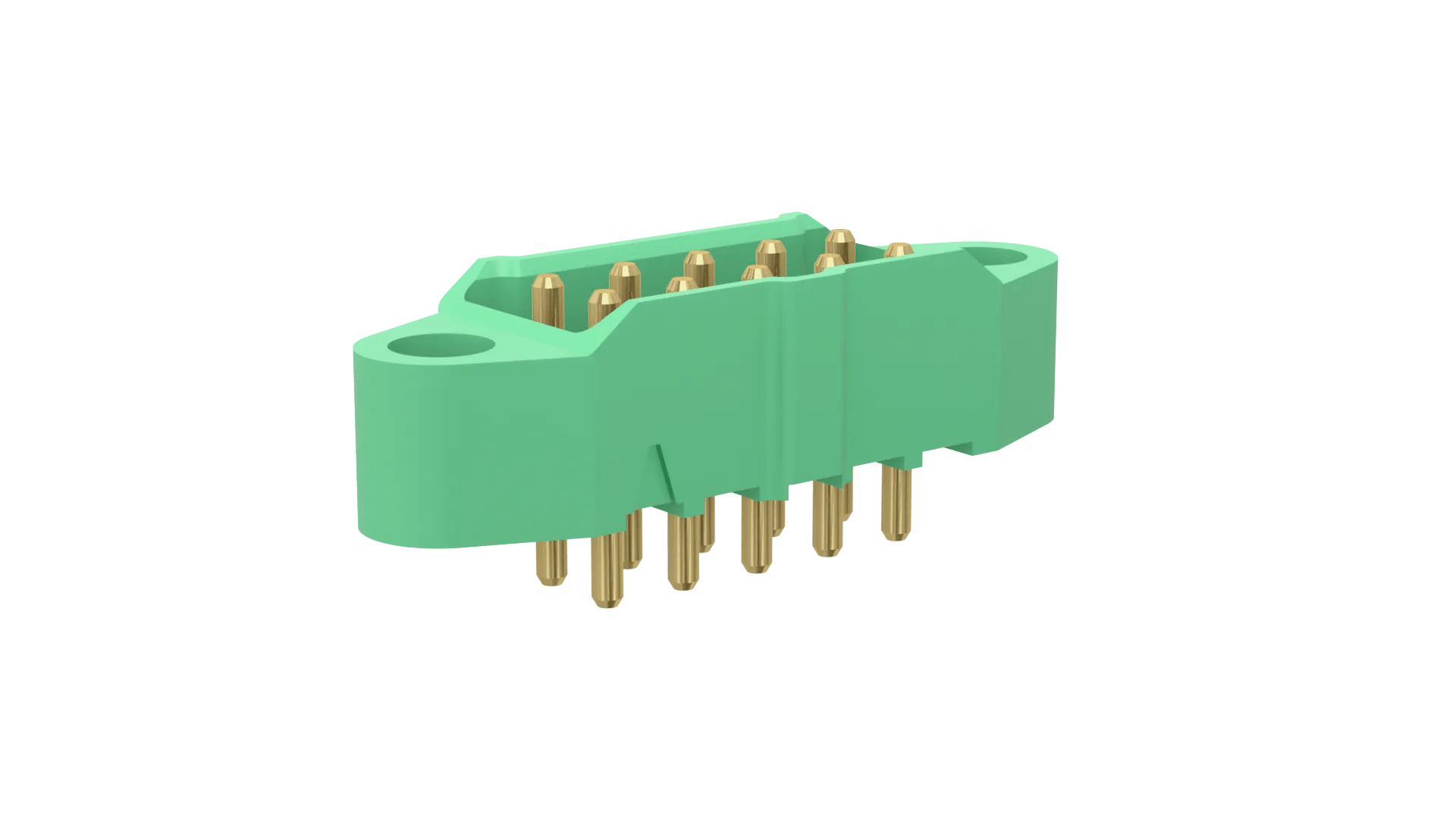

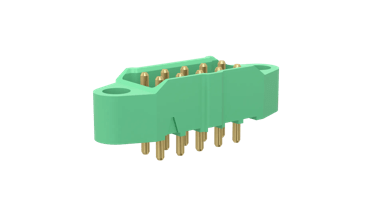

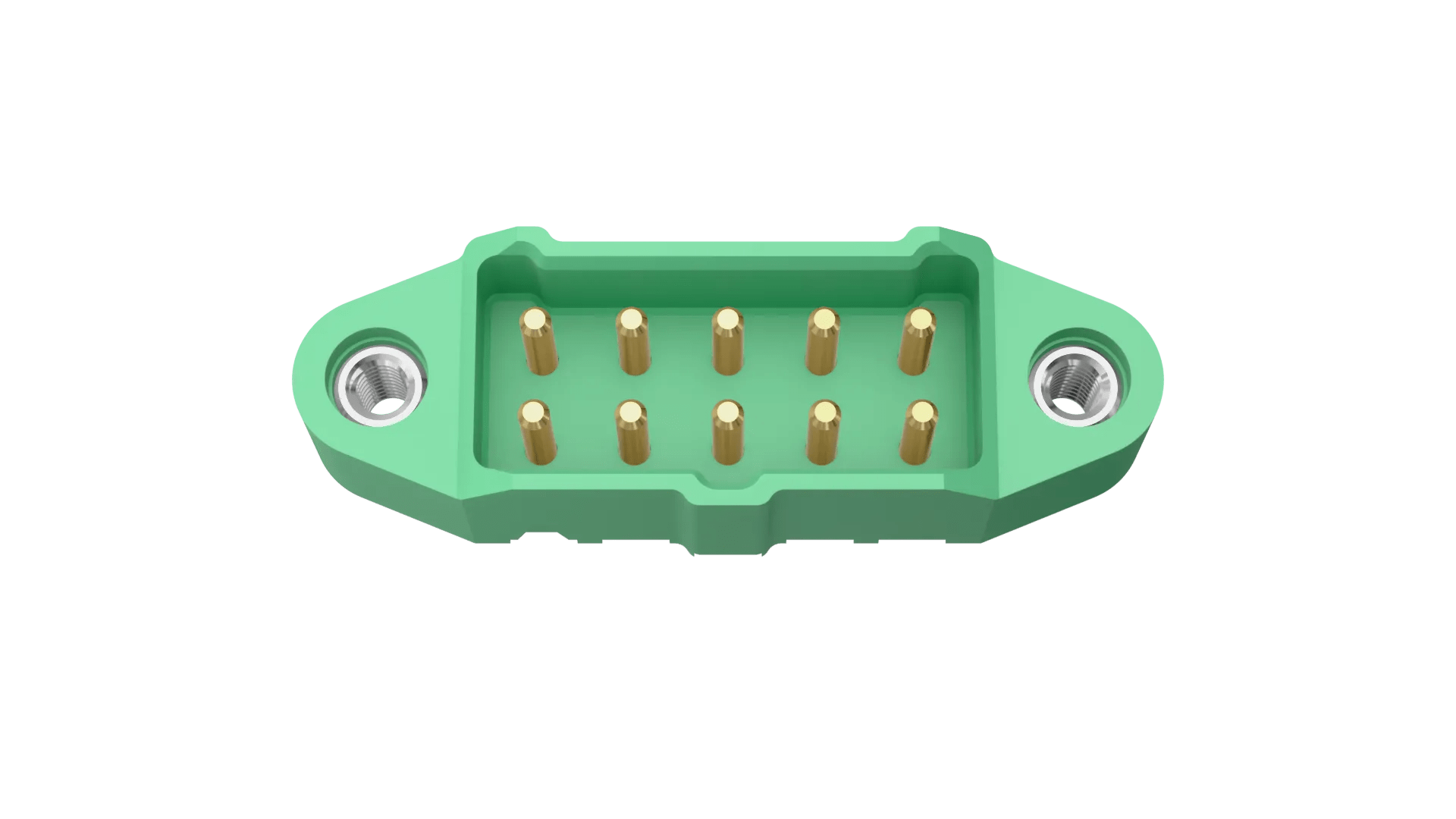

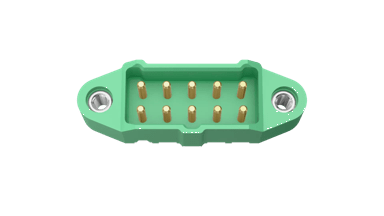

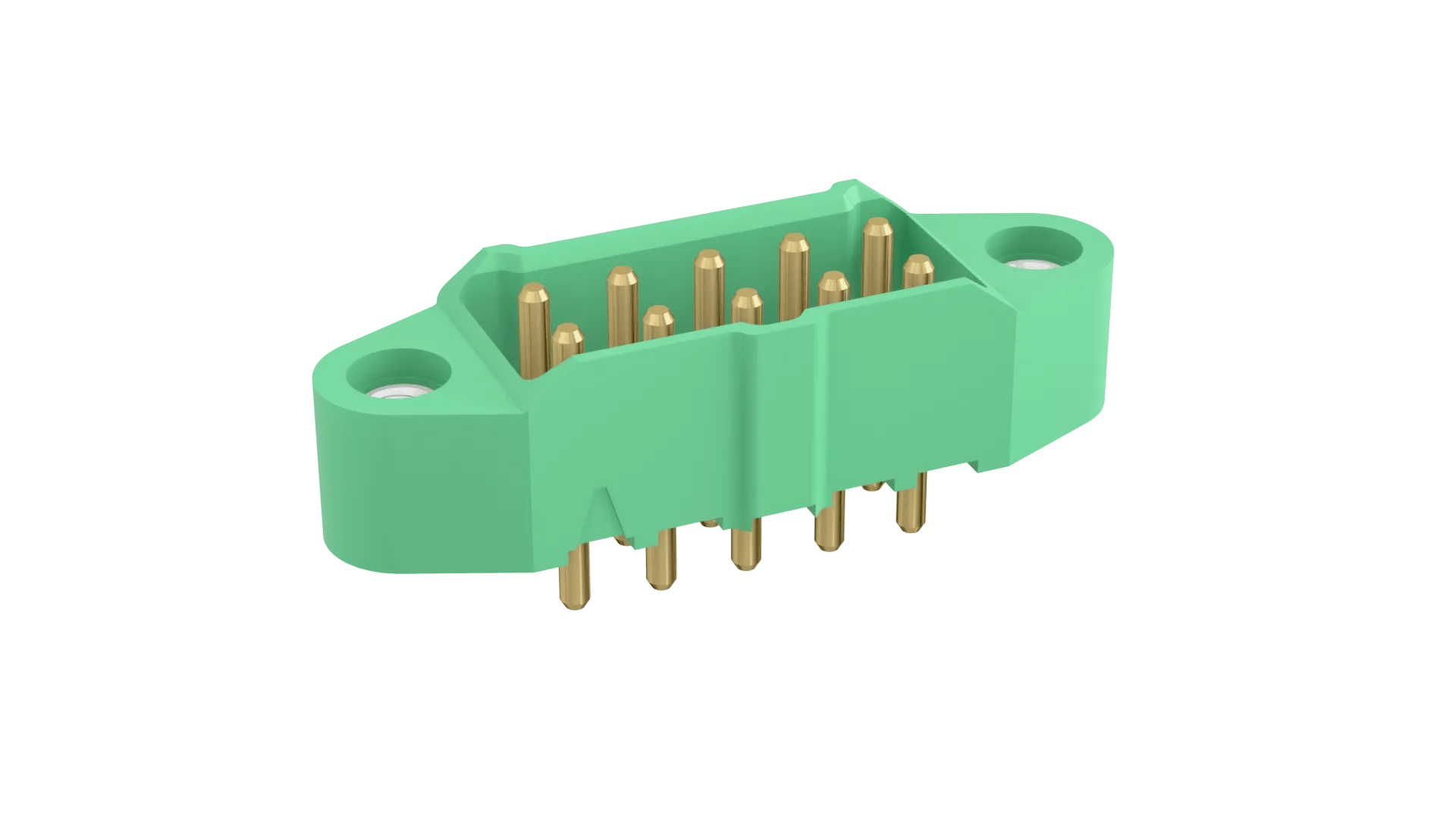

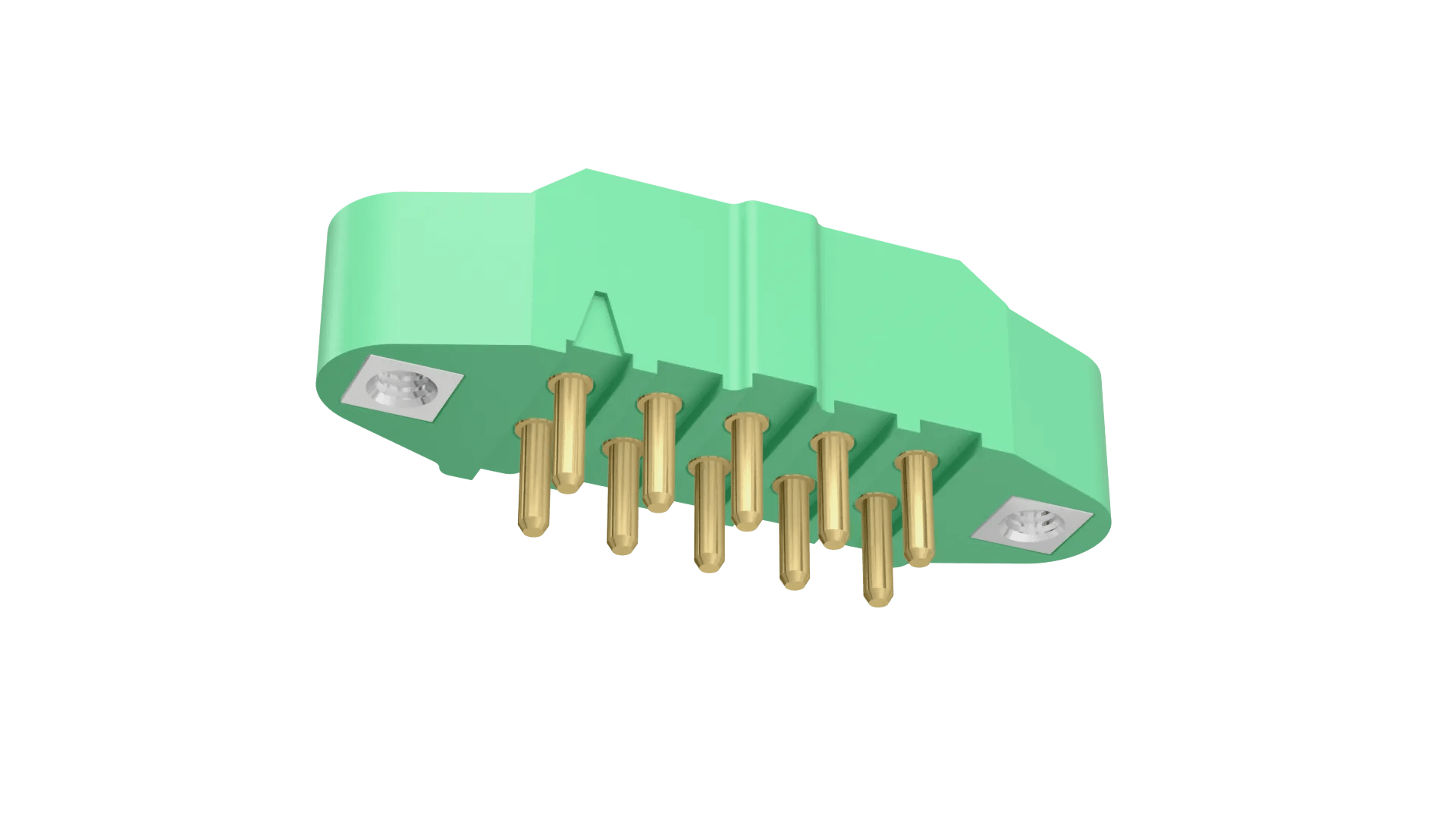

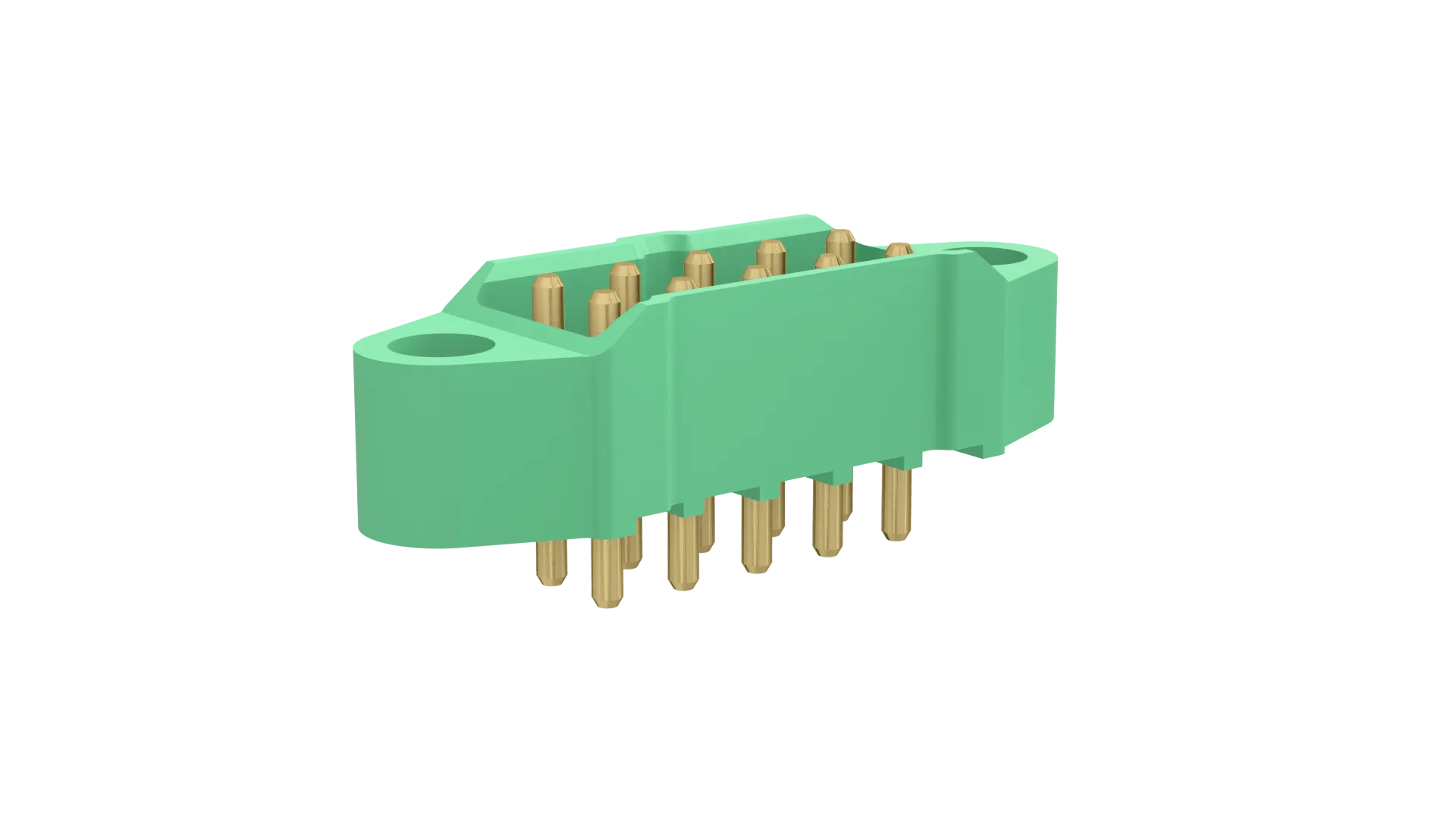

Double Row Vertical Male Throughboard connector with 3.2mm PC Tail - 10 contacts (5+5). Gold finish on contact area and termination.
Polarized housings, with internally threaded jackscrews.
For complete pin numbering or pin out information, see Component Specification C048XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing
Mating Pin Size
Ø1mm
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
10
Operating Temperature
-65°C to +175°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
10A max per contact simultaneous
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
3.00mm (0.118")
Weight
2.037g
Dimensions
27.30 x 9.00 x 10.20
Thread Size
M2
PC Tail Length
3.20mm
Height of Connector above PCB
7.00mm
Downloads
Product Change Notifications
Product Change Notification 13-Dec-2024 - M300 Male Housings and Connectors
Technical Documentation
Technical Drawing / Datasheet - M300-MV31045M1.pdf
C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on M300 contacts
Product Information
Catalog page - M300 Mating Profiles + Pin Numbering
Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability
Product Datasheet - M300 range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M300-MV31045M1 product
RoHS Declaration - M300-MV31045M1
