Home > M300-MV30645M1
Active

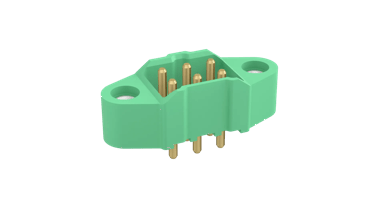

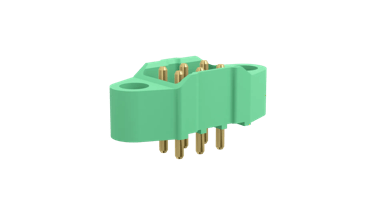

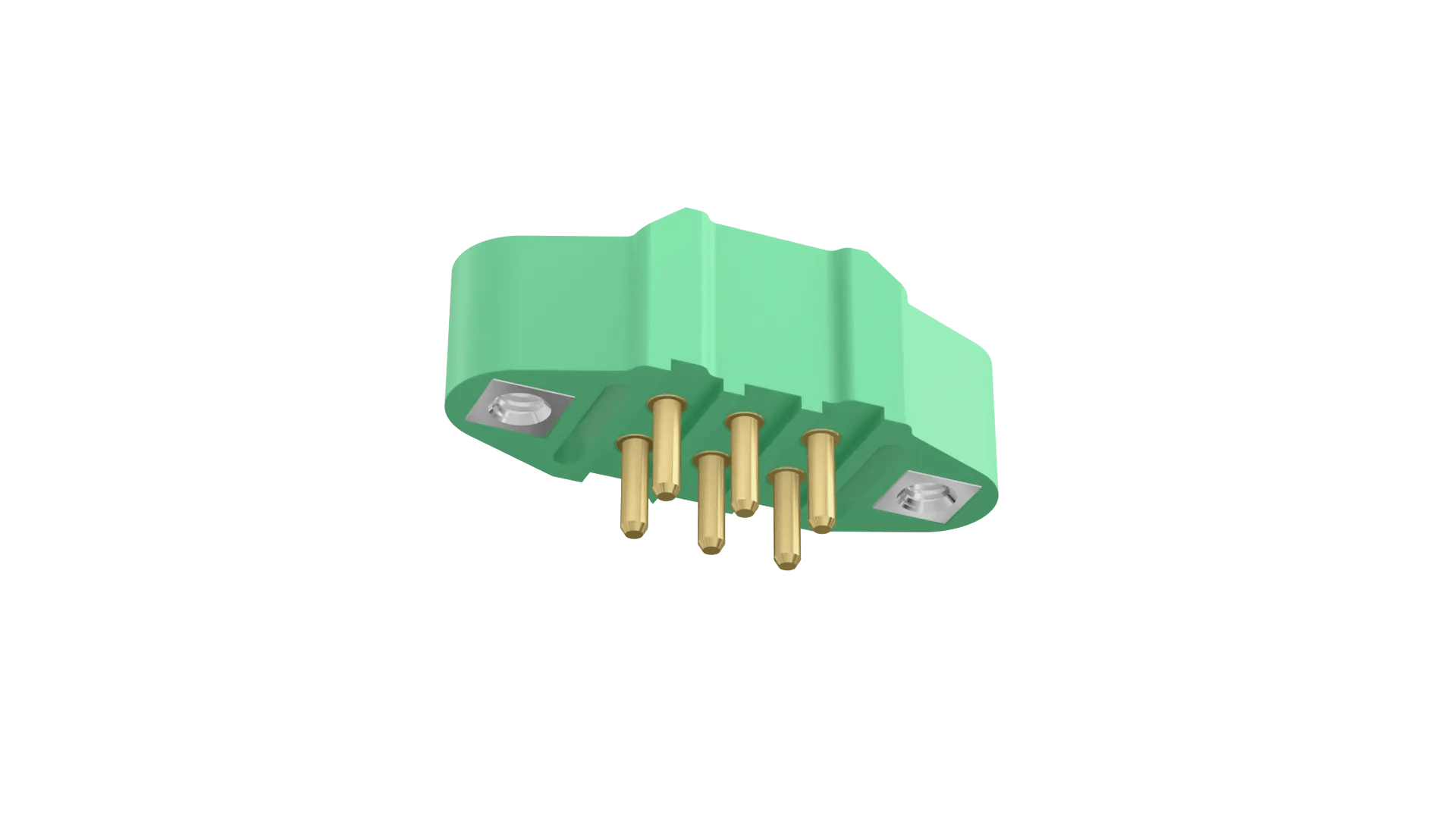

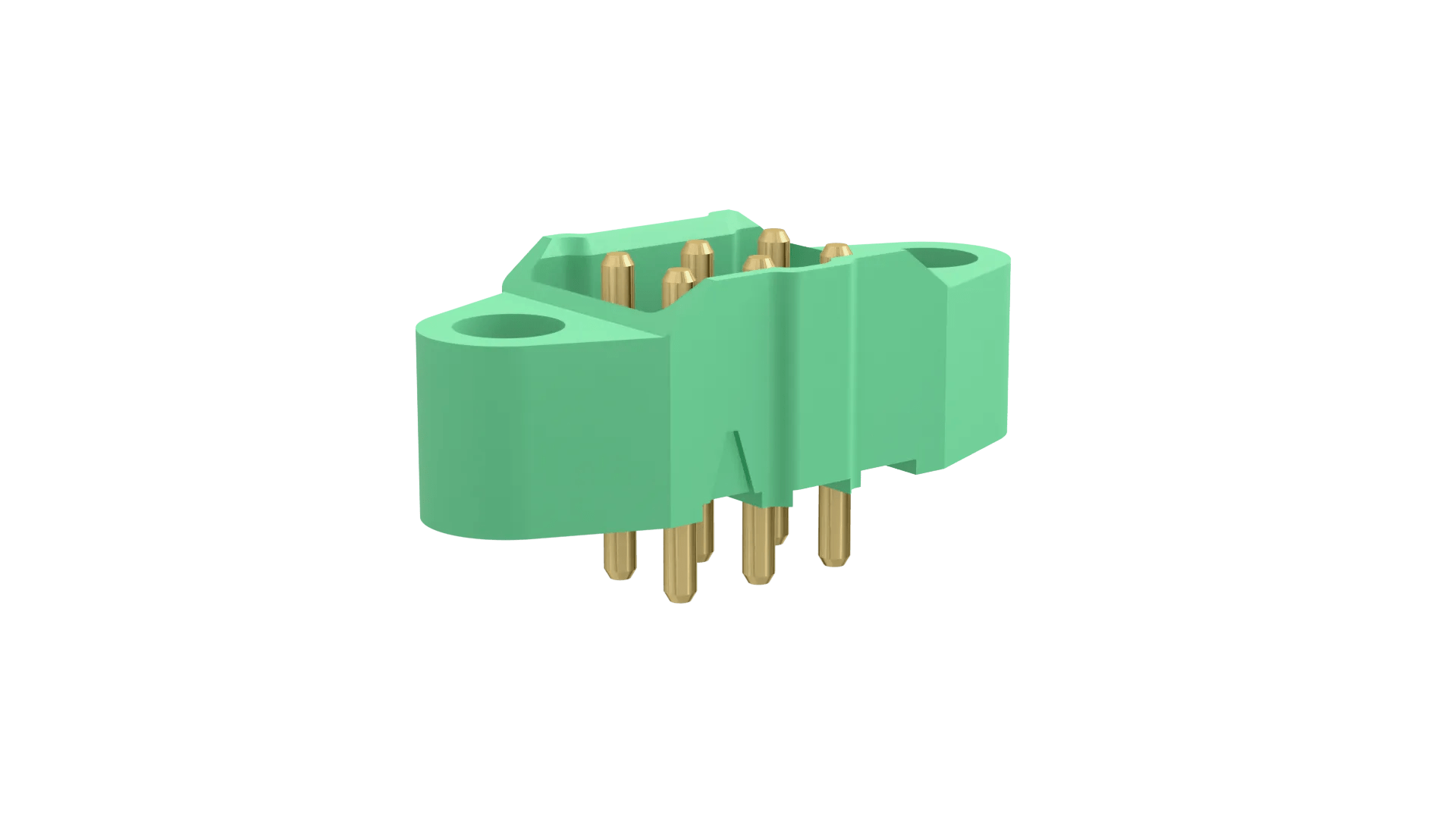

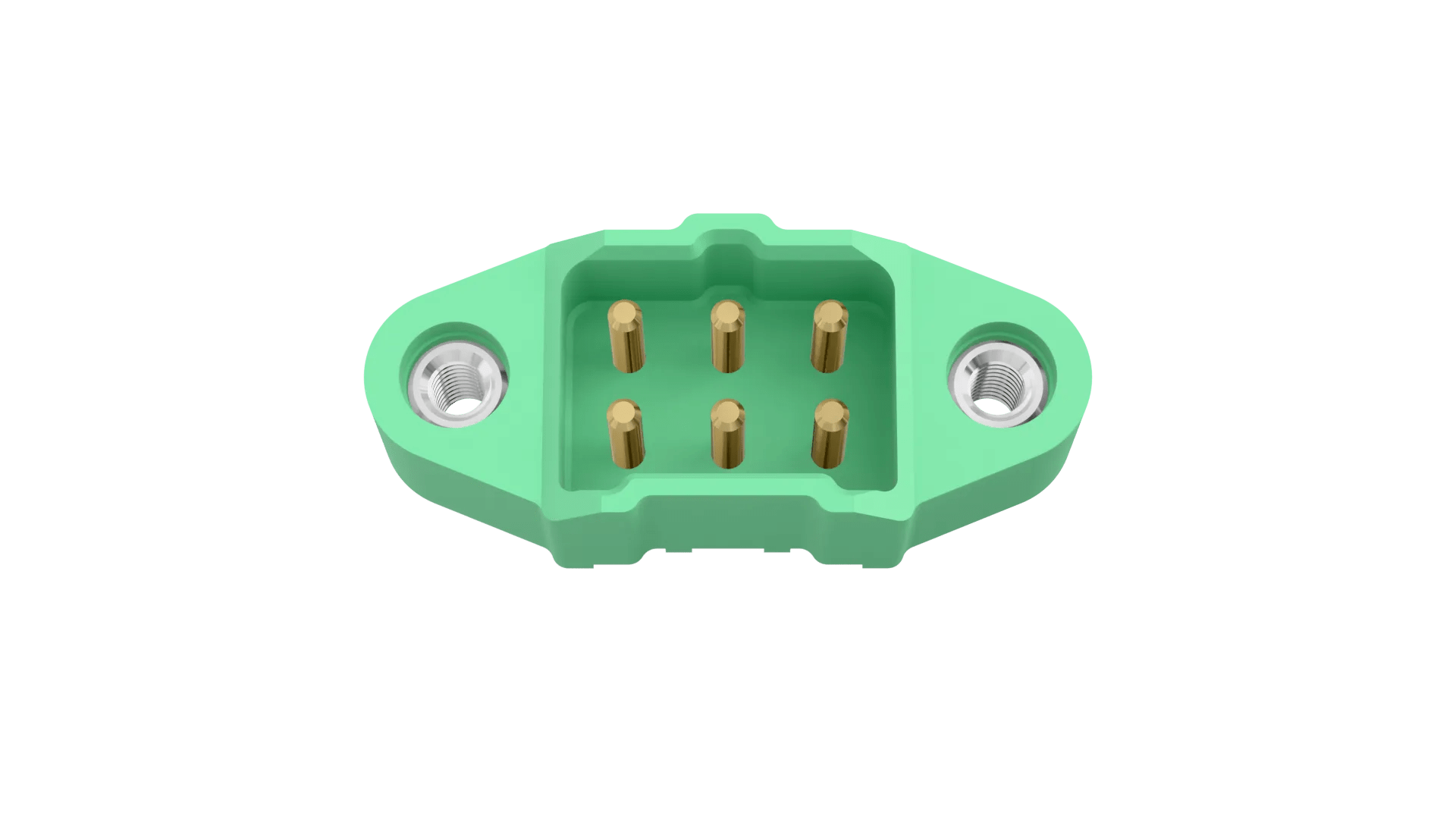

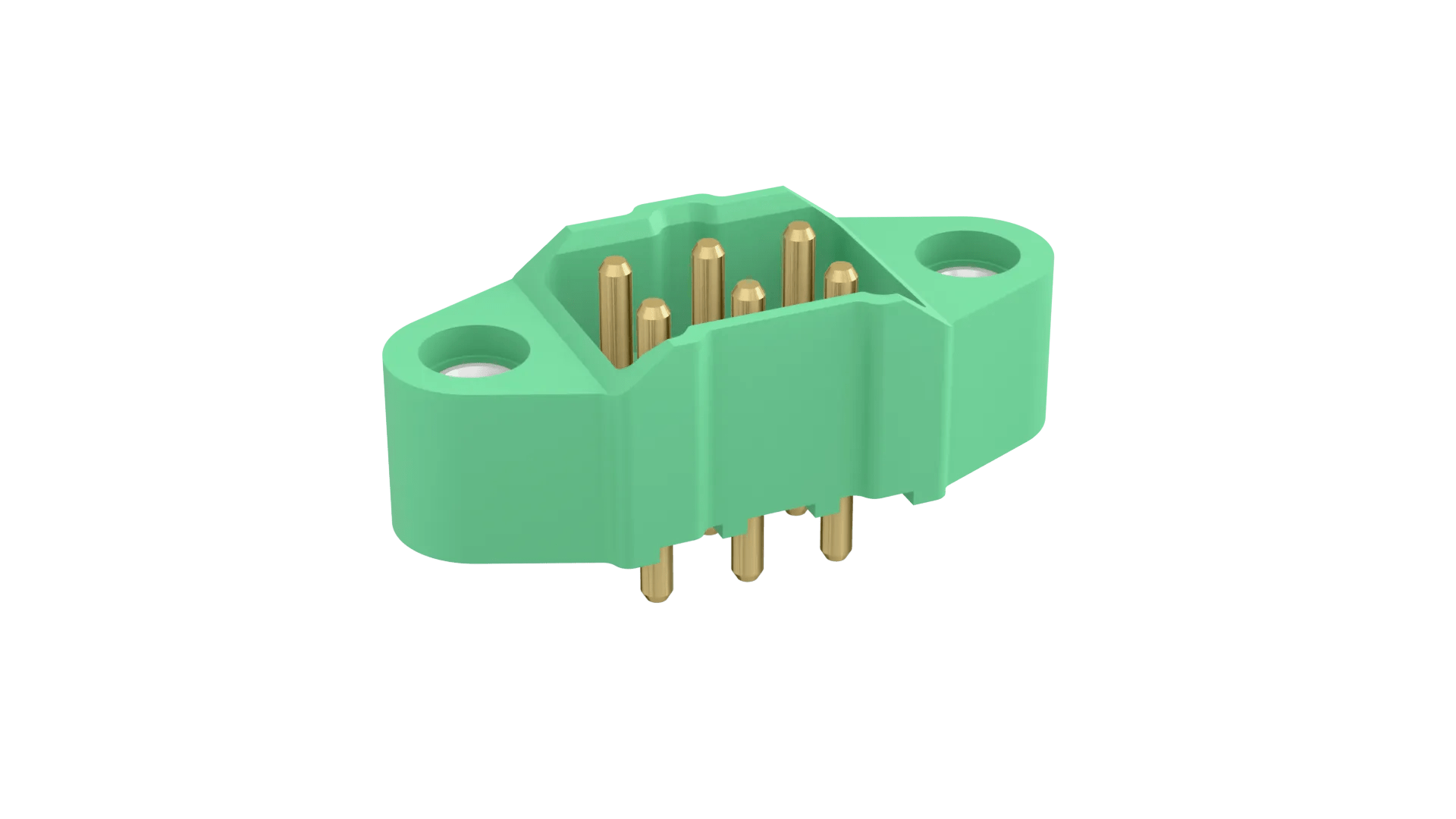

M300-MV30645M1

3+3 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

3.00mm Pitch High-Reliability Connector - M300

  • Double Row Vertical Male Throughboard connector with 3.2mm PC Tail – 6 contacts (3+3). Gold finish on contact area and termination.
  • Polarized housings, with internally threaded jackscrews.
  • For complete pin numbering or pin out information, see Component Specification C048XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.523g

Overall Dimensions (L x W x D) in mm:

21.30 x 9.00 x 10.20

Thread Size:

M2

Height of Connector above PCB:

7.00mm

Length of Throughboard Tail:

3.20mm

Availability

2,814 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1025
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 892
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 372
Distributor Newark
Location USA
Quantity (Updated Daily) 154
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 144
Distributor Farnell
Location Europe
Quantity (Updated Daily) 128
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 60
Distributor Powell Electronics
Location Global
Quantity (Updated Daily) 39

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
