Home > M300-MV10345M1
Active Product

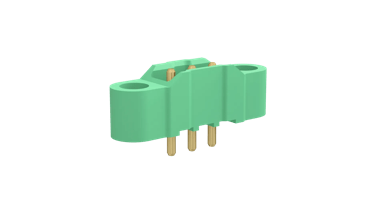

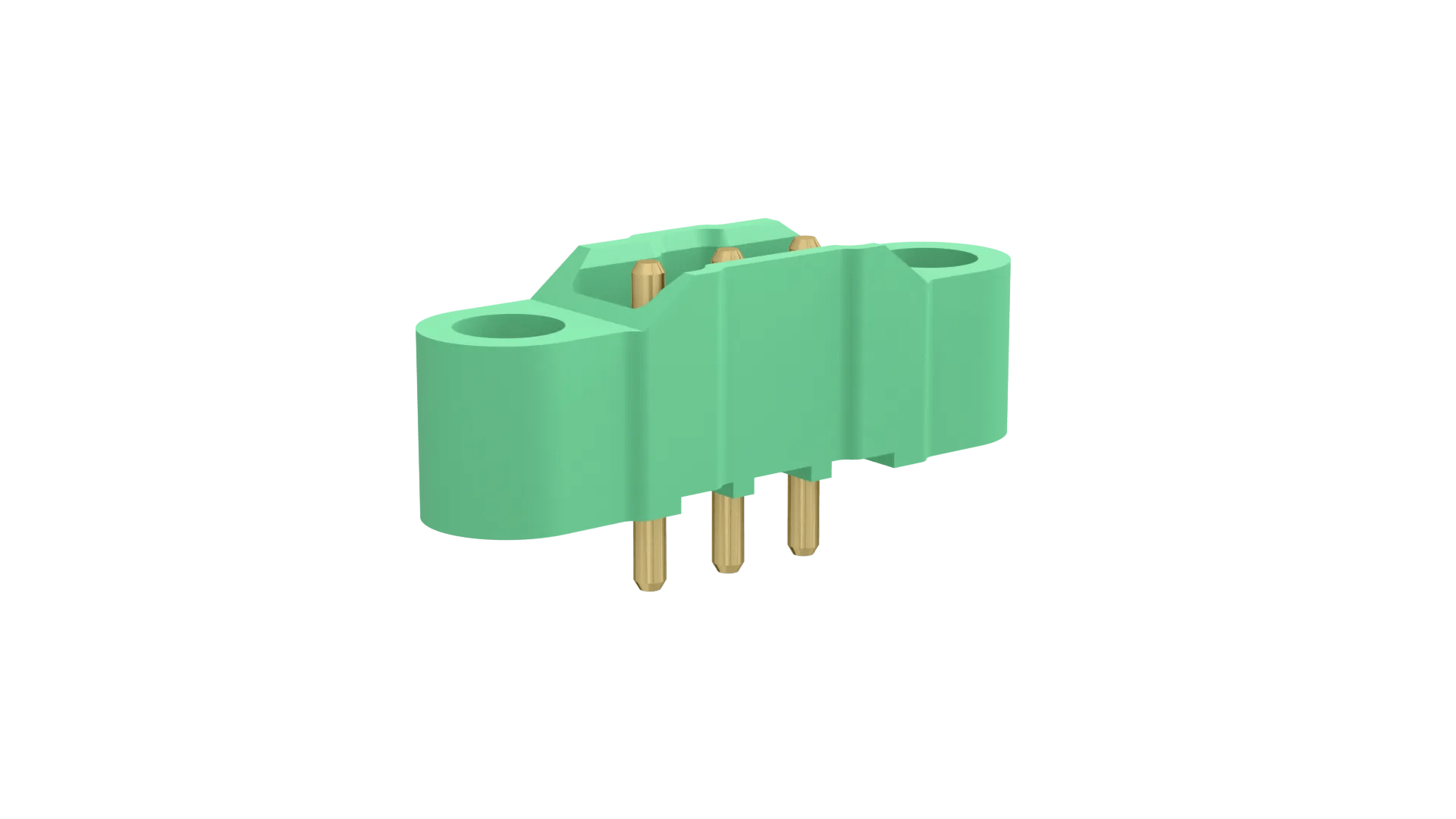

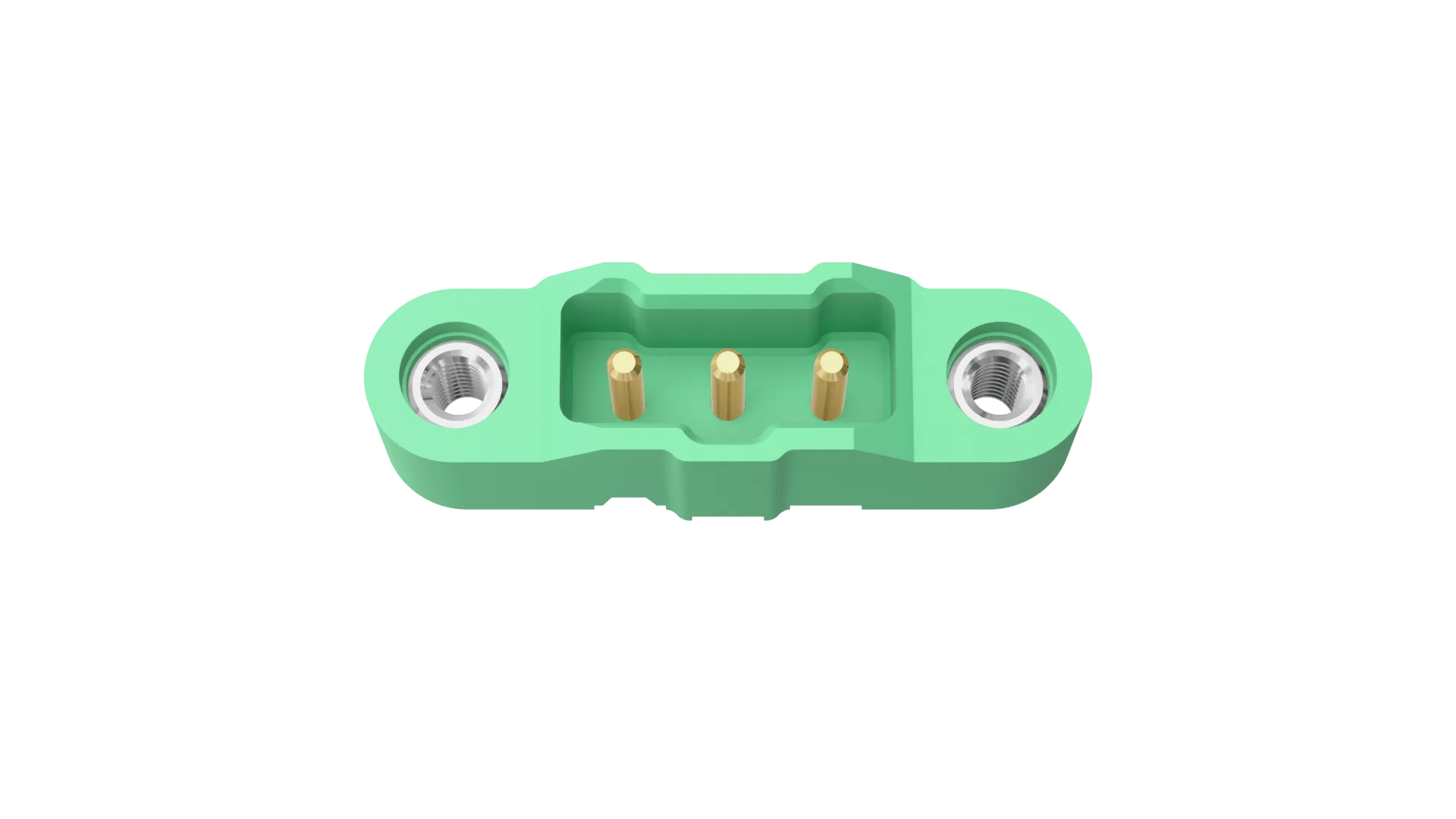

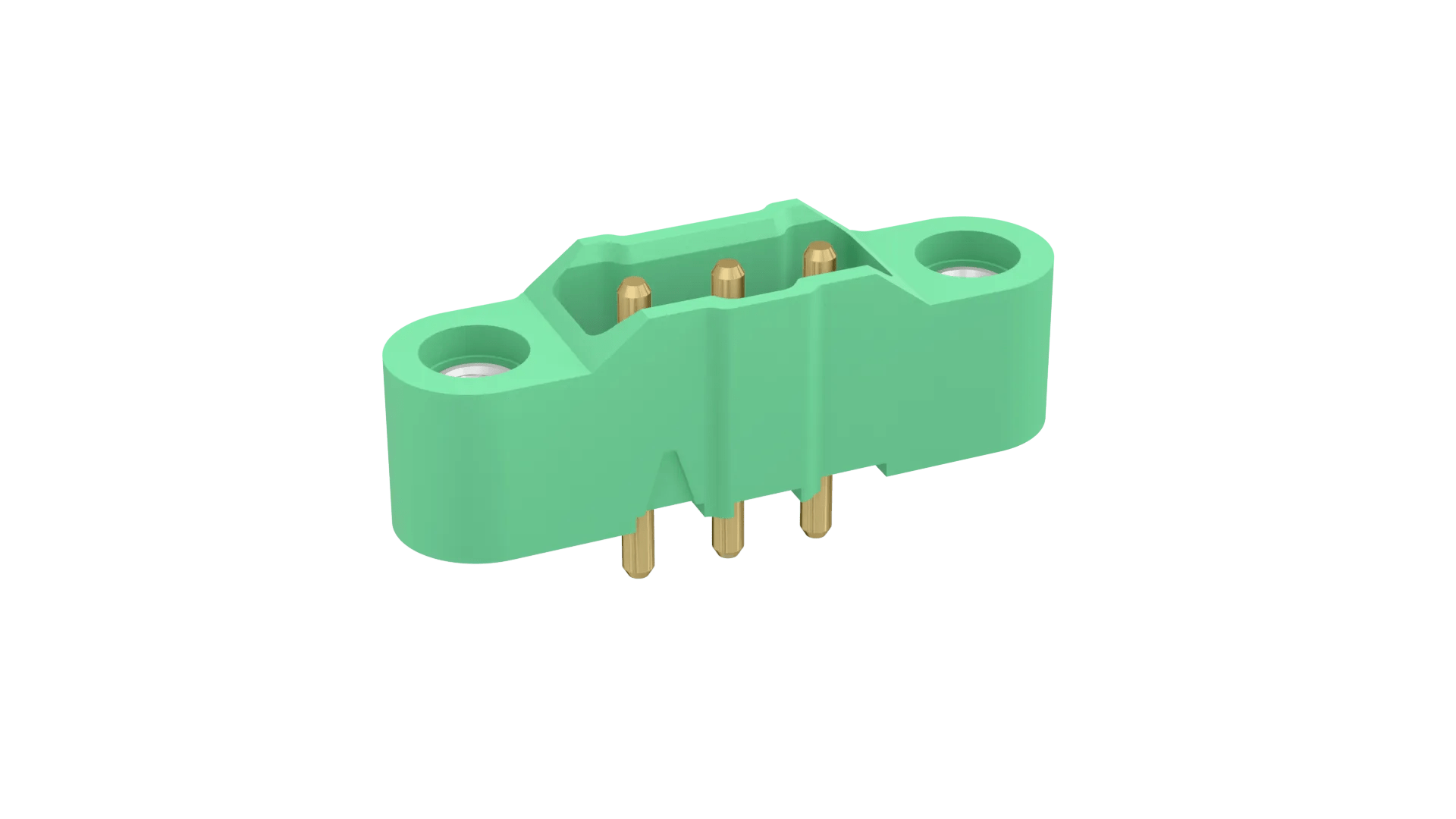

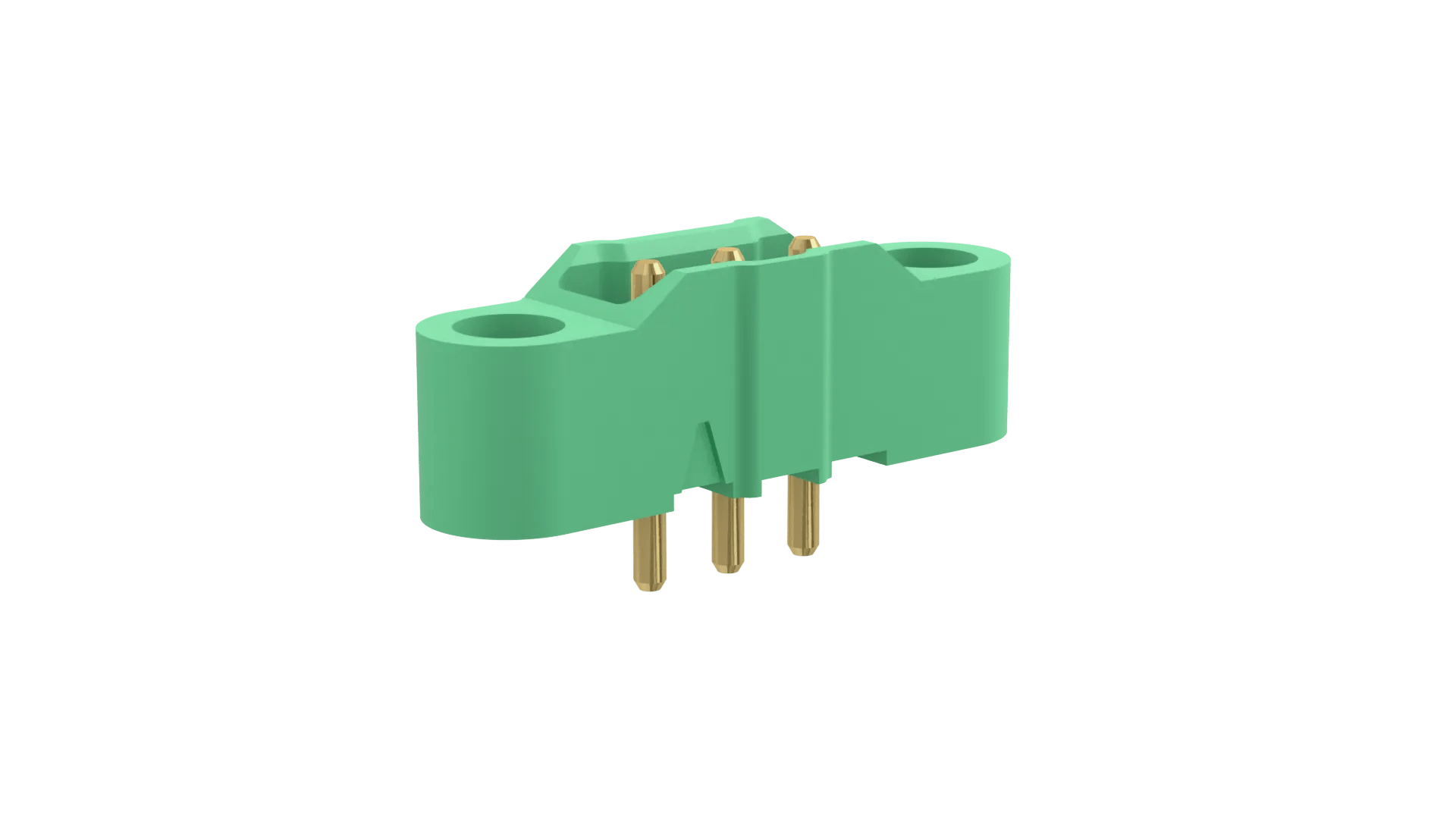

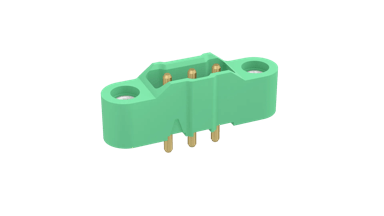

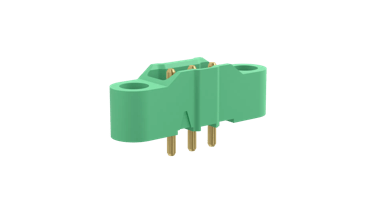

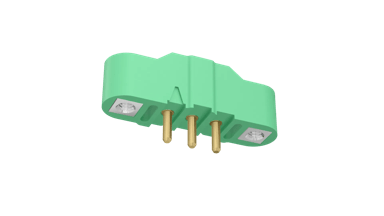

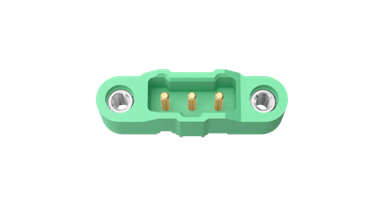

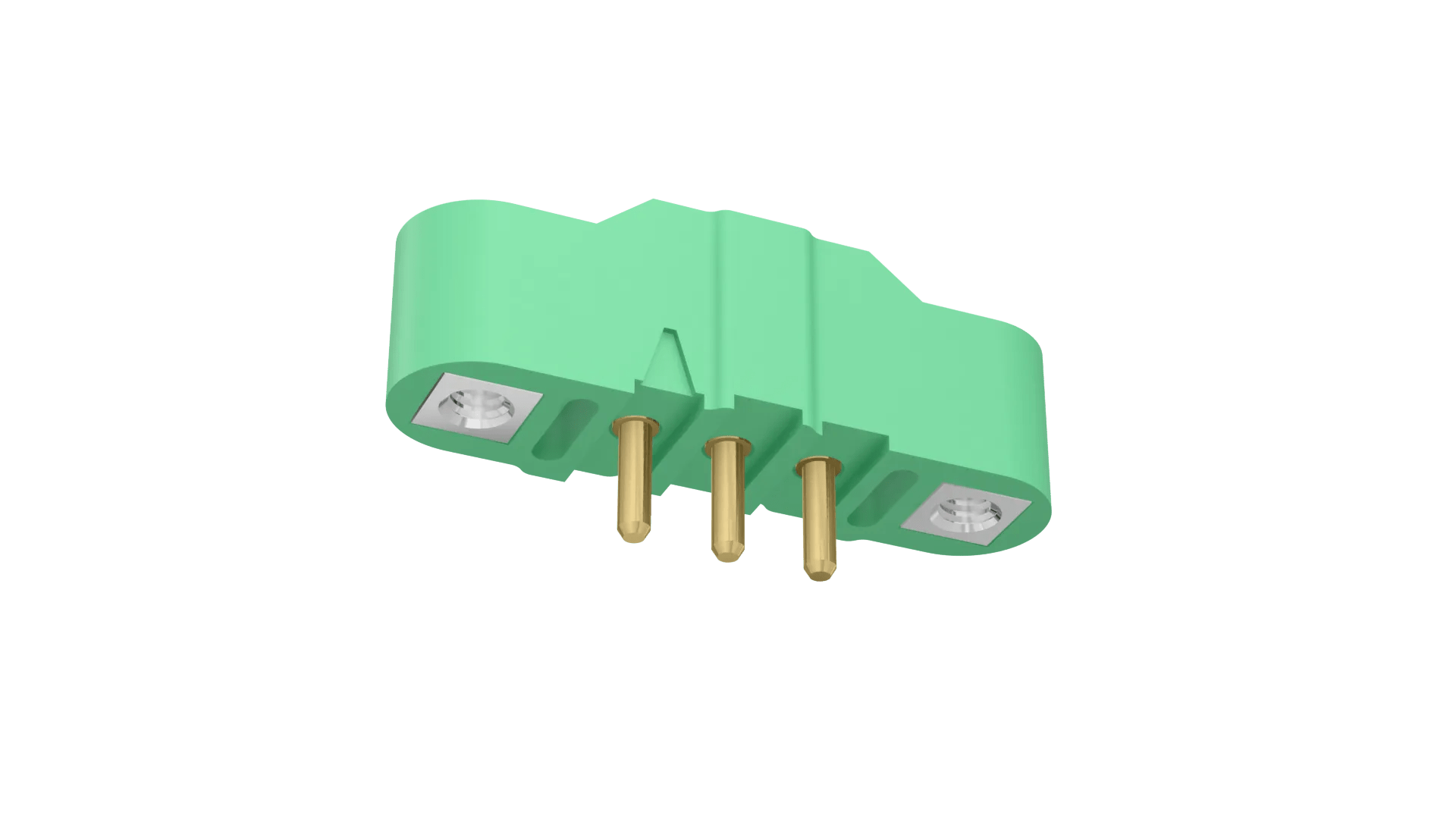

M300-MV10345M1

3 Pos. Male SIL Vertical Throughboard Conn. Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Add to Favorites

Loading…   Check availability

4 similar products View products

Traceparts account required

Product Description

  • Single Row Vertical Male Throughboard connector with 3.2mm PC Tail – 3 contacts. Gold finish on contact area and termination.
  • Polarized housings, with internally threaded jackscrews.
  • For complete pin numbering or pin out information, see Component Specification C048XX.

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

3

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.161g

Overall Dimensions (L x W x D) in mm:

21.30 x 6.00 x 10.20

Thread Size:

M2

Height of Connector above PCB:

7.00mm

Length of Throughboard Tail:

3.20mm

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
