M300-MC21005M1-0150L

5+5 Pos. Male DIL 20AWG Cable Assembly, 150mm, single-end, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Add to Favorites

Made to order

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

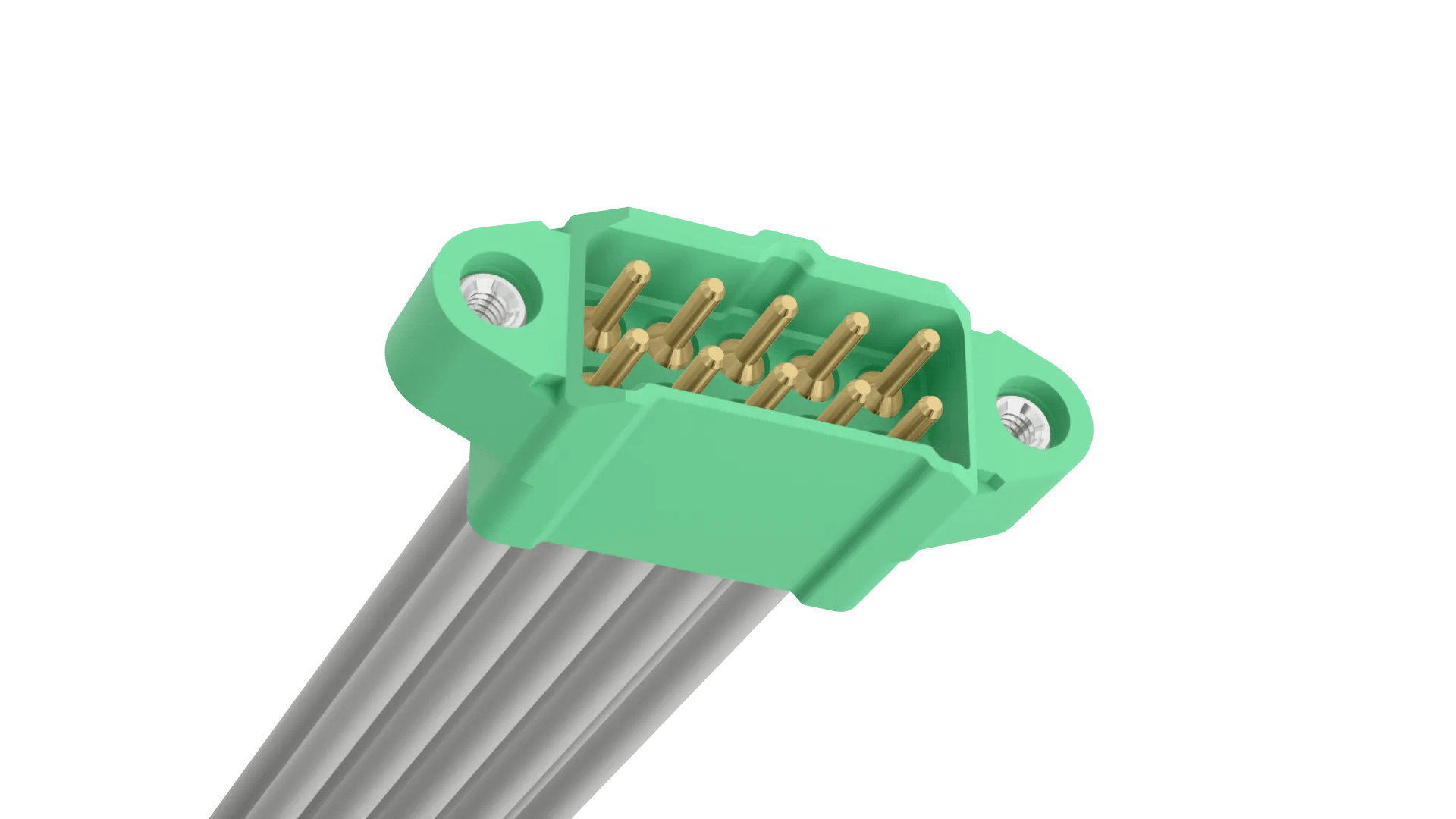

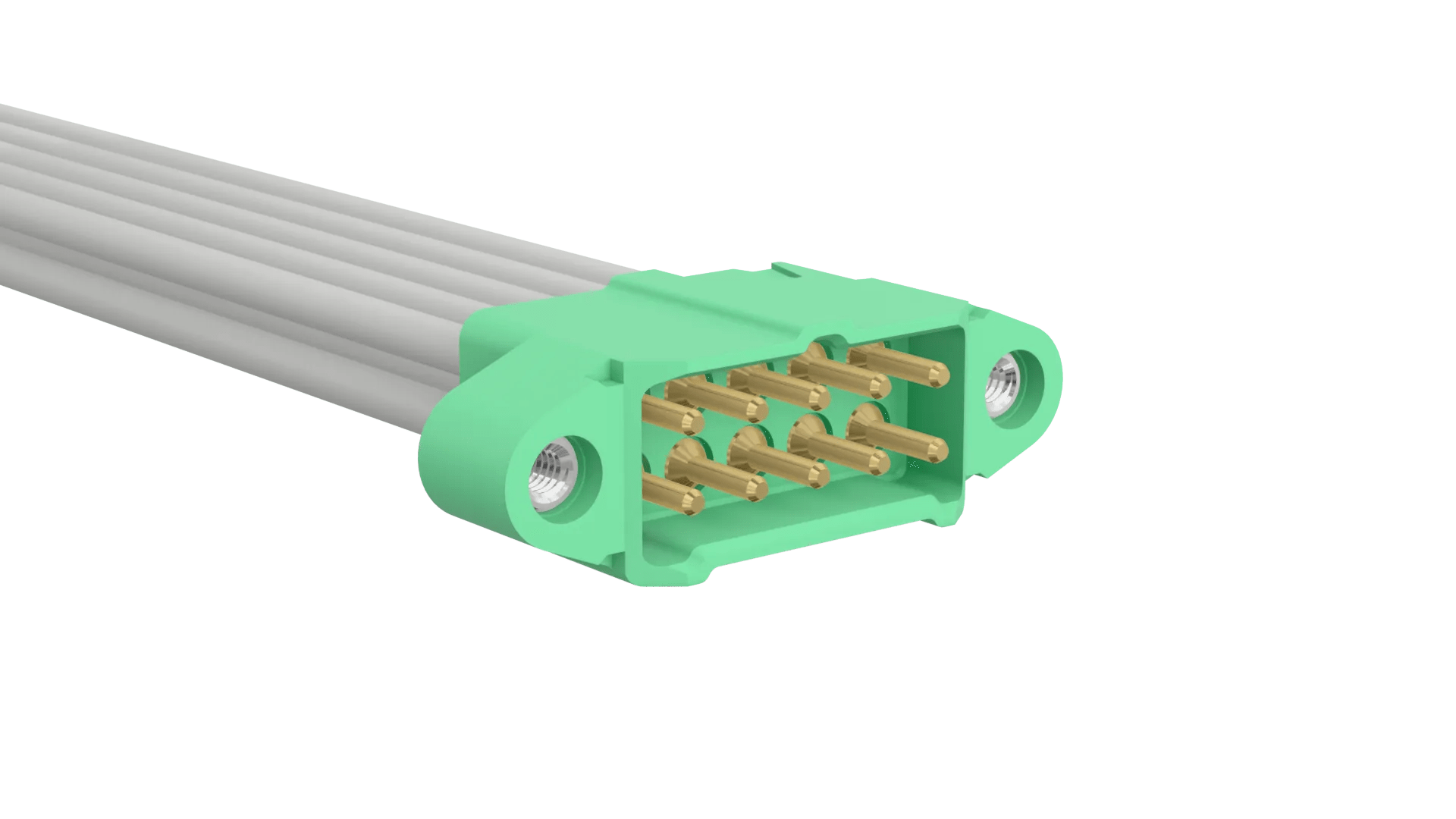

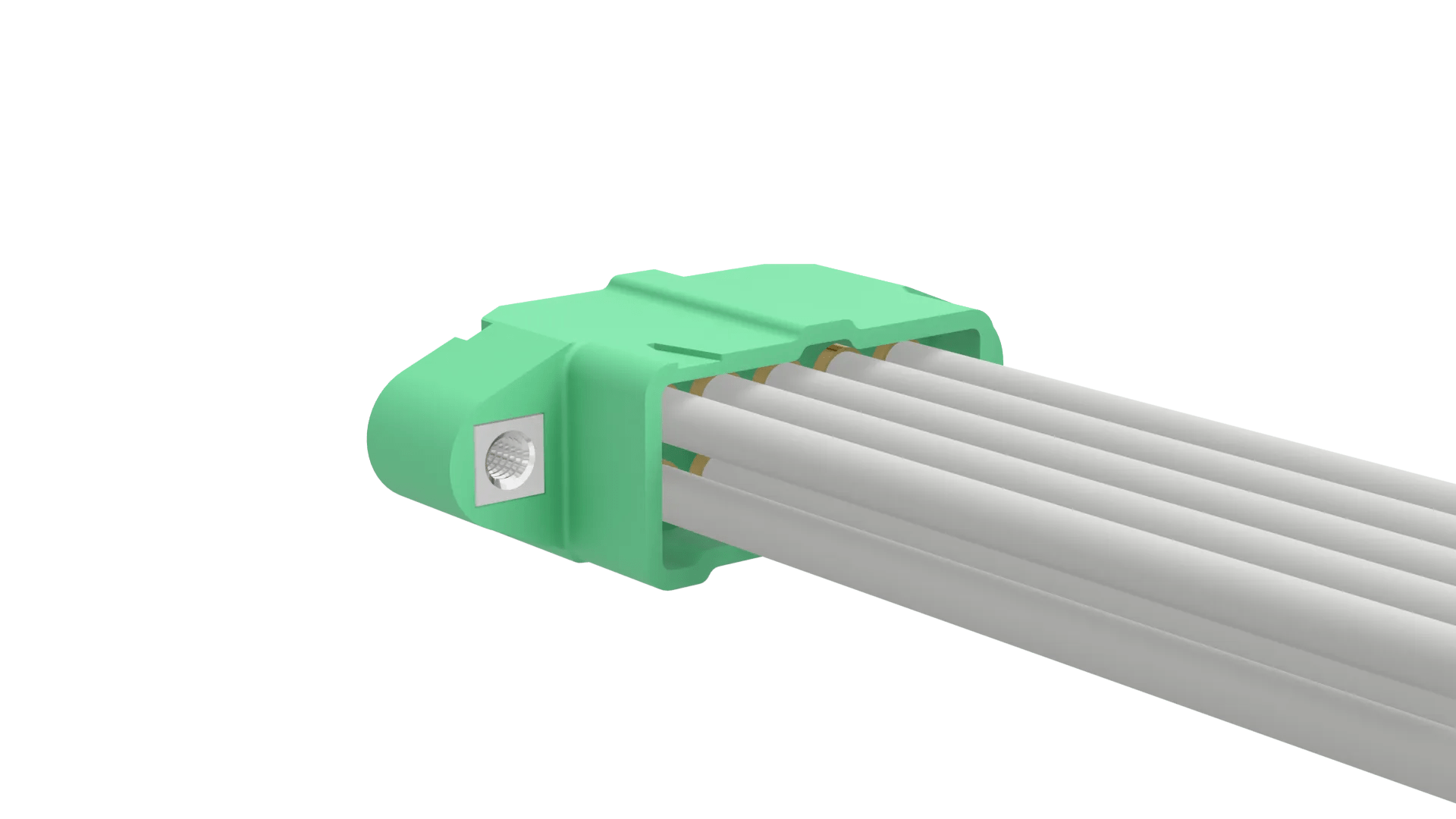

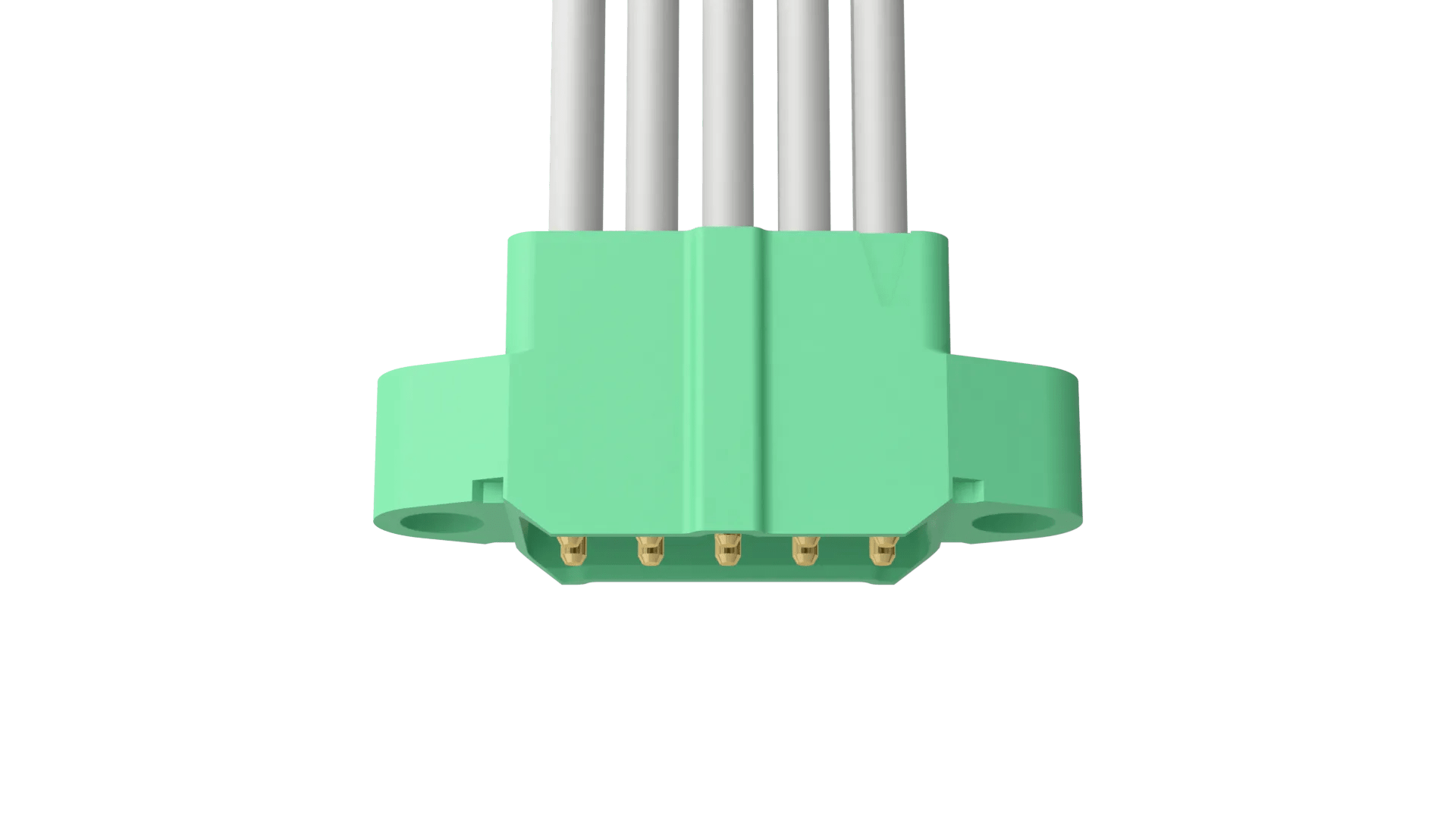

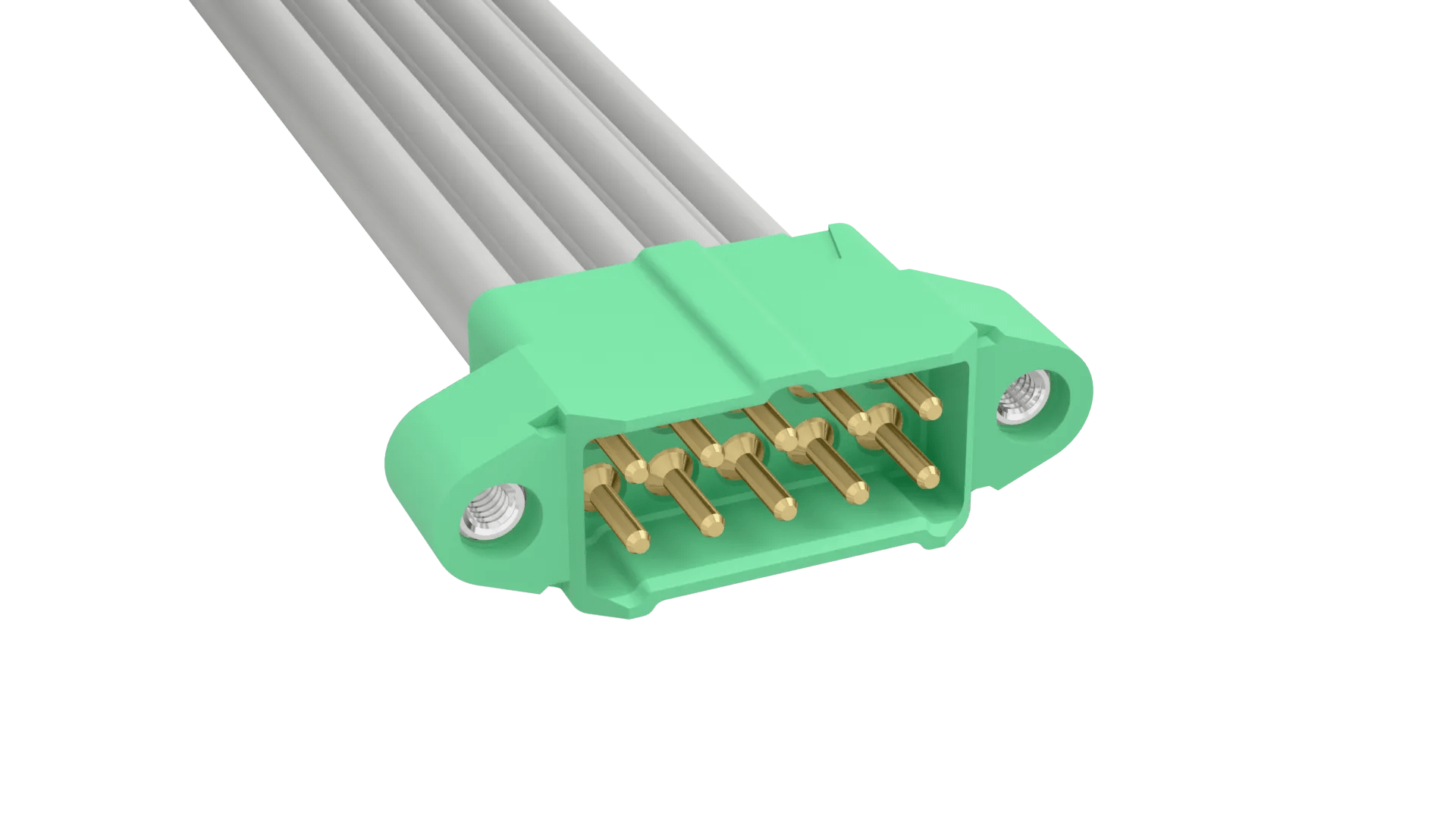

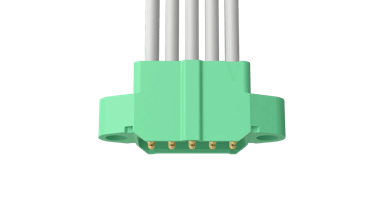

  • Male Single-Ended with white 20 AWG cable, 150mm long – 10 contacts (5+5). Fitted with internally threaded jackscrew fixings. Gold finish on connector contact area.
  • Manufactured with the M300-1010045 crimp contacts, M300-3241096M1 Double Row crimp housing.
  • For complete pin numbering or pin out information, see Component Specification C048XX.

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

20AWG

Mating Pin Size:

Ø1mm

Current Rating:

8A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

14.71g

Overall Dimensions (L x W x D) in mm:

150.00 x 27.30 x 9.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Was this answer useful?

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
