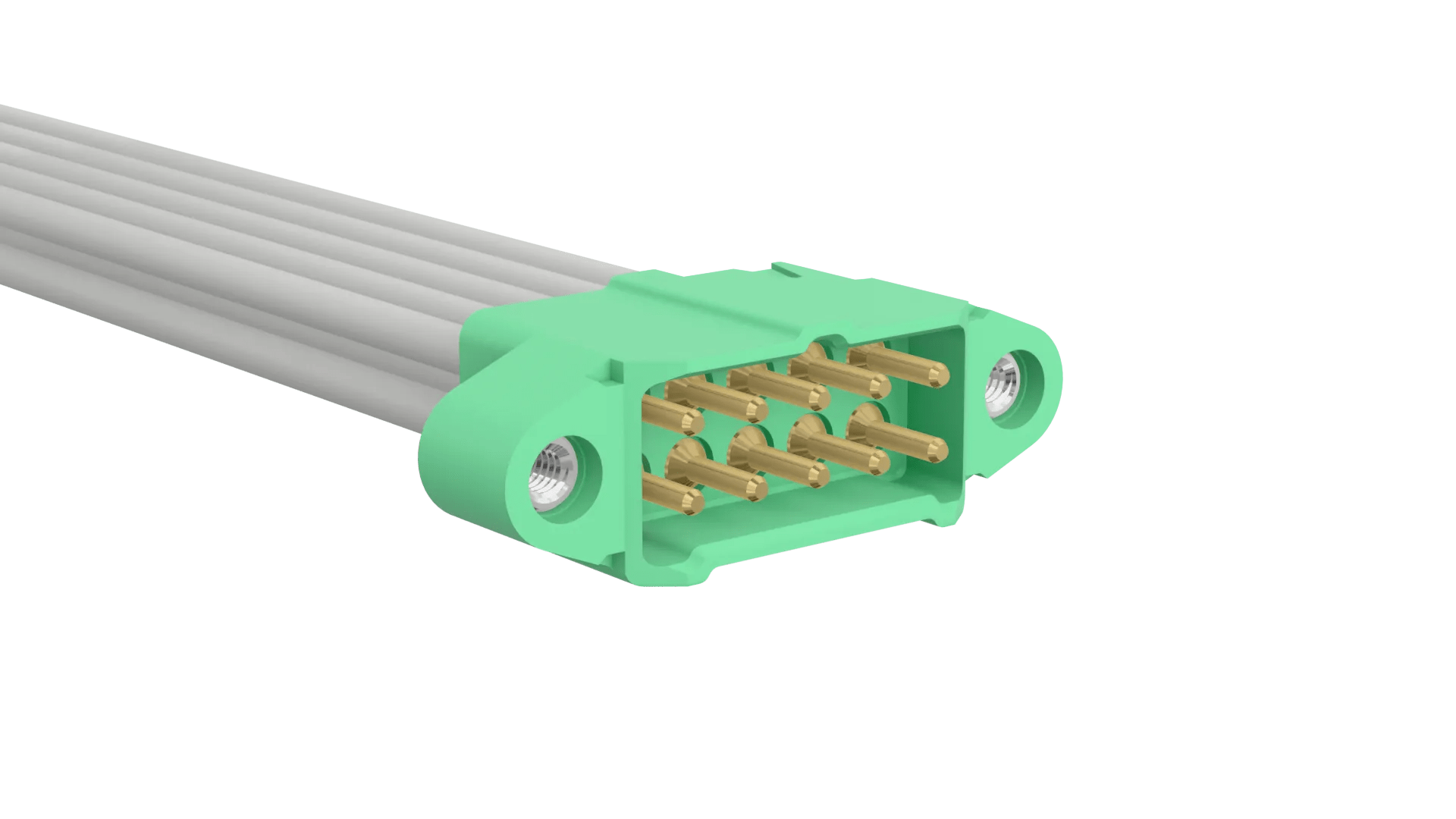

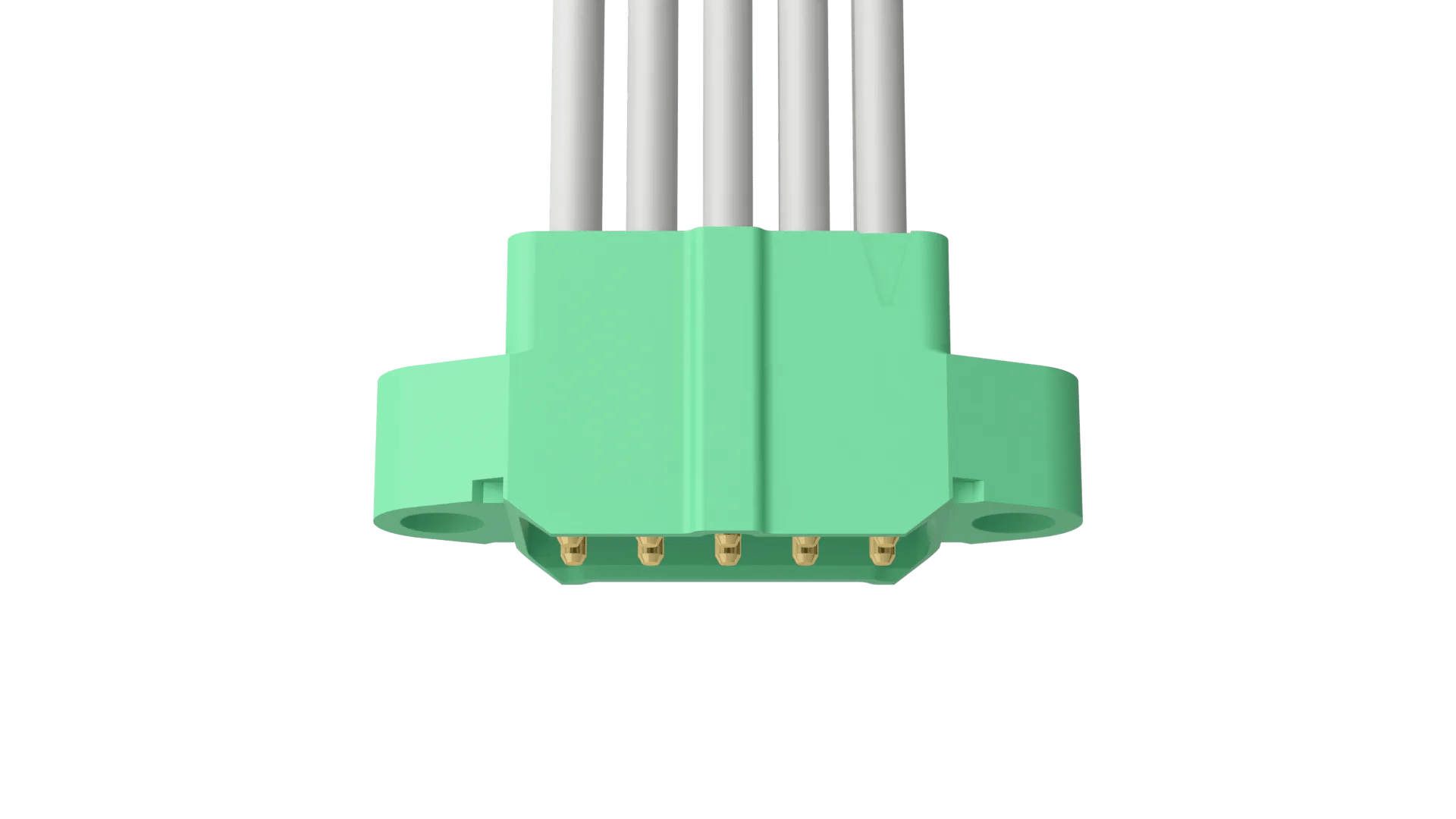

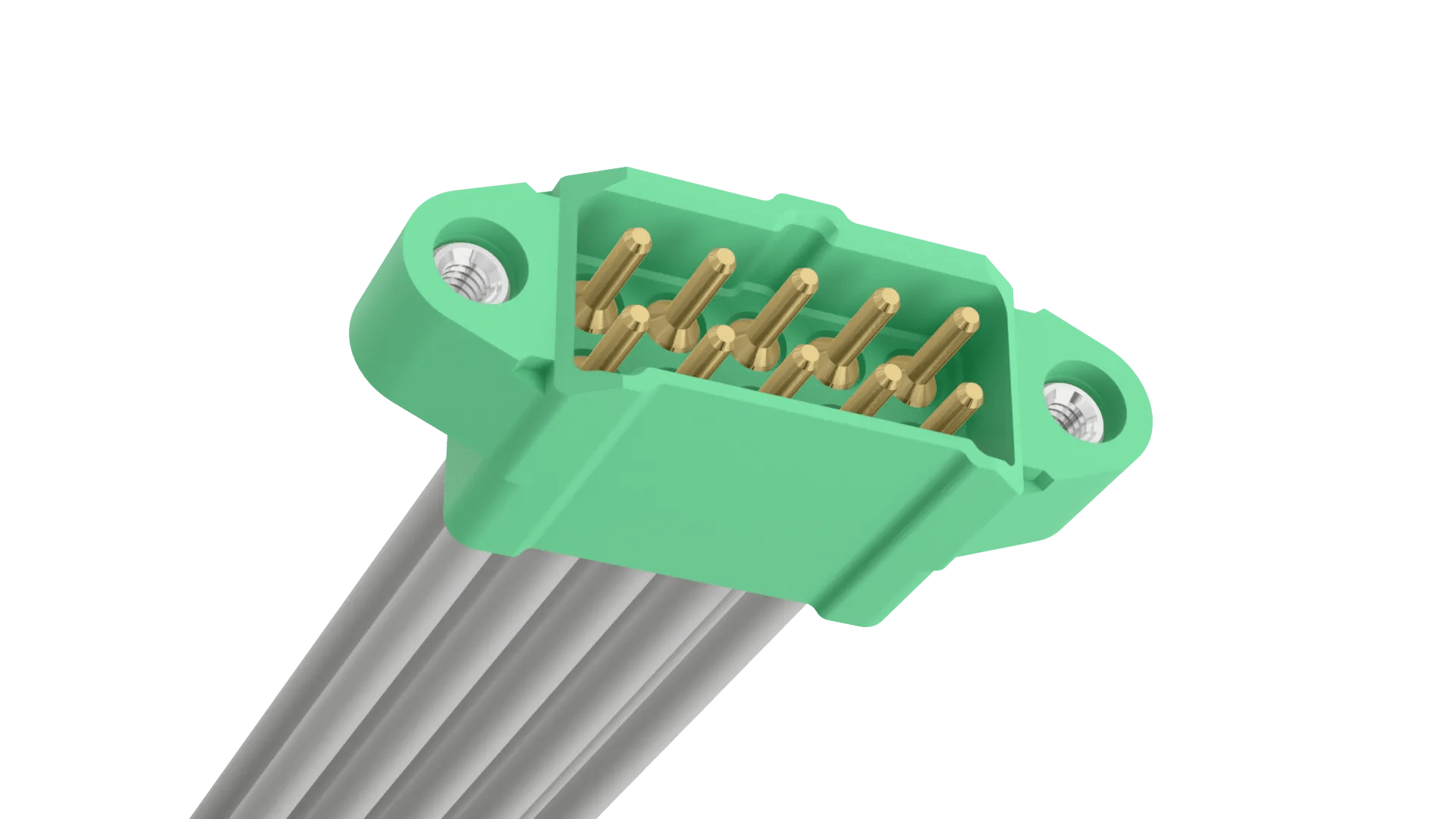

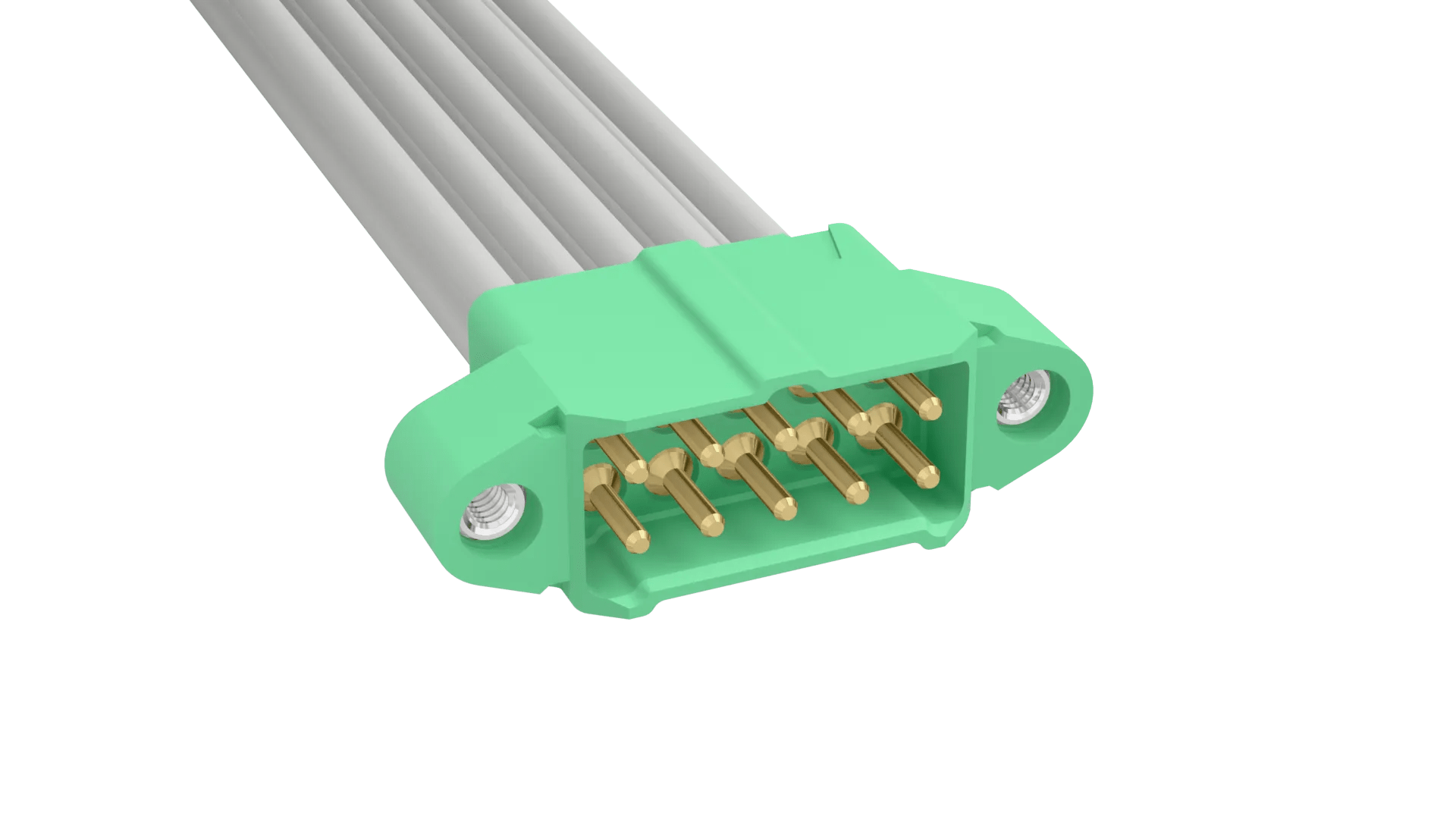

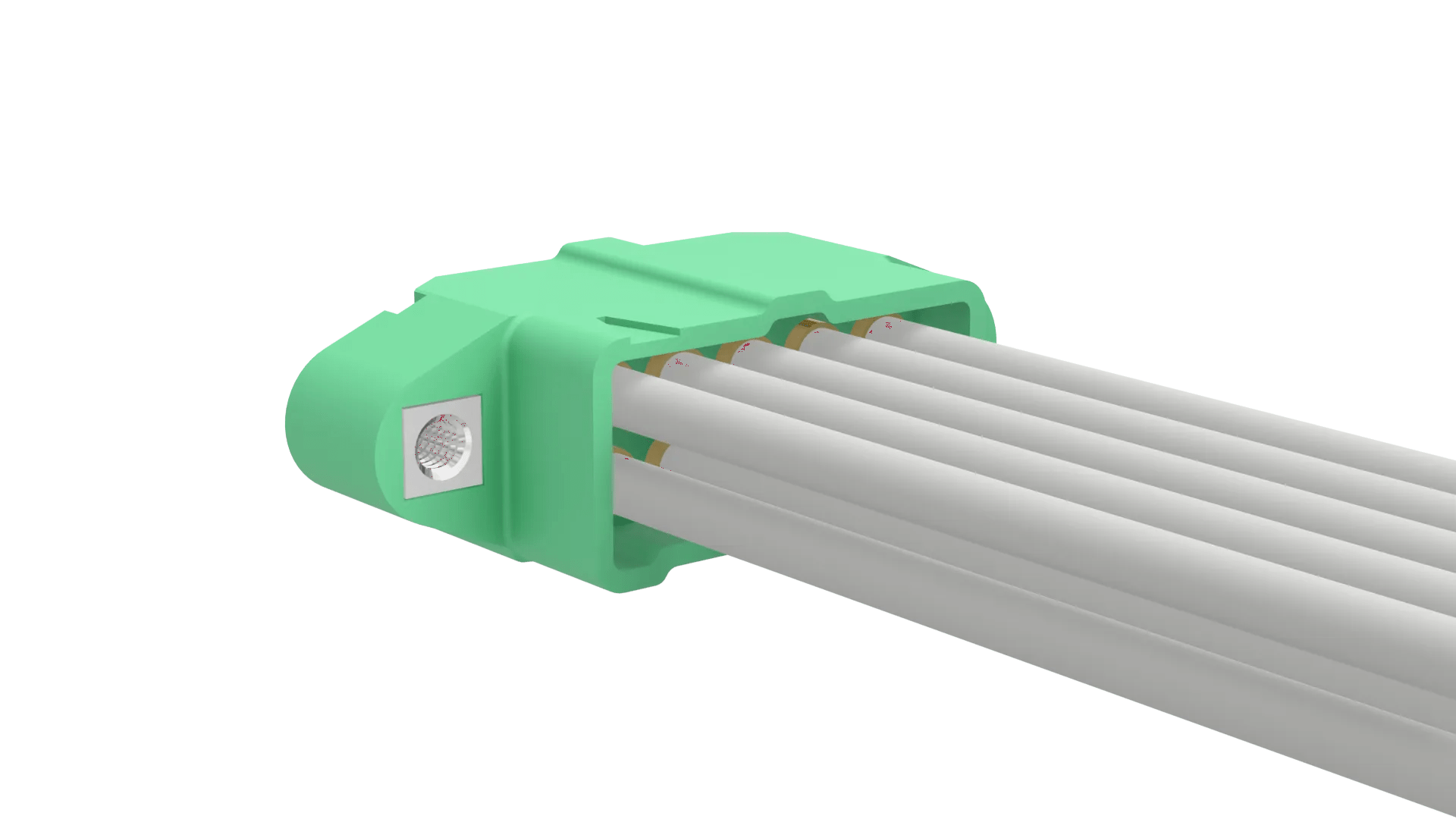

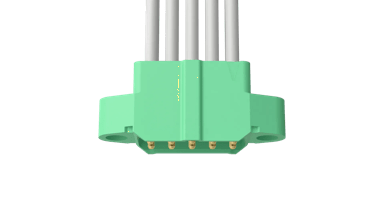

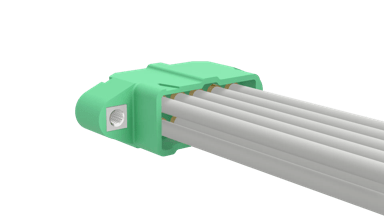

Male Single-Ended with white 18 AWG cable, 300mm (12") long - 10 contacts (5+5). Fitted with internally threaded jackscrew fixings. Gold finish on connector contact area.
Manufactured with the M300-1010045 crimp contacts, M300-3241096M1 Double Row crimp housing.
For complete pin numbering or pin out information, see Component Specification C048XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing
Mating Pin Size
Ø1mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
10
Operating Temperature
-65°C to +175°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
10A max per contact simultaneous
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
3.00mm (0.118")
Weight
38.678g
Dimensions
300.00 x 27.30 x 9.00
Thread Size
M2
Wire Size
18 AWG
Downloads
Product Change Notifications
Product Change Notification 13-Dec-2024 - M300 Male Housings and Connectors
Technical Documentation
Technical Drawing / Datasheet - M300-XCXXXXXXX-XXXXLXX.pdf
C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
