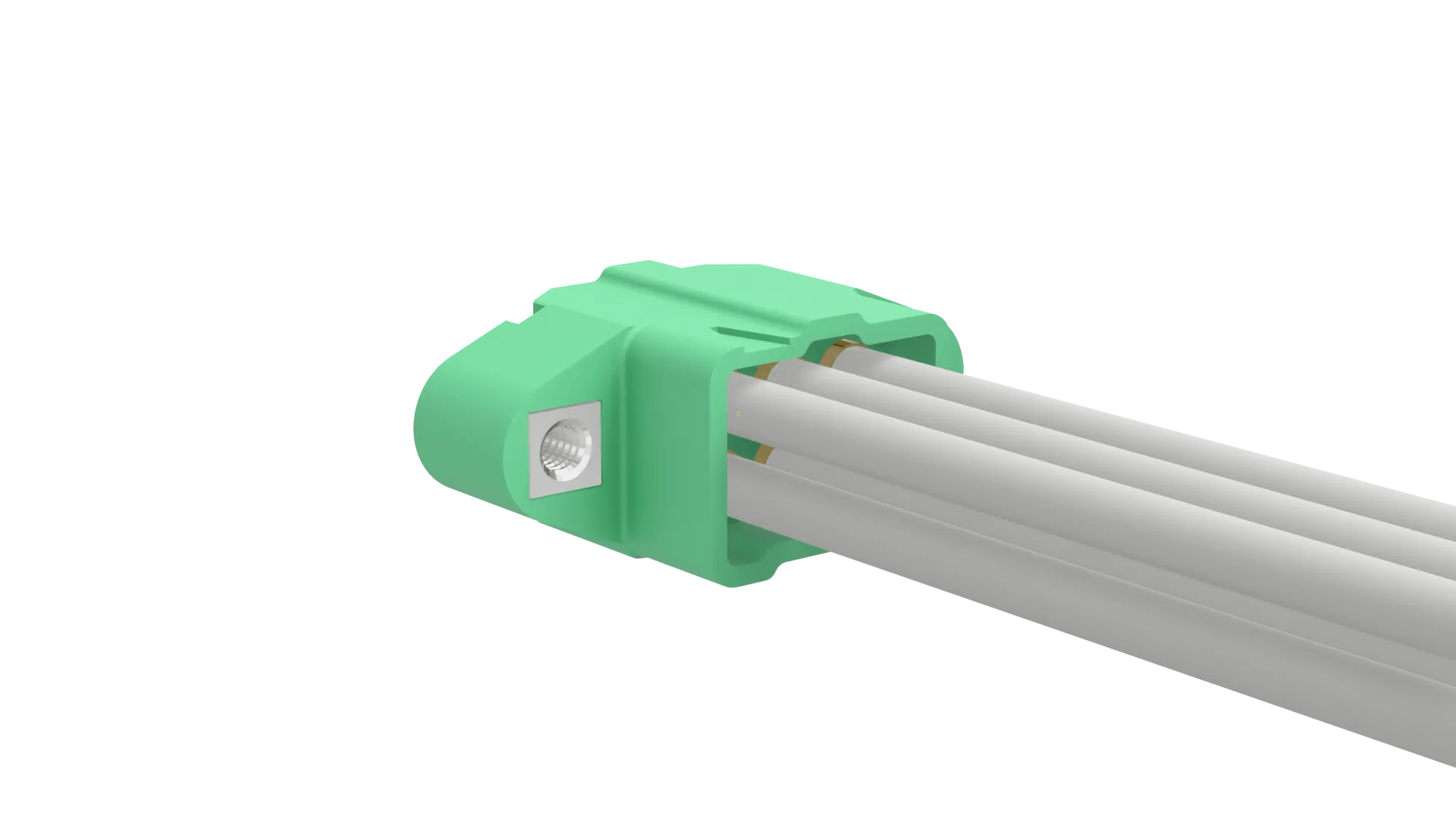

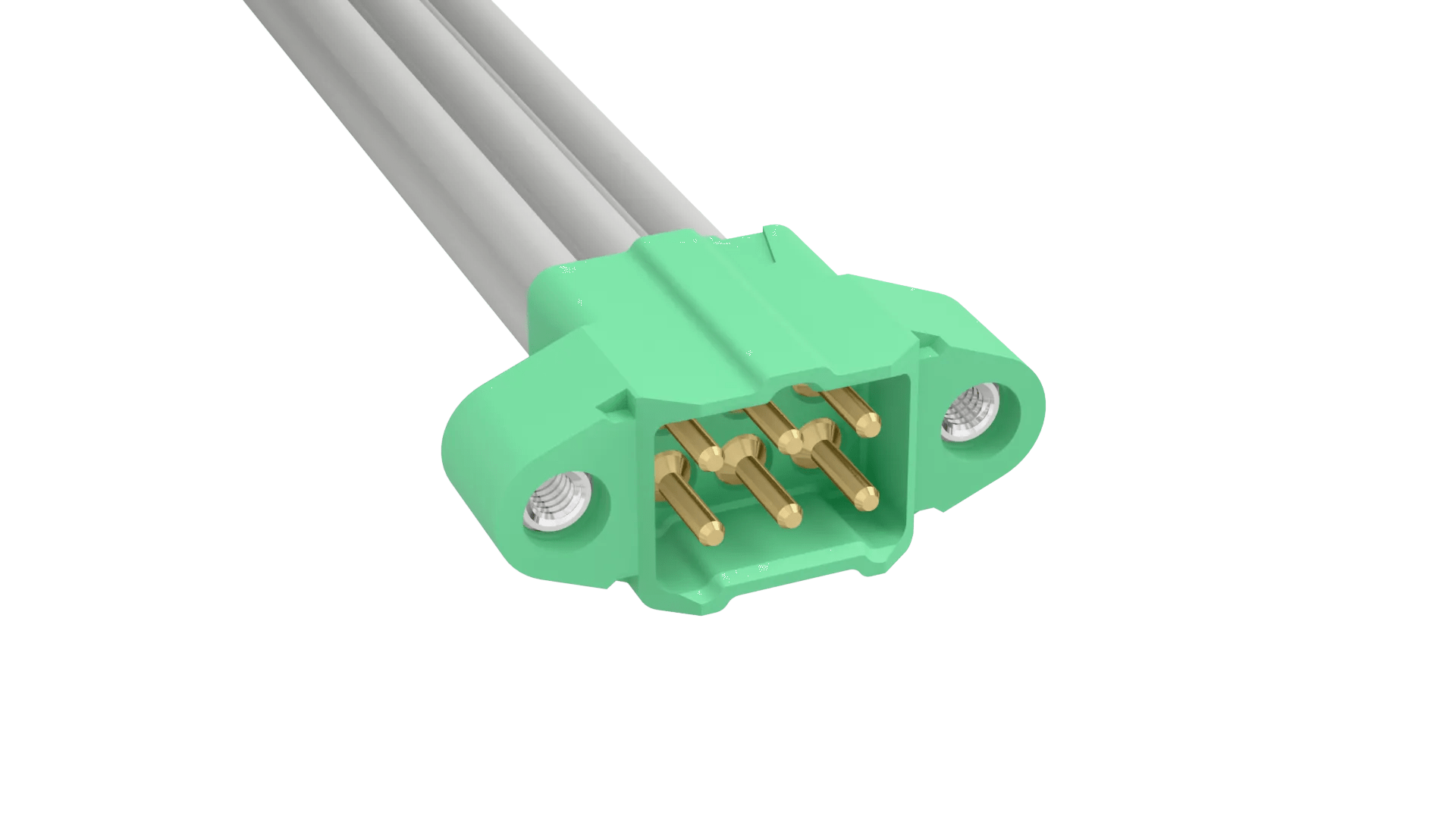

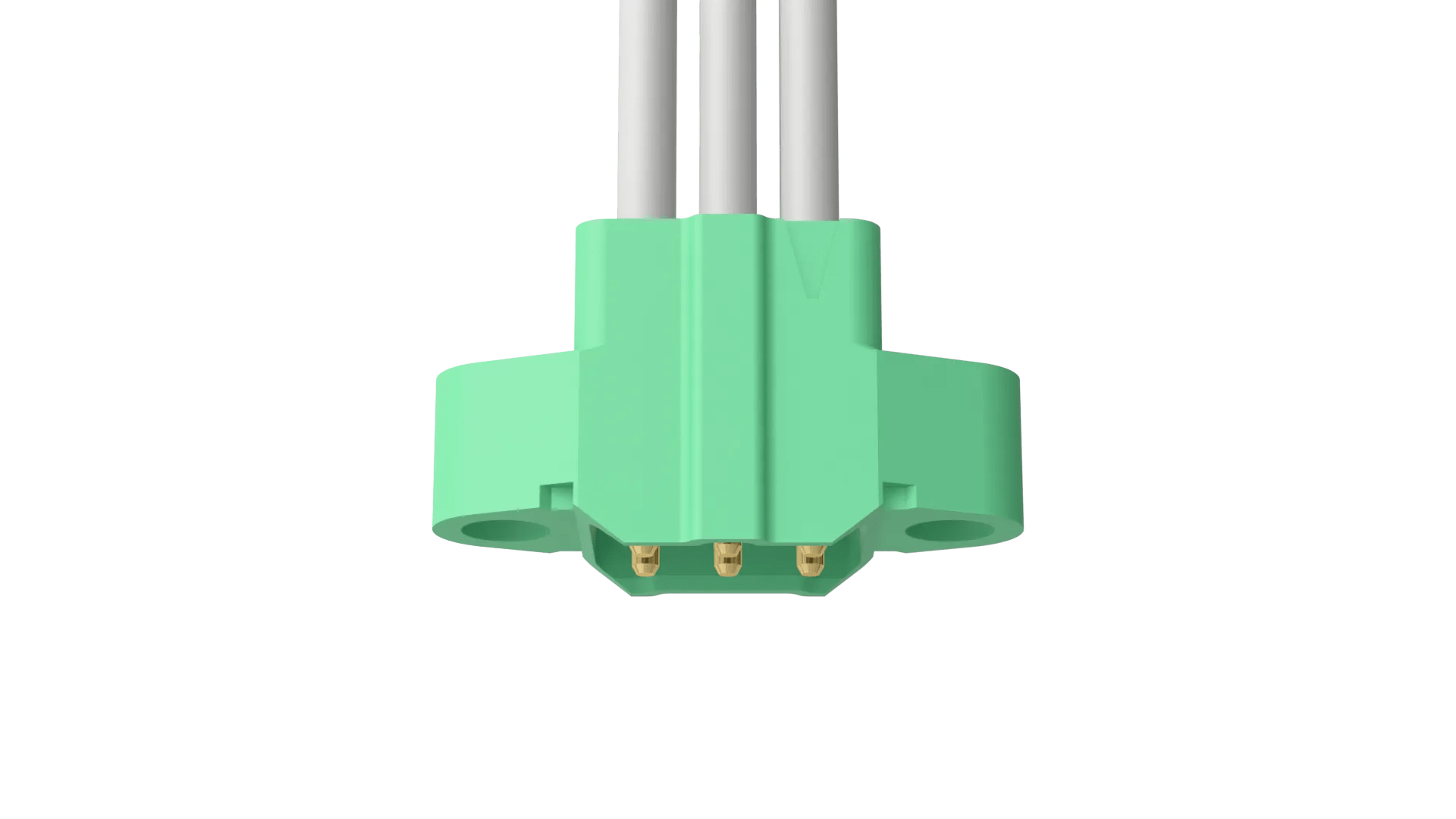

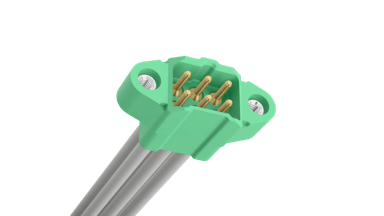

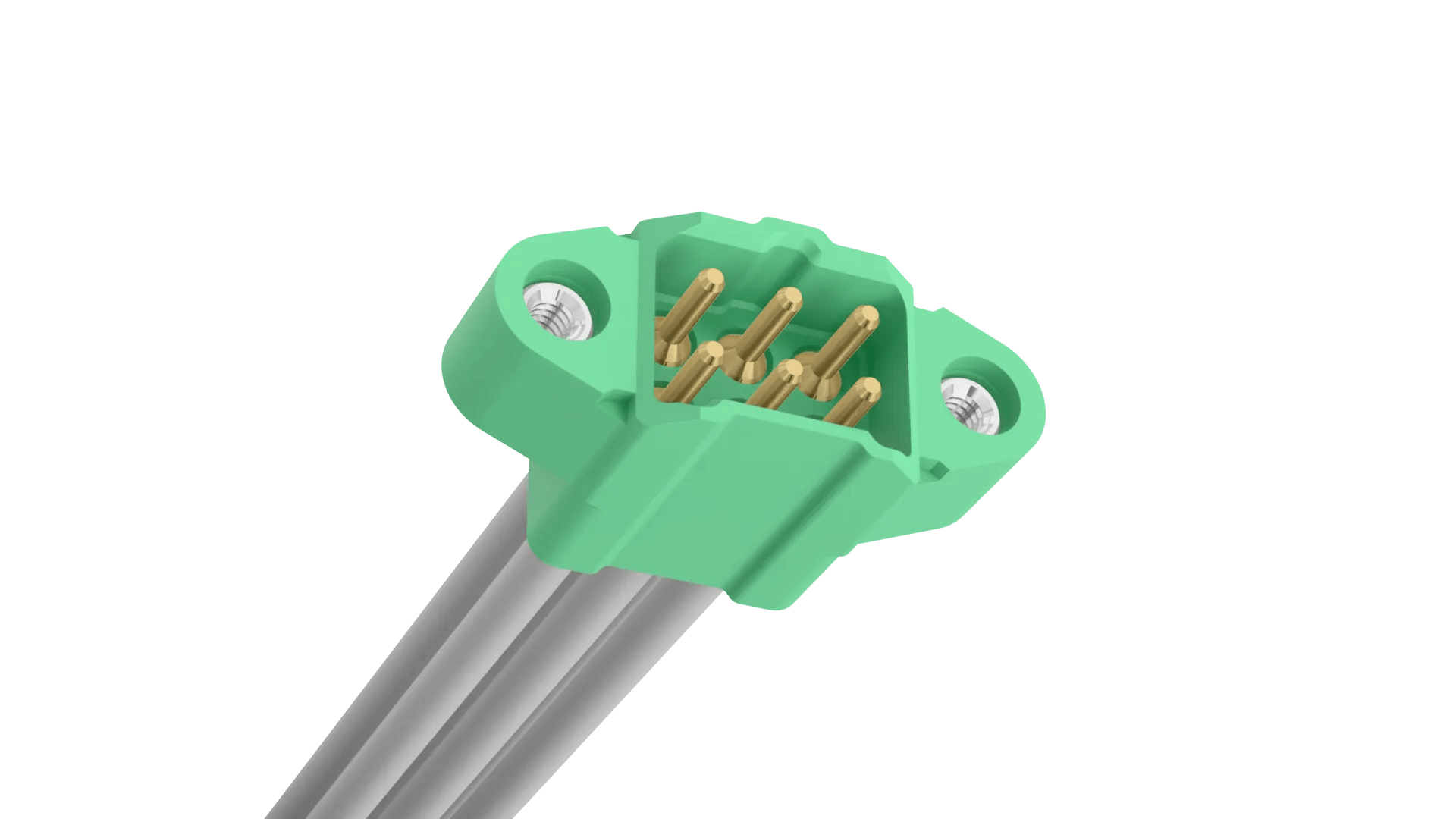

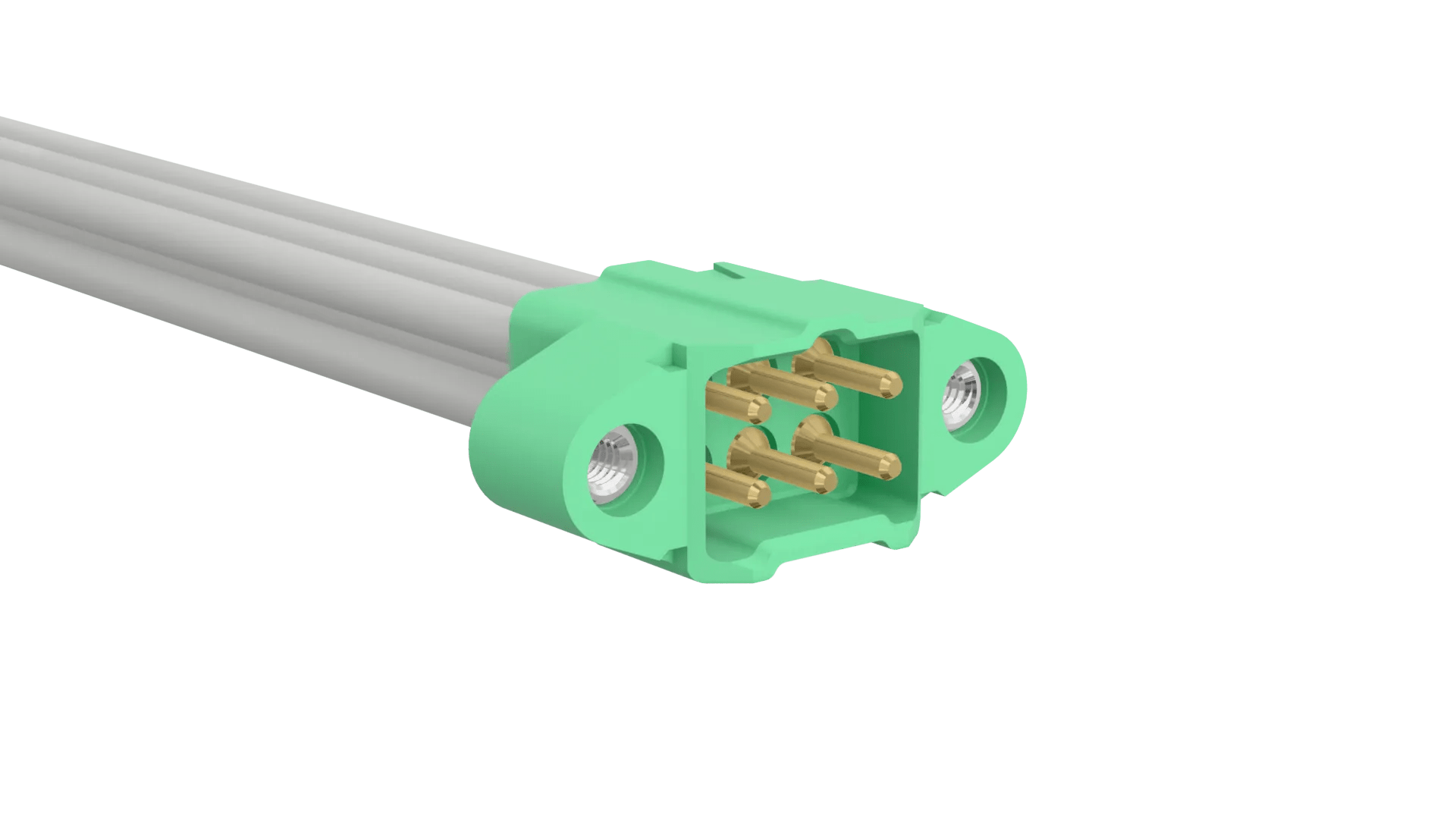

3+3 Pos. Male DIL 18AWG Cable Assembly, 300mm, single-end, Jackscrews
3.00mm Pitch High-Reliability Connector - M300
- Male Single-Ended with white 18 AWG cable, 300mm long – 6 contacts (3+3). Fitted with internally threaded jackscrew fixings. Gold finish on connector contact area.
- Manufactured with the M300-1010045 crimp contacts, M300-3240696M1 Double Row crimp housing.
- For complete pin numbering or pin out information, see Component Specification C048XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
10A max per contact simultaneous
-65°C to +175°C
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
300.00 x 21.30 x 9.00
20 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
I can see the current rating – what is the maximum voltage rating?
The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
