Home > M300-FV31045F2
Active

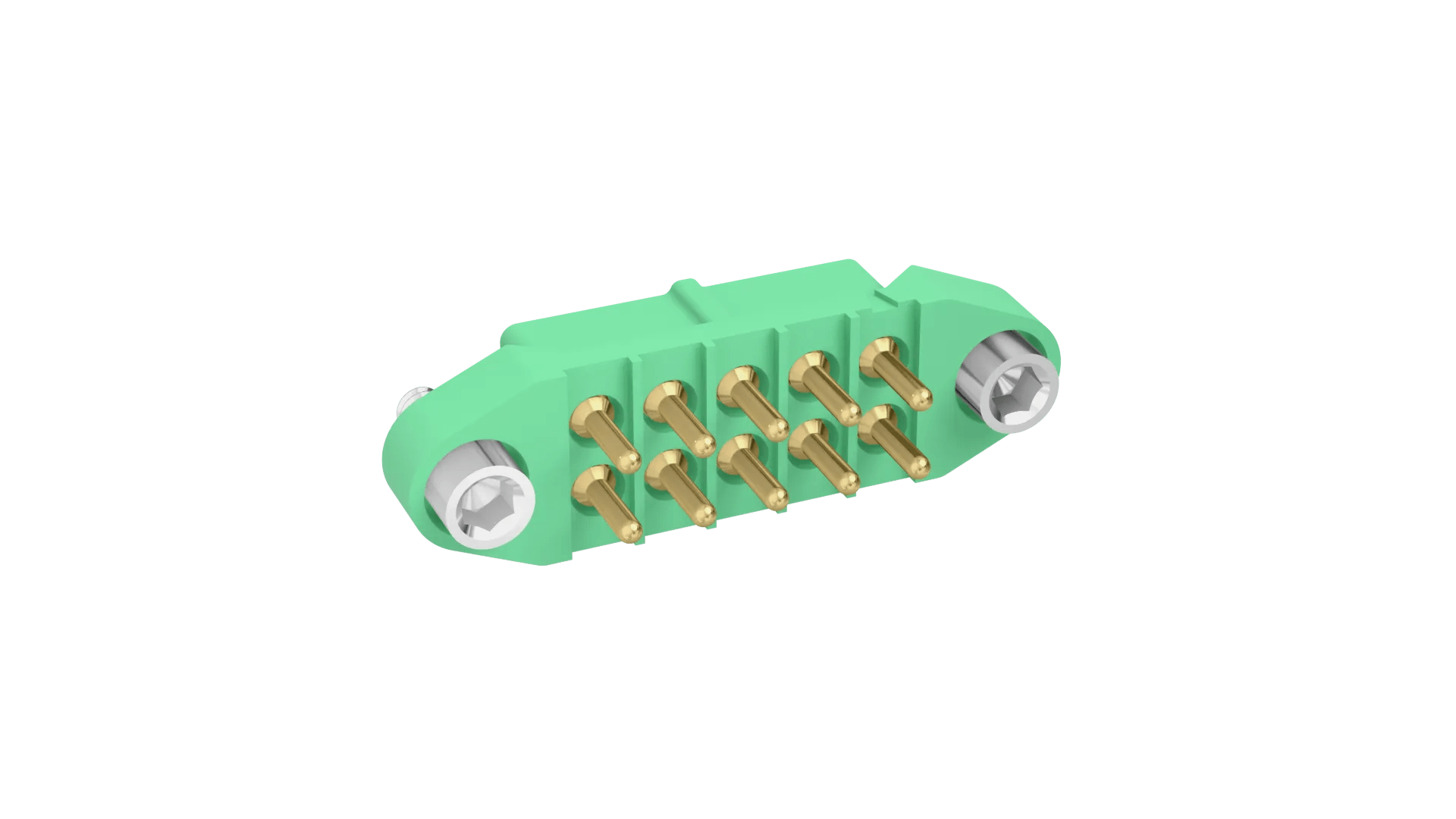

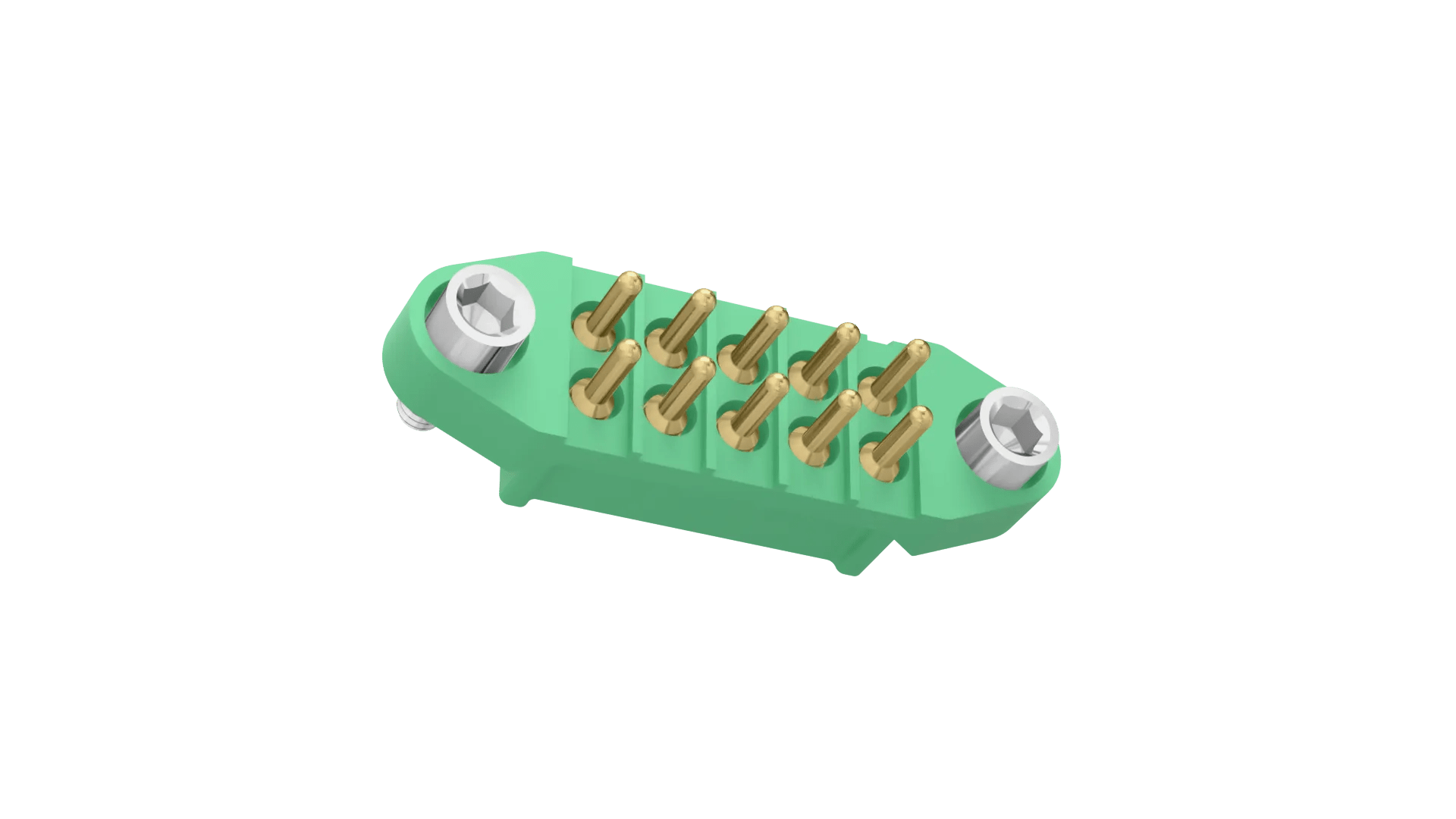

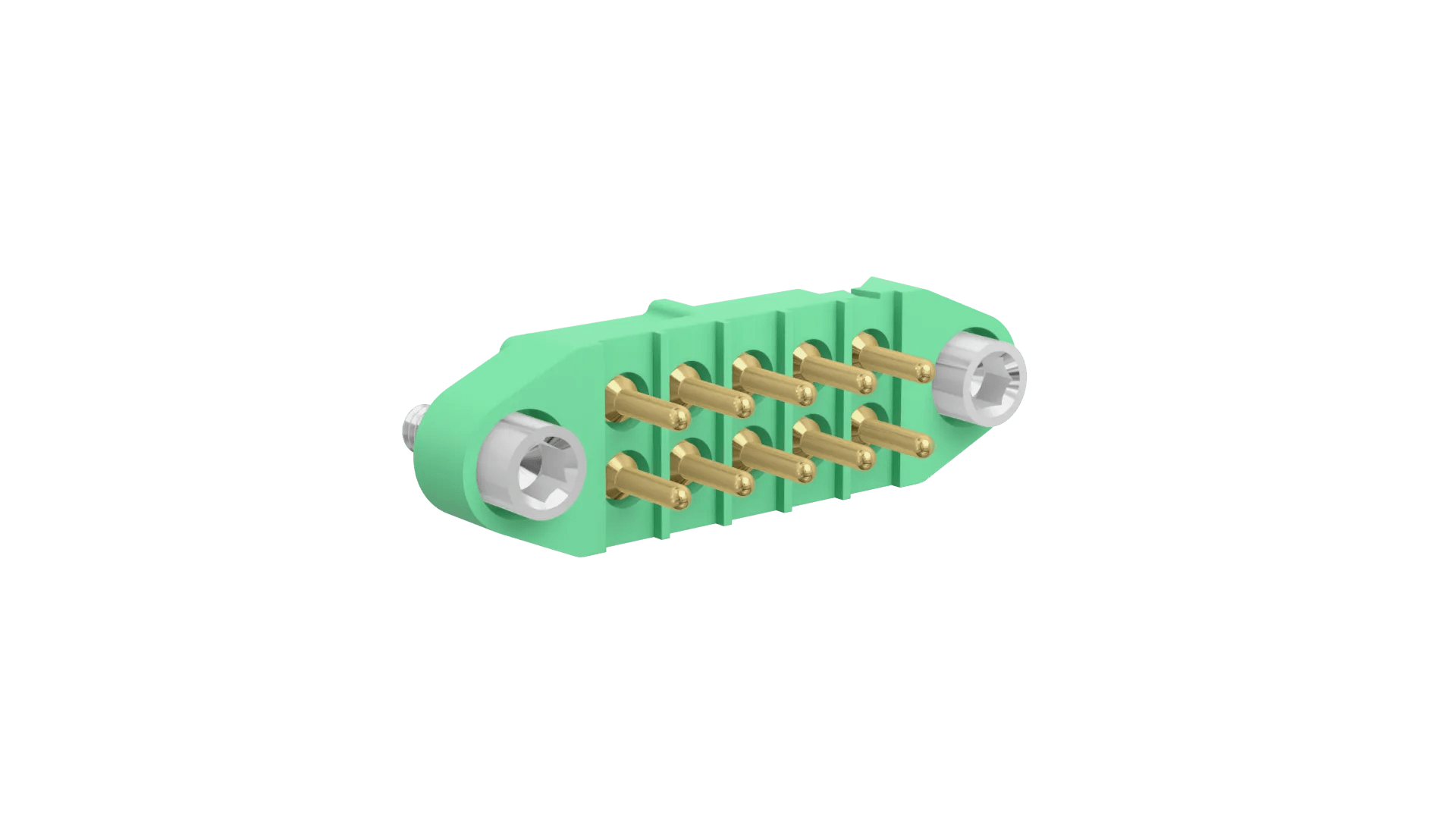

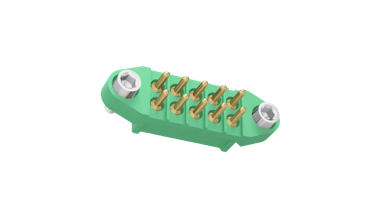

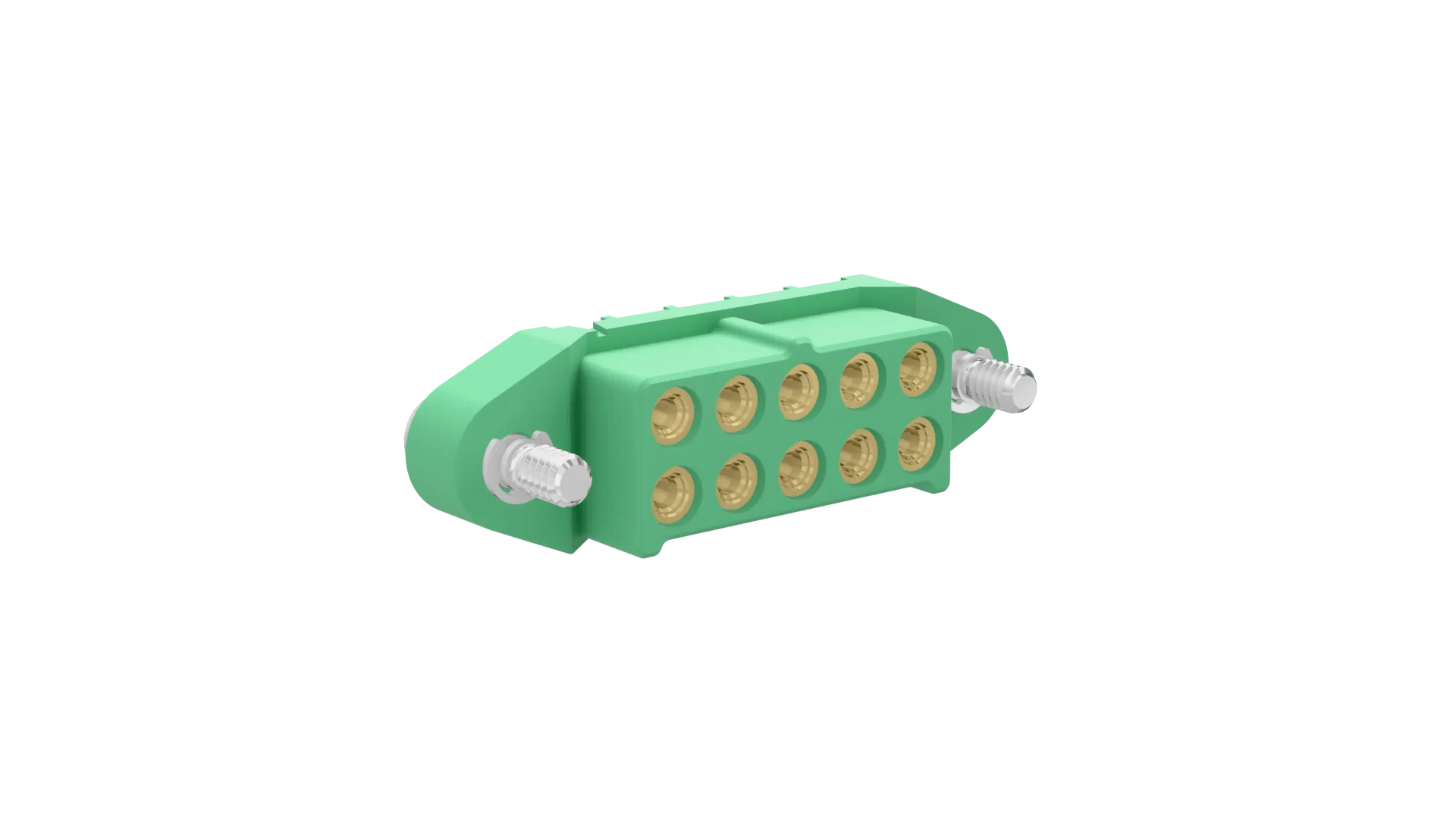

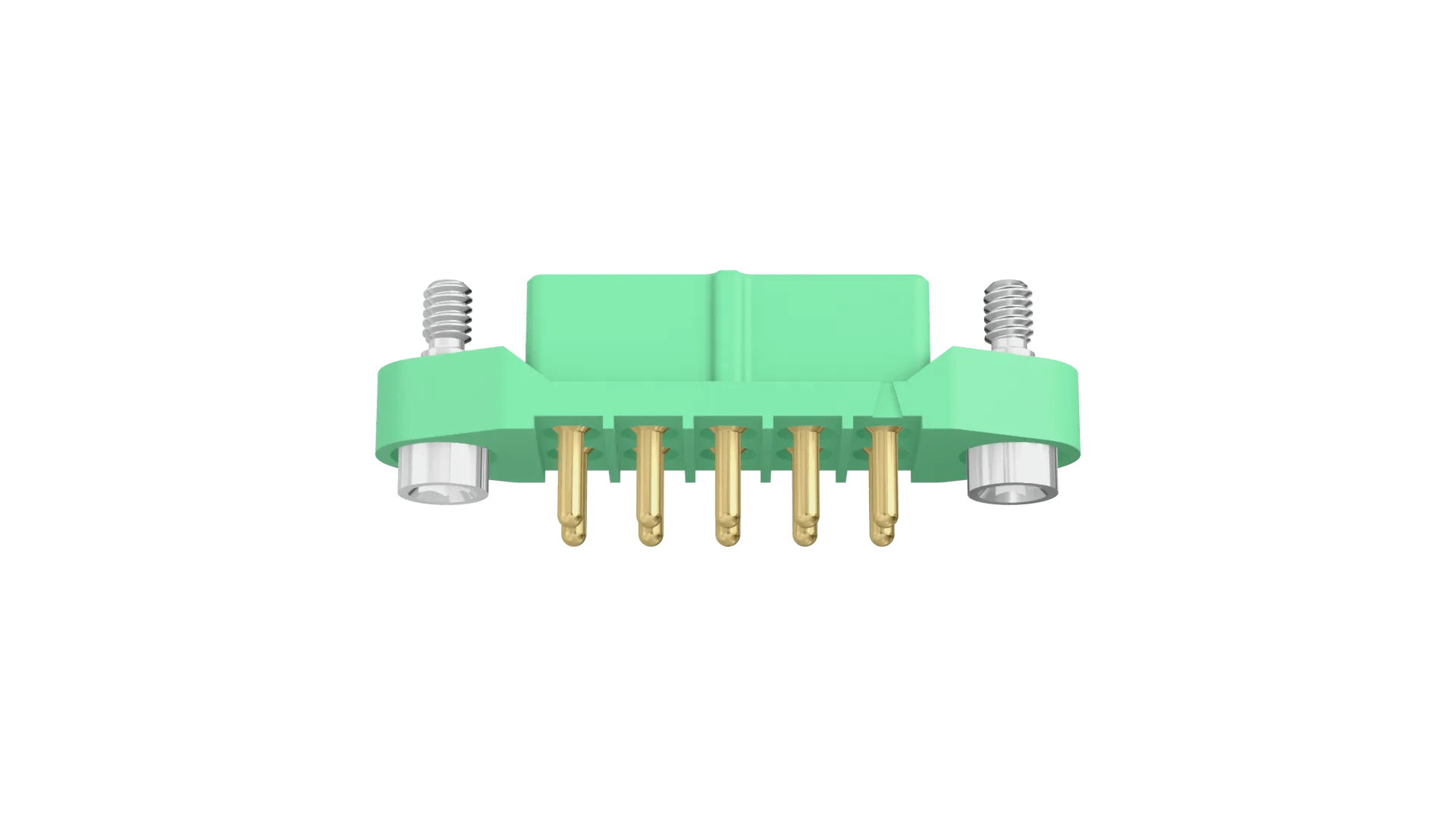

M300-FV31045F2

5+5 Pos. Female DIL Vertical Throughboard Conn. Jackscrews

3.00mm Pitch High-Reliability Connector - M300

  • Double Row Vertical Female Throughboard connector with 3.2mm PC Tail – 10 contacts (5+5). Gold finish on contact area and termination.
  • Polarized housings, with Hex Socket floating jackscrews.
  • For complete pin numbering or pin out information, see Component Specification C048XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

2.77g

Overall Dimensions (L x W x D) in mm:

27.30 x 8.00 x 10.20

Thread Size:

M2

Height of Connector above PCB:

7.00mm

Length of Throughboard Tail:

3.20mm

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M300-FV31045F2.pdf

ZIP

M300-FV31045F2 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT043 - M300 Series - General (Electrical, Mechanical and Environmental)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the M300 connectors, 3mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - M300 Female Throughboard

PDF

Catalog page - M300 Specification

PDF

Catalog page - M300 Mating Profiles, Pin Numbering

PDF

Catalog page - M300 Introduction

PDF

Product Summary - M300 Series High-Reliability Connectors

PDF

Outgassing data for Harwin products (plastics)

PDF

Plating thickness on M300 contacts
