M300-FV10345F2

3 Pos. Female SIL Vertical Throughboard Conn. Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

Single Row Vertical Female Throughboard connector with 3.2mm PC Tail – 3 contacts. Gold finish on contact area and termination.
Polarized housings, with Hex Socket floating jackscrews.
For complete pin numbering or pin out information, see Component Specification C048XX.

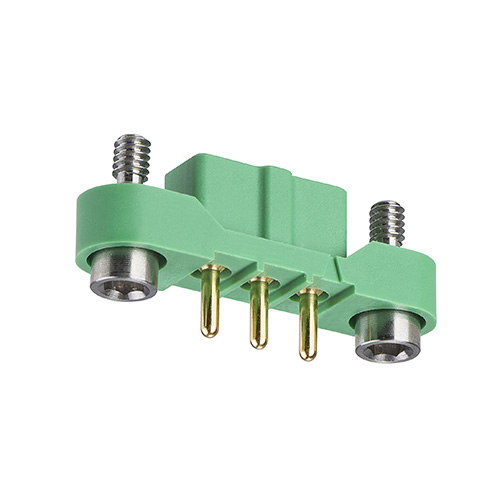

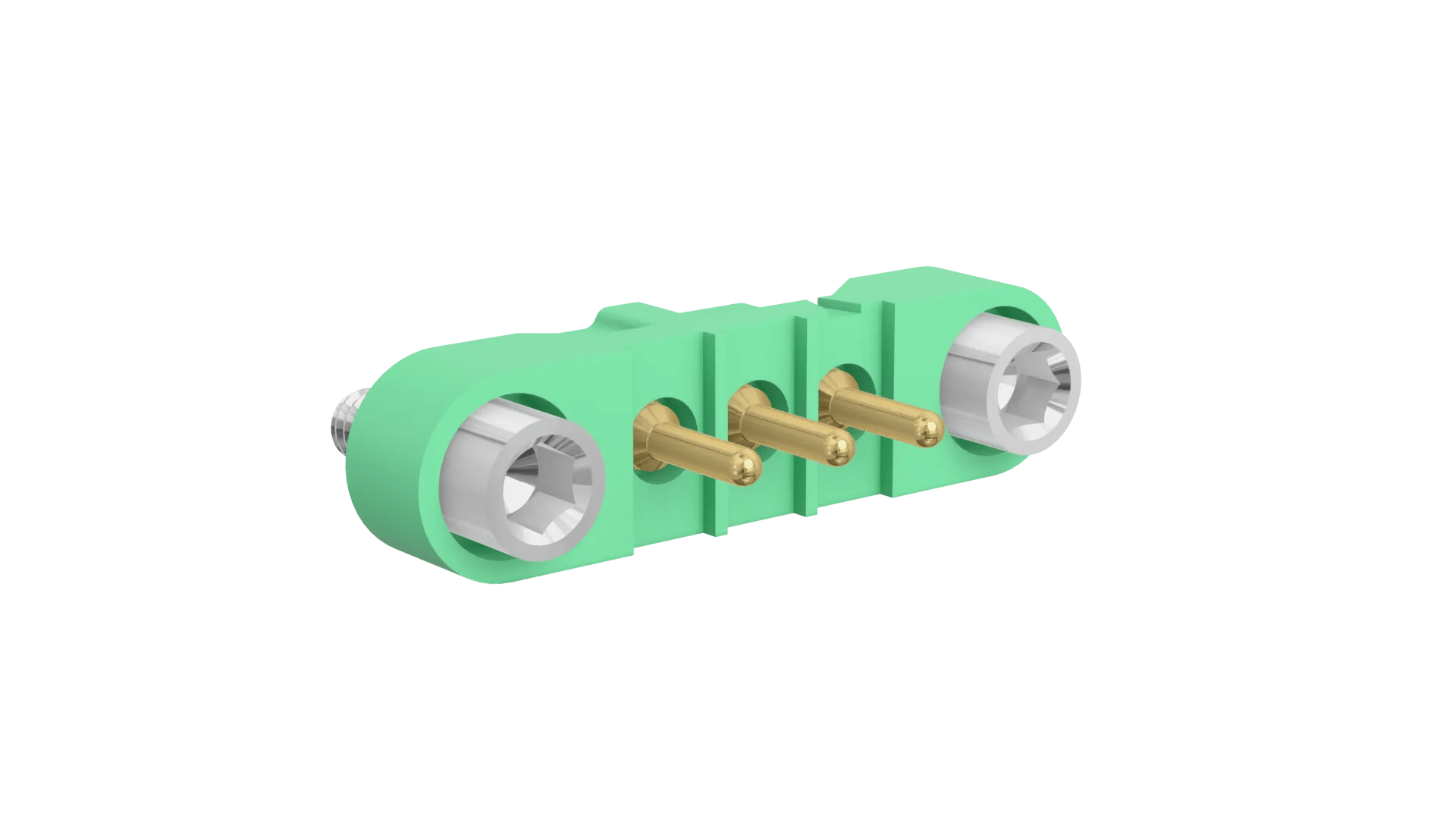

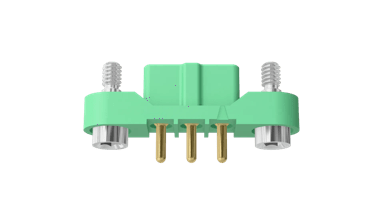

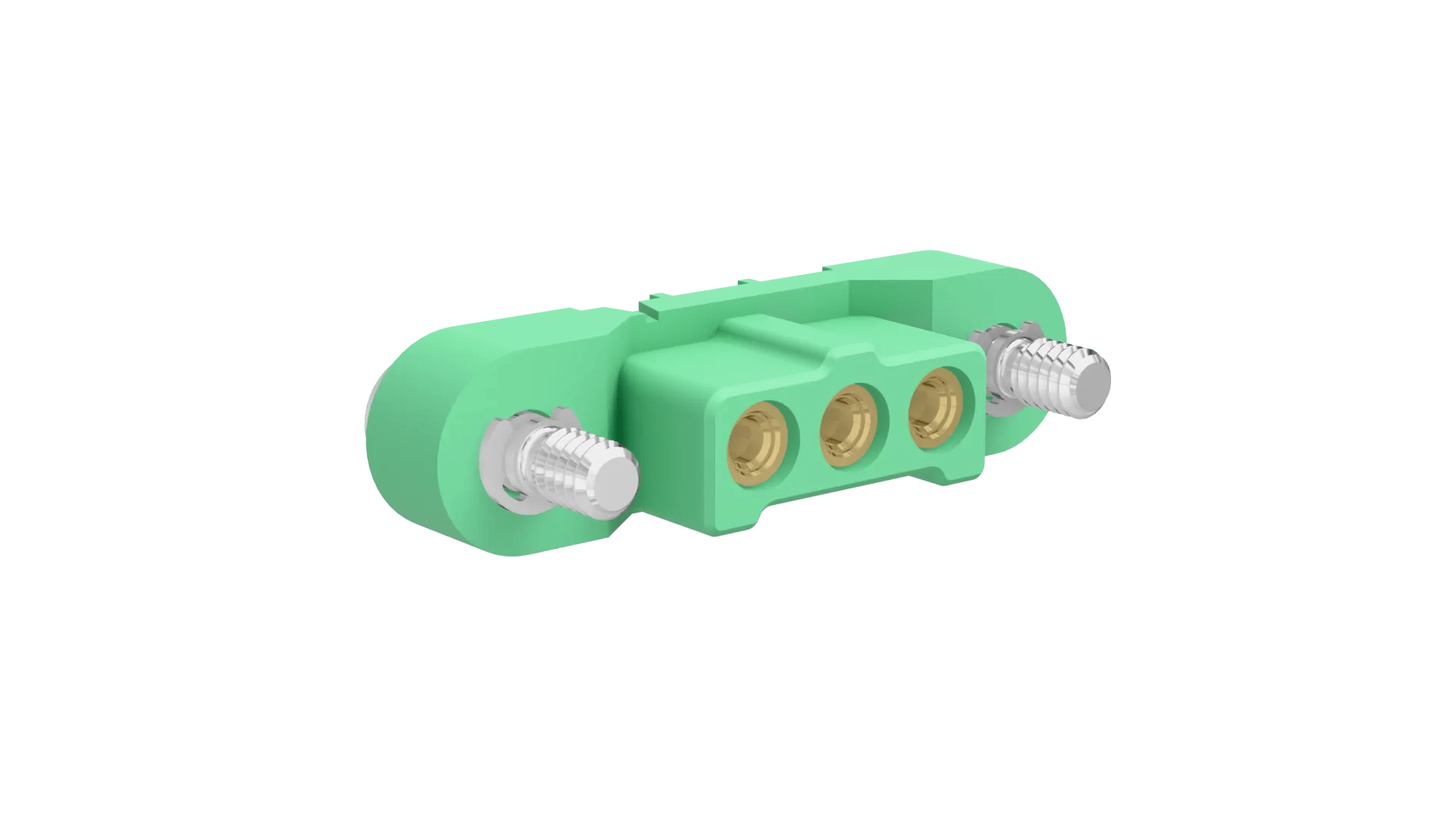

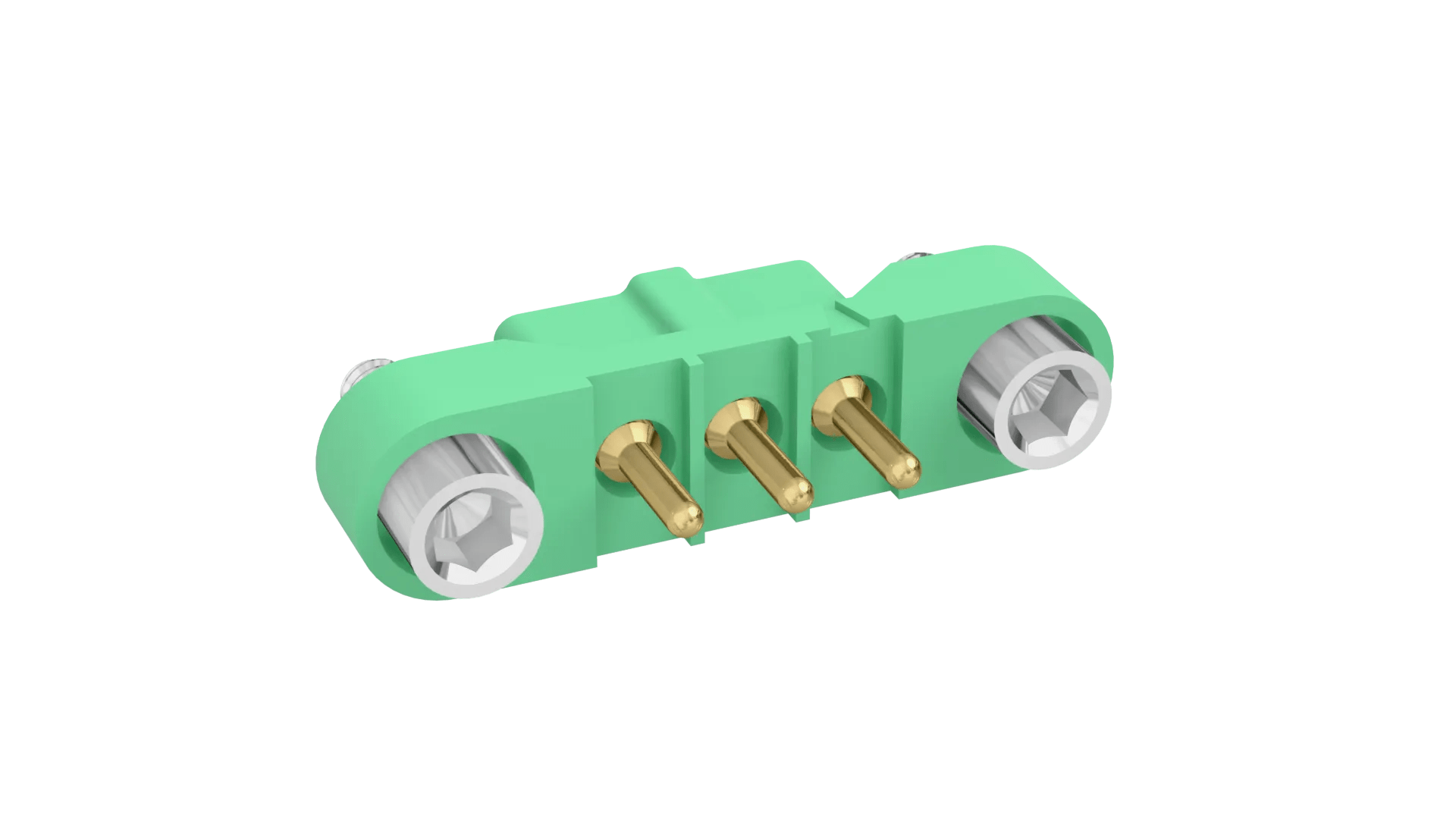

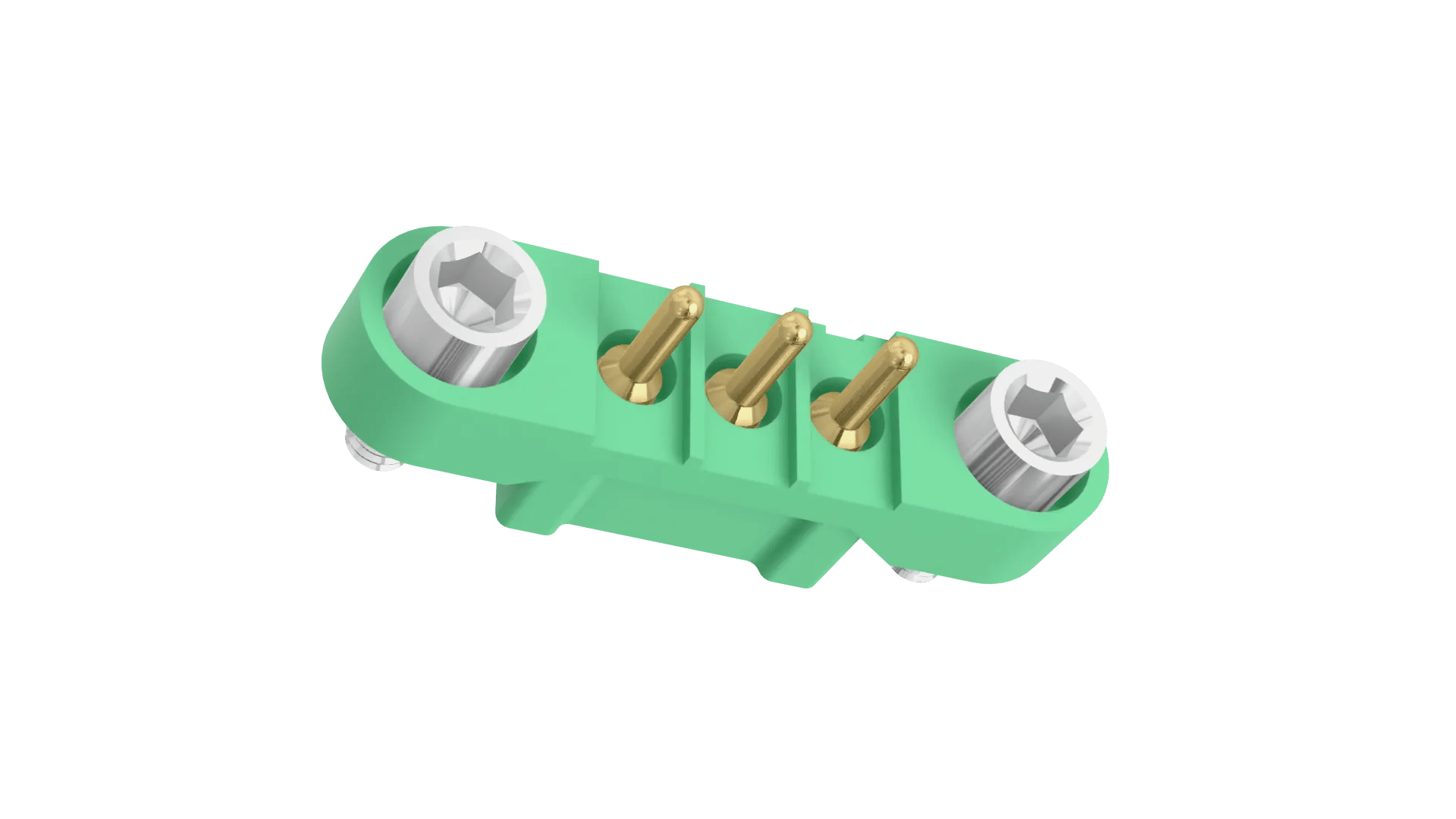

M300-FV10345F2 - 3 Pos. Female SIL Vertical Throughboard Conn. Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.429g

Overall Dimensions (L x W x D) in mm:

21.30 x 5.30 x 10.20

Thread Size:

Height of Connector above PCB:

7.00mm

Length of Throughboard Tail:

3.20mm

Mating Profiles:

Catalog page - M300 Mating Profiles, Pin Numbering

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
