Home > M300-3250396M1
Active Product

M300-3250396M1

3 Pos. Male SIL Cable Housing, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Add to Favorites

3,729 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

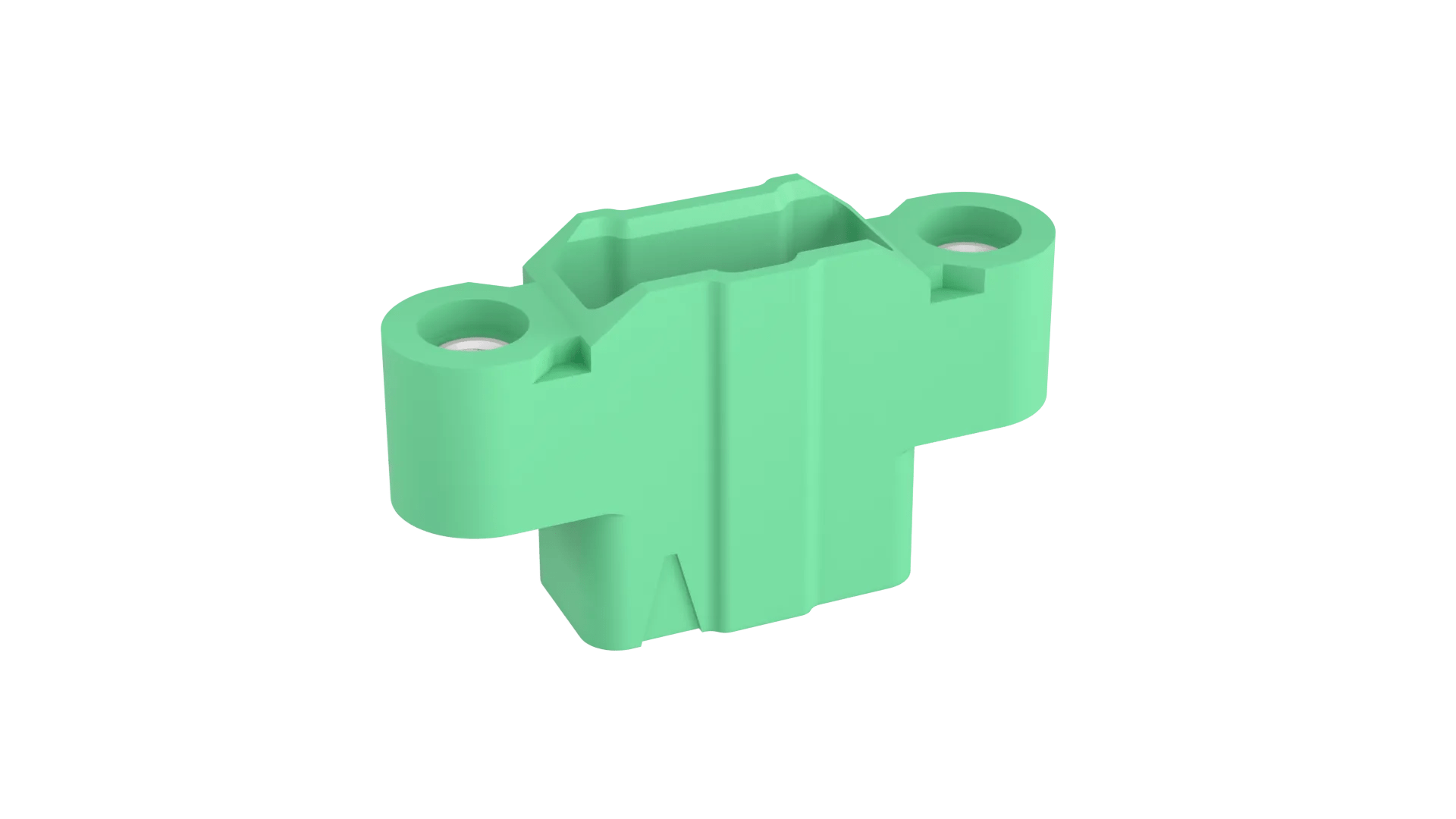

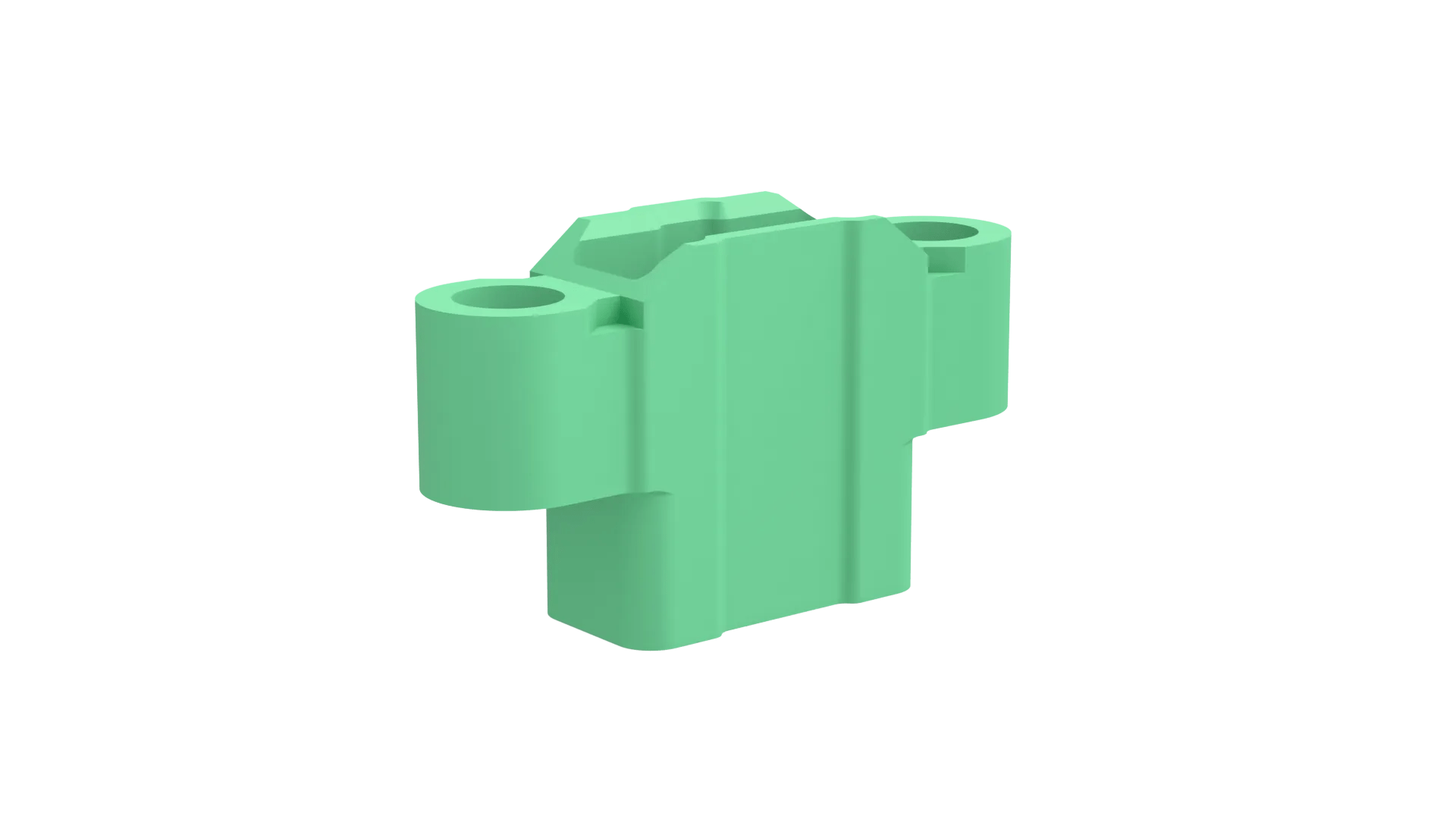

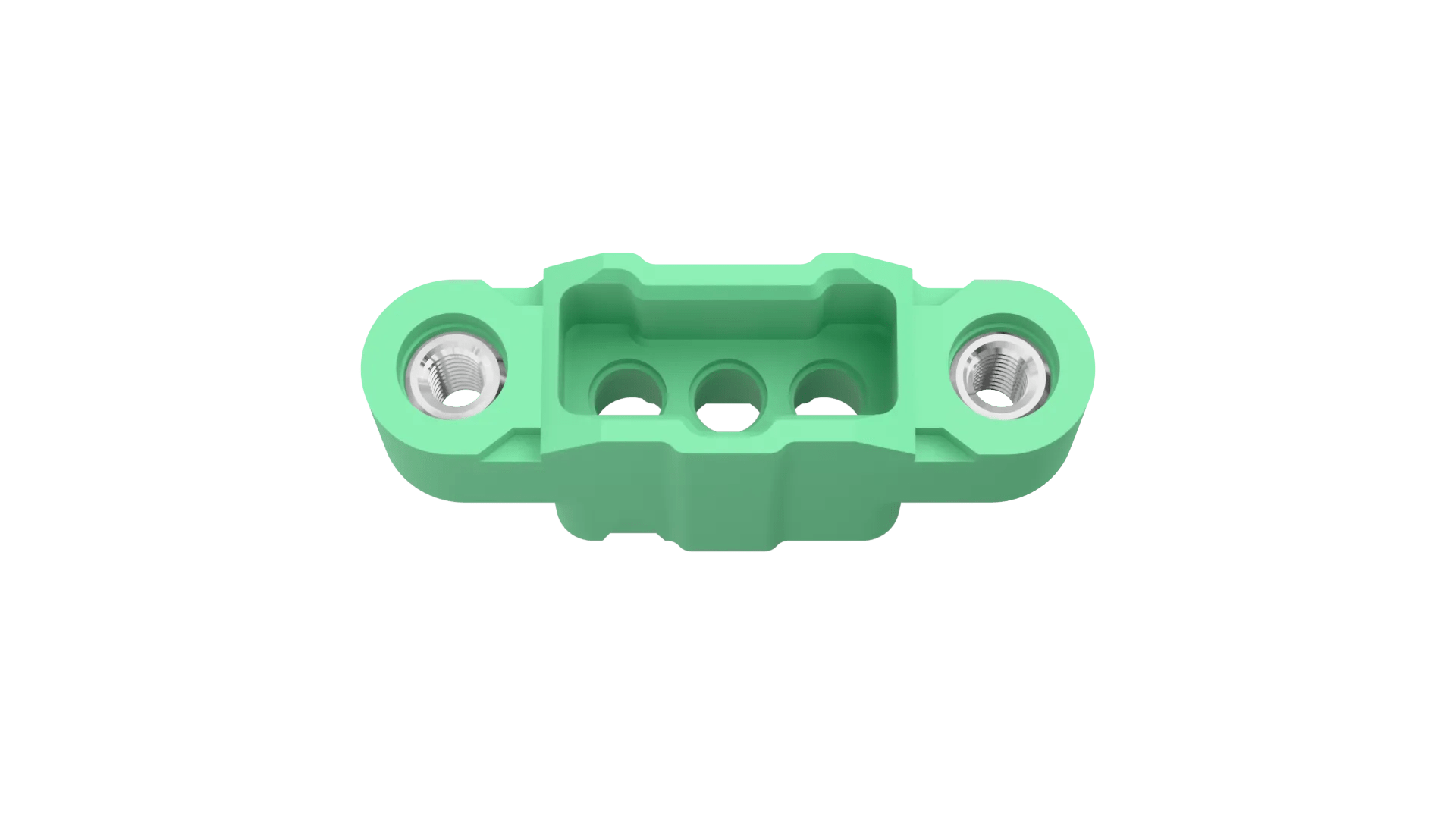

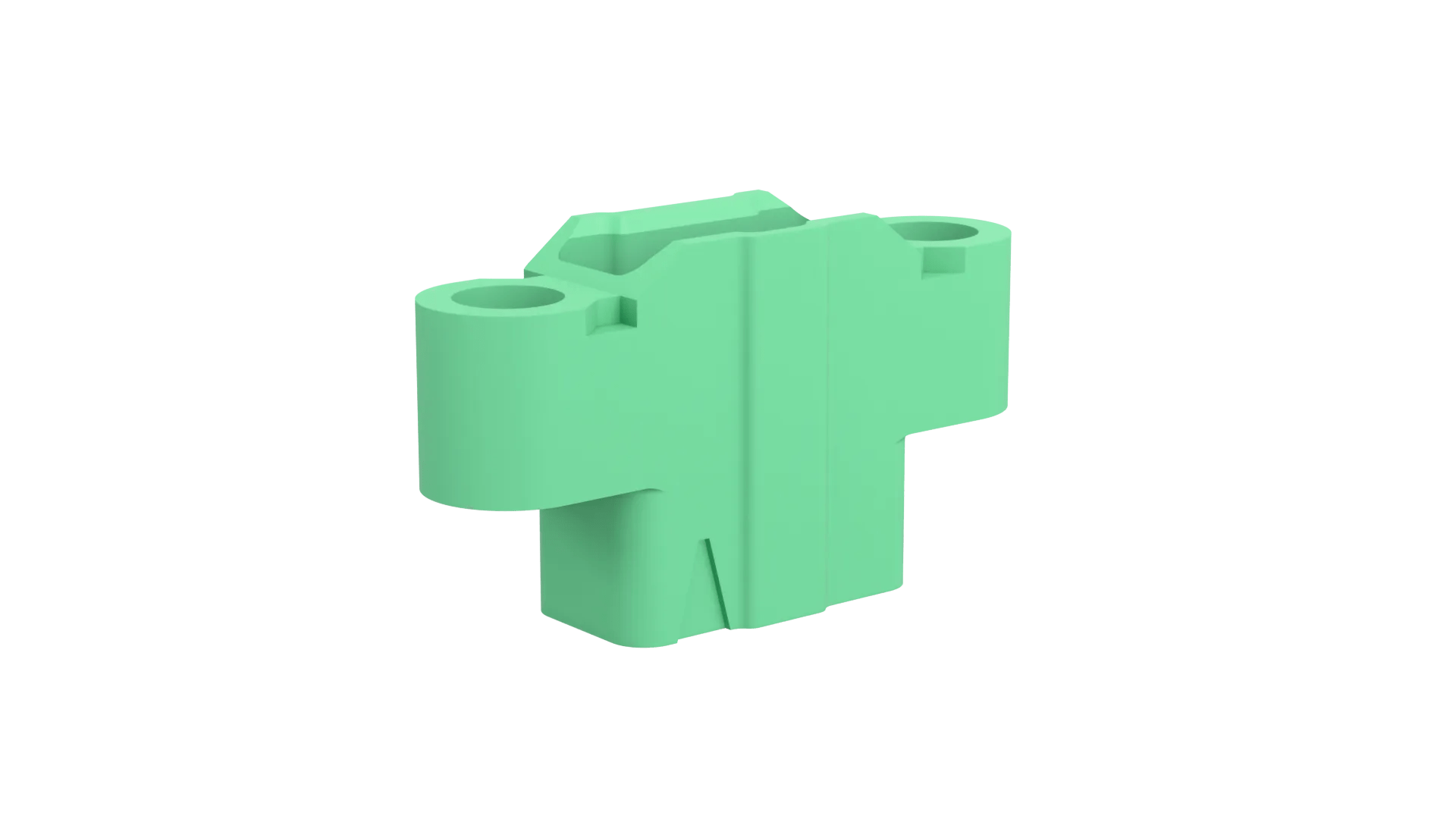

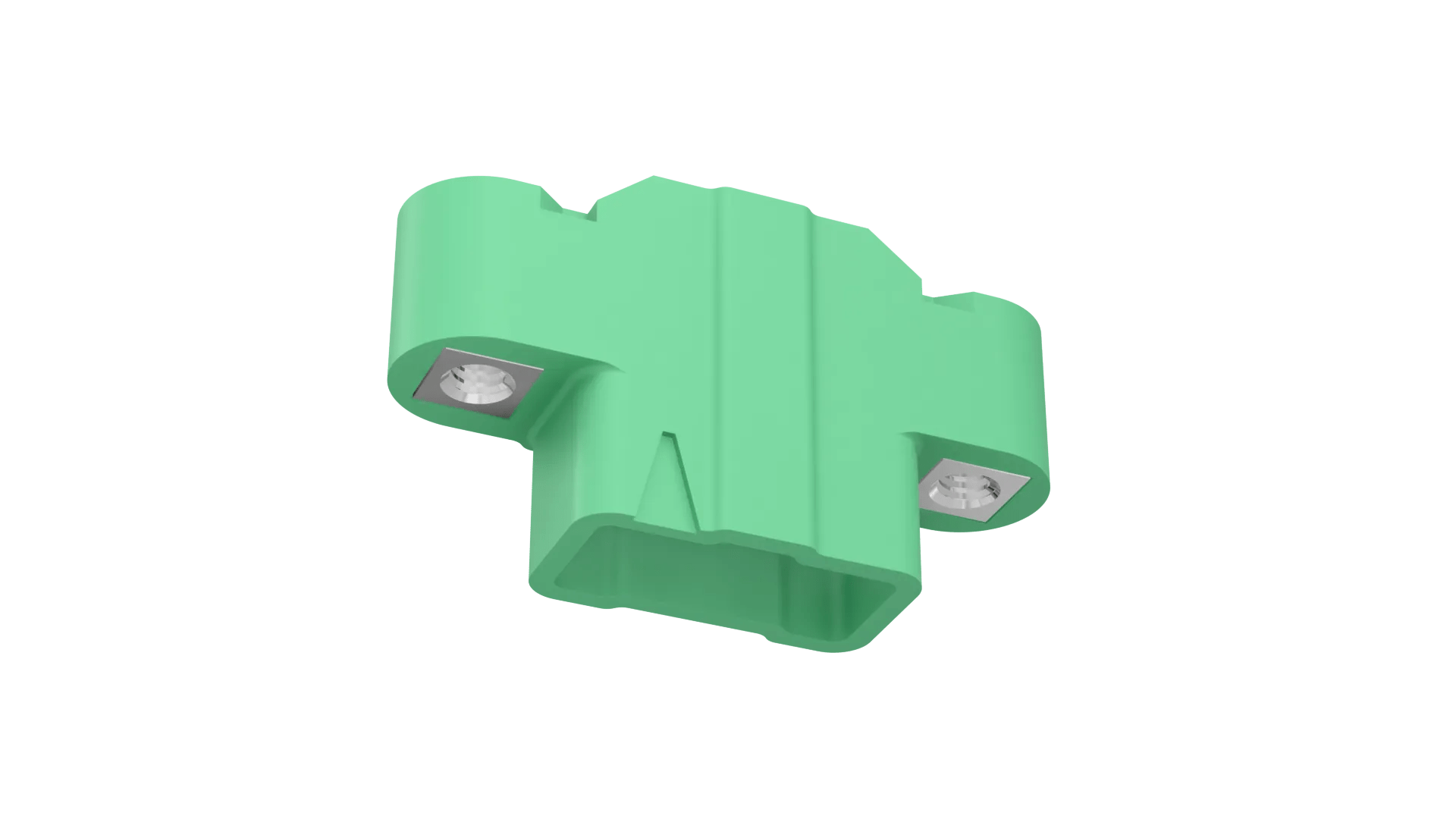

  • Single Row Polarized Male Housing, with internally threaded jackscrew fixings and rear potting area – 3 contact.
  • Contacts to be purchased separately – use with crimp contacts M300-1010045 or M300-1020045.
  • For complete pin numbering or pin out information, see Component Specification C048XX.

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

3

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.194g

Overall Dimensions (L x W x D) in mm:

21.30 x 6.00 x 11.90

Thread Size:

M2

Frequently Asked Questions Ask a Question

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS

Want to talk to someone?

Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.


Ask an Expert
Book a meeting
