Active Product

M300-3241096M2

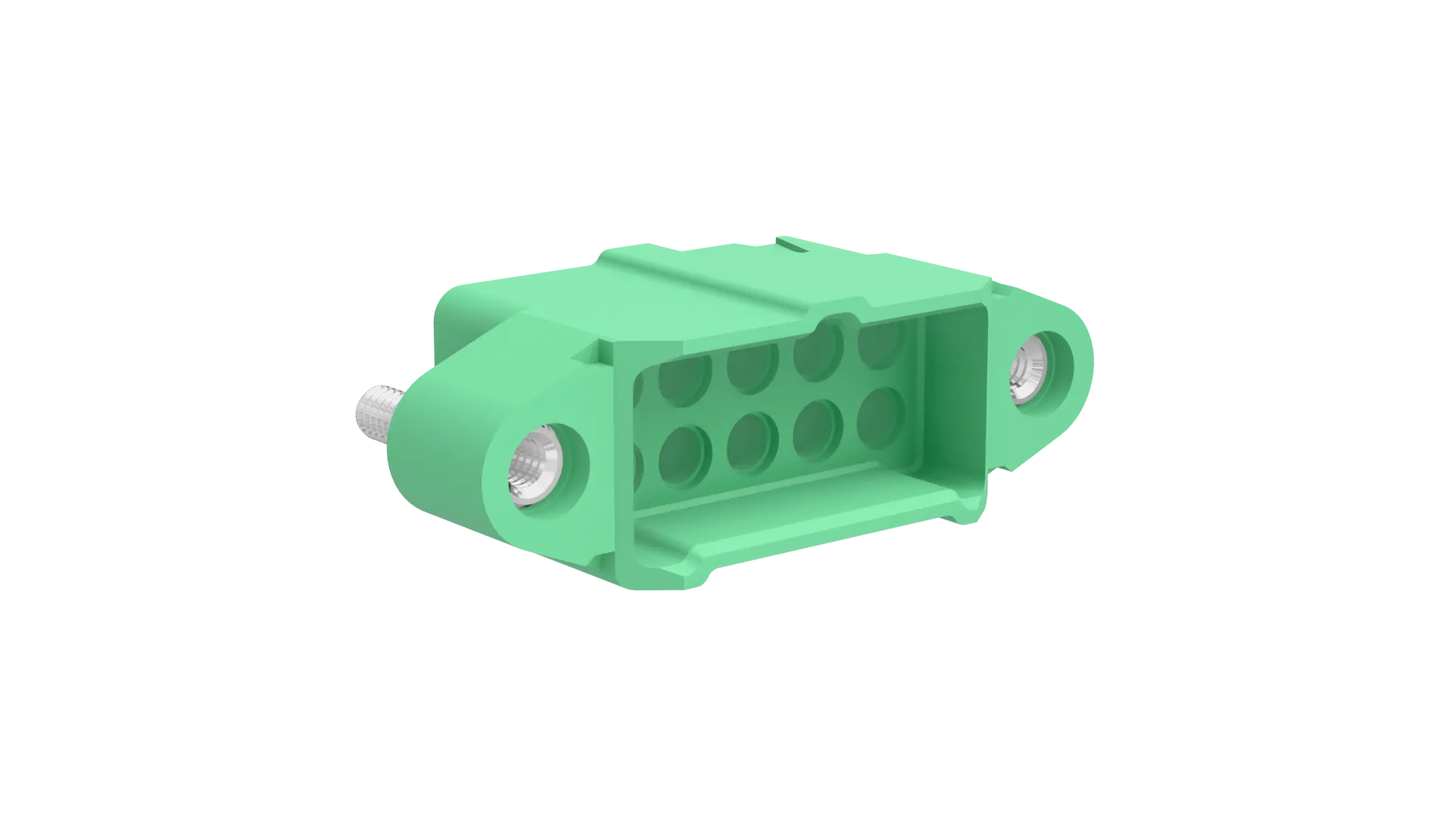

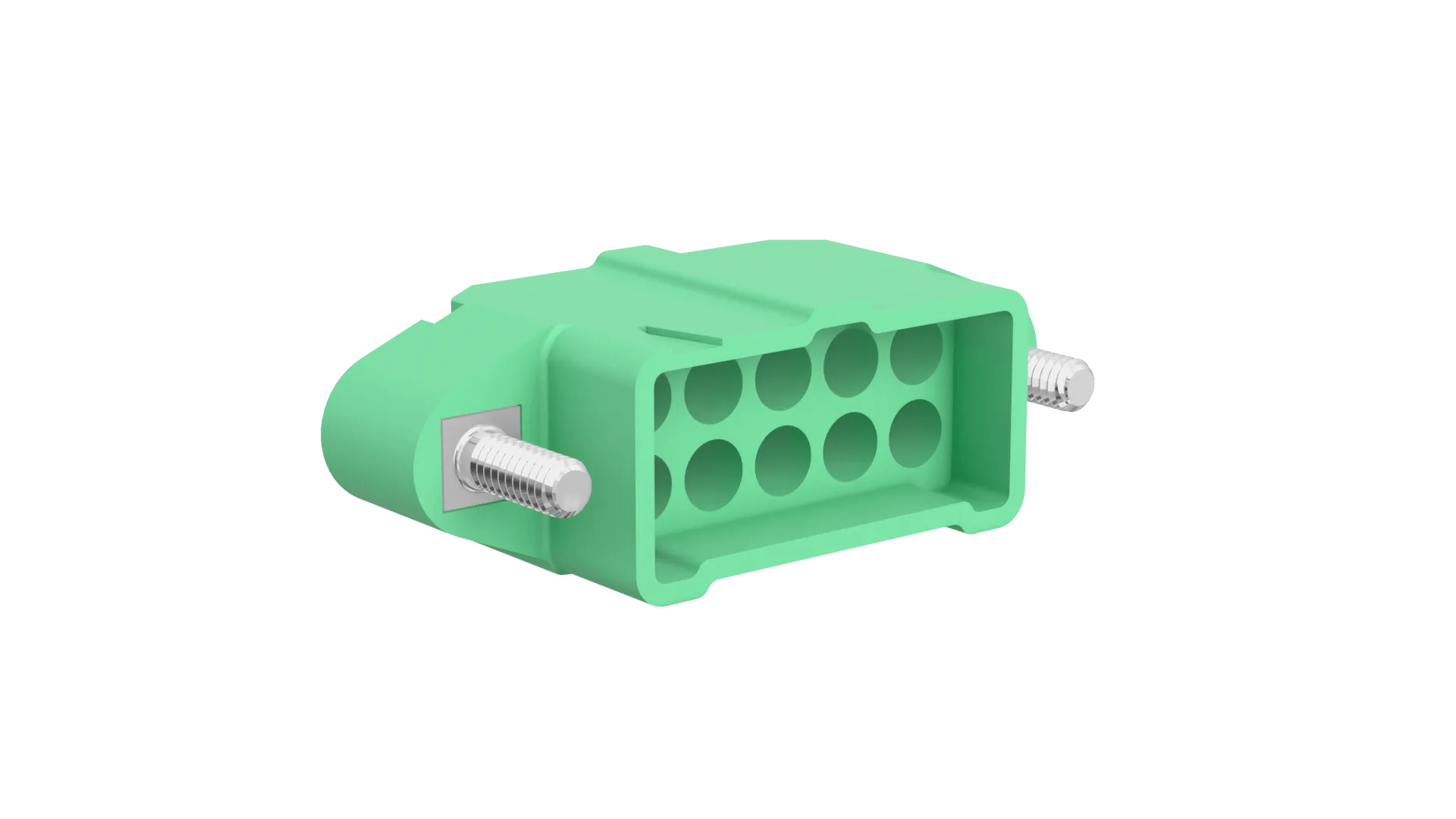

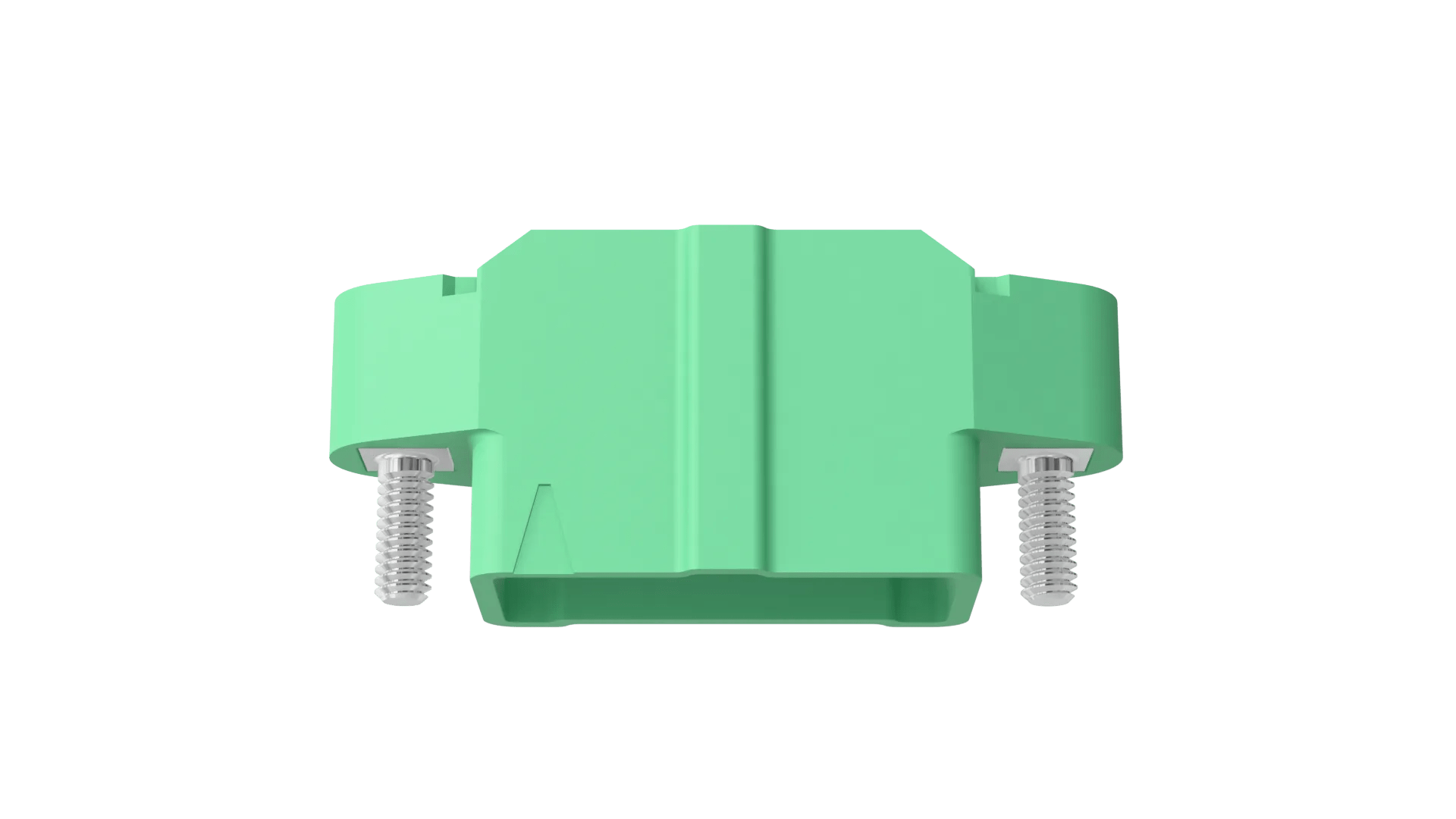

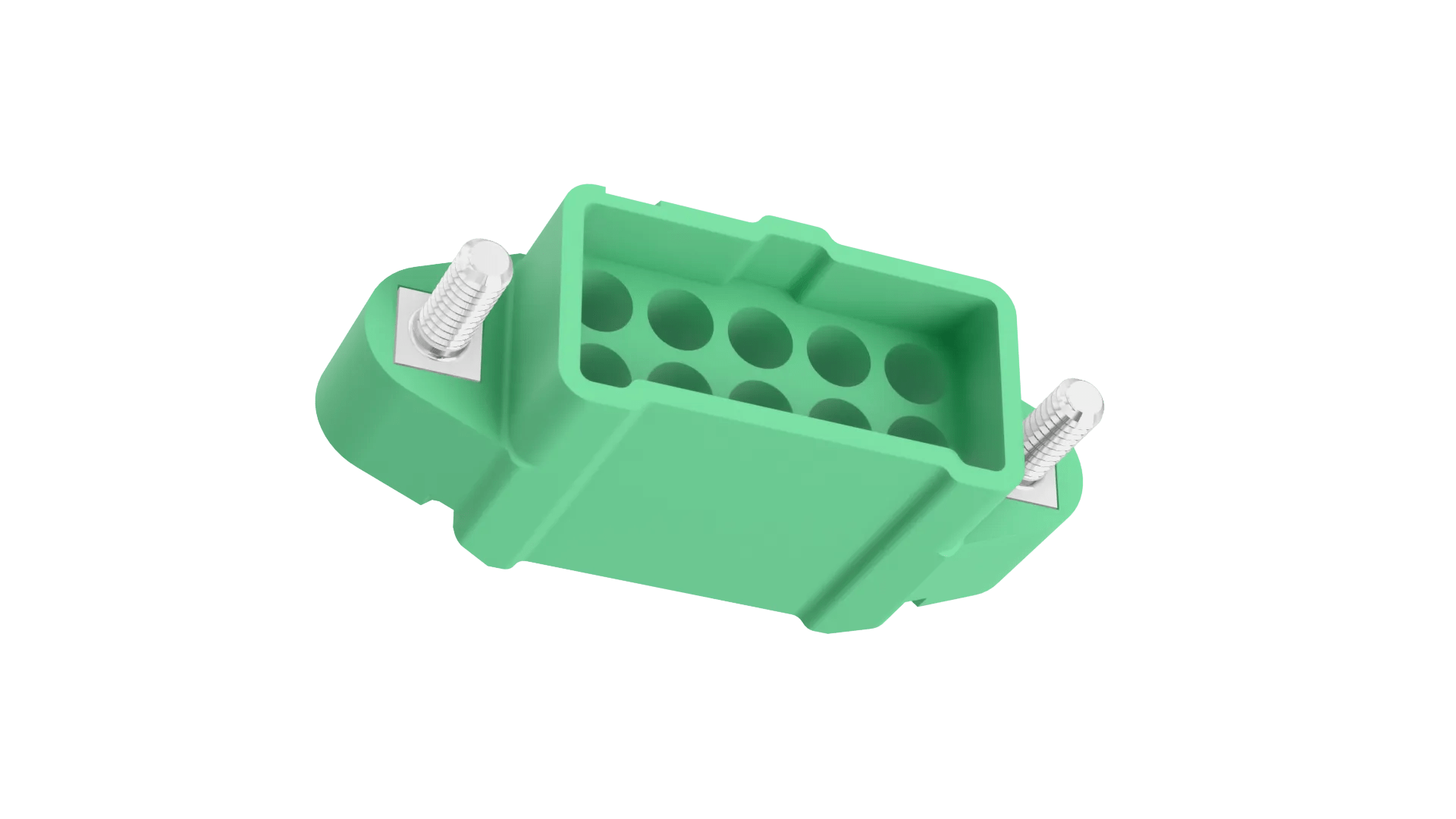

5+5 Pos. Male DIL Cable Housing, Jackscrew Panel Mount

3.00mm Pitch High-Reliability Connector - M300

Order Sample

Add to Favorites

Made to order

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row Polarized Male Housing, Jackscrews with 5mm panel mount studs and rear potting area – 10 contact (5+5). Contacts to be purchased separately.
Use with crimp contacts M300-1010045 or M300-1020045. Use with slotted nuts M80-2130000B or hexagonal nuts M80-2430000B for front panel mounting.
For complete pin numbering or pin out information, see Component Specification C048XX.

M300-3241096M2 - 5+5 Pos. Male DIL Cable Housing, Jackscrew Panel Mount

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Internal Thread Jackscrew with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.924g

Overall Dimensions (L x W x D) in mm:

27.30 x 9.00 x 12.00

Thread Size:

Mating Profiles:

Catalog page - M300 Mating Profiles, Pin Numbering

Frequently Asked Questions Ask a Question

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).

Was this answer useful?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

Was this answer useful?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.

Was this answer useful?
